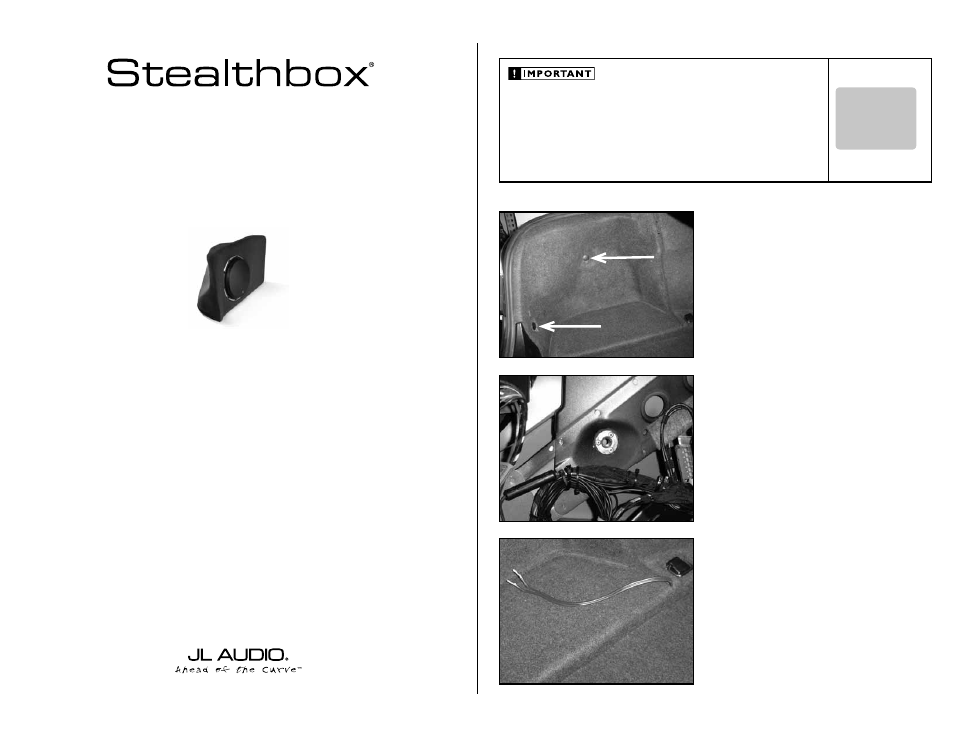

I N S T A L L A T I O N G U I D E

for the

SB-B-5SER/12W6v2

2004 - Up 5 Series

Thank you for choosing a JL Audio Stealthbox

for your automotive sound system. With proper

installation, your new vehicle-specific enclosed subwoofer system will deliver years of listening pleasure.

We strongly recommend that you have your new Stealthbox

installed by your authorized JL Audio

dealer. The installation professionals employed by your dealer have the necessary tools and experience

to disassemble and reassemble your vehicle properly. Also, keep in mind that your warranty coverage

extends to 2 years if your system is installed or approved by your authorized JL Audio dealer. If you

prefer to perform your own installation, please read this installation guide completely

before beginning the process.

If you choose to perform the installation yourself, it is absolutely vital that
the Stealthbox

be properly mounted to the vehicle according to these

instructions. Failure to mount the enclosure properly presents two problems:

1) The sub-bass performance will suffer due to the movement of the enclosure
caused by the force exerted by the woofer(s).

2) A loose enclosure presents a serious safety hazard in the event of a collision
or sudden deceleration.

S T E P 1
Remove all contents from the trunk.

Remove the two plastic clips from the driver’s side of the
trunk, that are indicated by the arrows in the picture.

Remove this side panel from the trunk.

Continued on Next Page

S T E P 2
Place the supplied weld nut into the same mounting hole as
the side position factory clip that was removed
in STEP 1.
Mark the three holes from the flange of the weld nut onto
the factory metal pane. Remove the weld nut.

With a 1/8-inch drill bit and drill. Drill out the metal panel at
the marked locations. You are close the outside sheet metal,
use care when drilling through the metal.

Secure the threaded insert with the three supplied rivets.

S T E P 3
Run speaker wire from the amplifier location to the
Stealthbox® location.

SB-B-5SER/12W6v2_INSTR_SKU#011233

INSTALLATION
D I F F I C U L T Y :

OUT
OF

ESTIMATED TIME:
1 HOUR

1 HOUR

Side Clip

Rear Clip
