E17
2. 2.

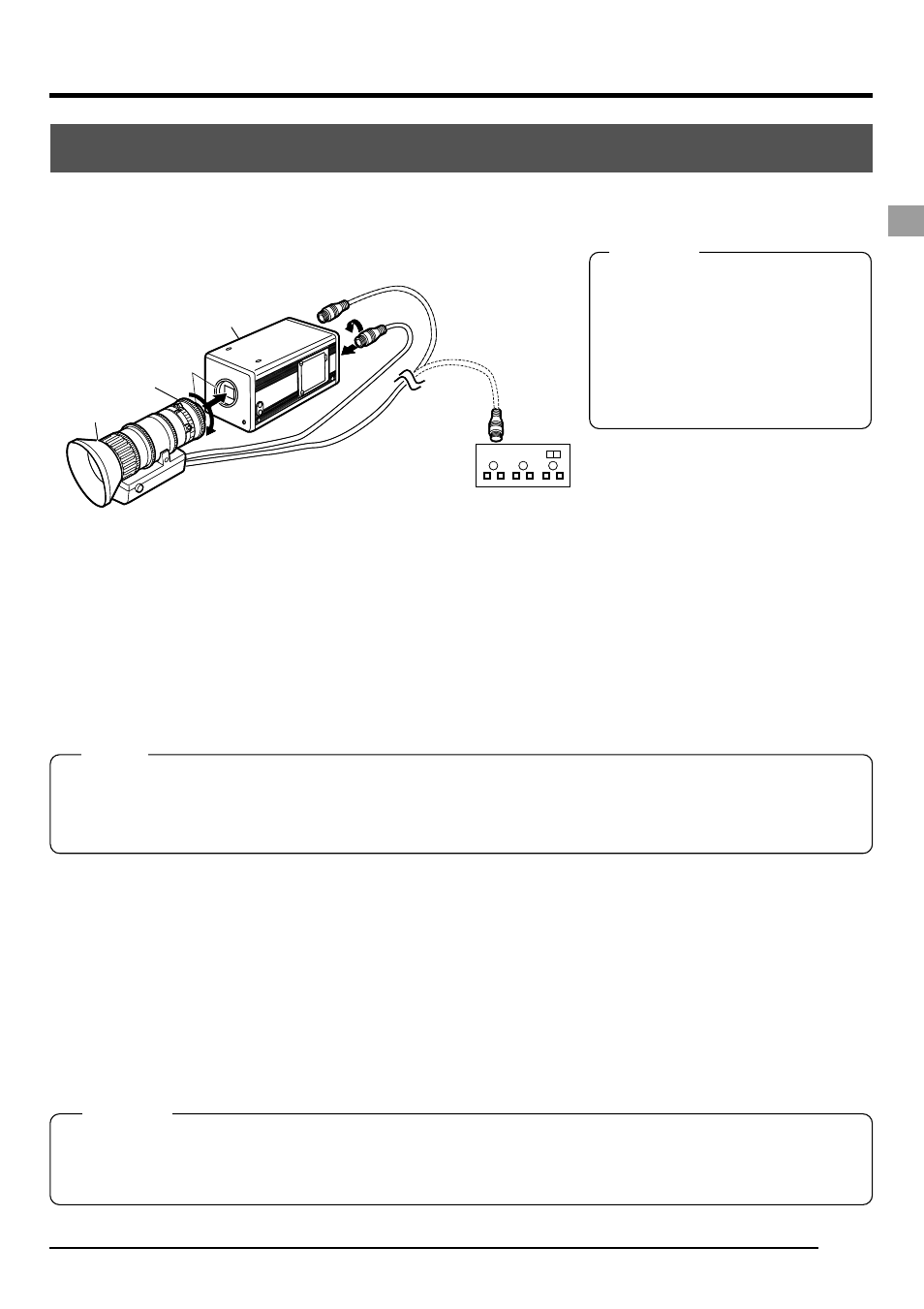

Mounting the lens
Follow the procedure shown below when mounting a motorized lens. For further details, see the
instruction manual of the lens and lens remote control.
Camera head
Thread section
Mount clamp ring
Lens
(Male)
Lens remote control
Compatible lens
remote controller
FJINON, RMD-10,
RMD-20
Compatible
zoom lens
D16
×
7.3A-D29
1.
Remove the lens mount cap. At this time, take caution so that dust do not enter inside the
mount.
2.
To mount the lens, lightly press the thread section of the lens mount onto the thread section
of KY-F1030, then turn the lens unit or KY-F1030 slowly clockwise until it is securely tight-
ened.
MEMO
To change the position of the lens rotation:
ቢ
First, turn the mount clamp ring clockwise (1/4 turns) with the lens facing you.
ባ
Slowly turn the lens and after adjusting the position, retighten the mount clamp ring.
3.
Insert the camera cable of the lens into the [LENS] connection terminal on the rear of KY-
F1030, then securely lock.
The iris control is made from the KY-F1030.
4.
When using the lens remote controller, connect the lens control cable (female) to the re-
mote control. Also, when focusing and zoom controller is to be performed on the KY-F1030,
connect the lens control cable (female) to the [MD CONTROL] terminal on the KY-F1030.
When operating the lens iris manually by lens remote control connection, set IRIS MODE to
manual. (
੬
page E33)
CAUTION
• Perform mounting of the lens
with the power of the camera
turned OFF. Mounting with the
power on could result in dam-
age.
• Lens is not included with this
unit.
3.
Lock
4.
Lock
Lens remote controller
4.
[MD CONTROL] connector
CAUTION
When using a motorized lens, use the AC adapter as power supply for the KY-F1030.
If power is supplied via the [IEEE1394] connector, control of the motorized lens is not possible from the
KY-F1030.
(Female)
