Part names and their functions (continued)
ƺ
[MENU] button
Press this button to output the menu screen
through the [ANALOG OUT] connector
ᕦ
.
Press again to stop display of the menu.
Setting procedure (
੬
page E32)
ƻ
[UP/AW] auto white balance, UP
button
●
[AW (auto white)]
Press this button to adjust the white bal-
ance when the light source illuminating
the subject changes.
White balance adjustment (
੬
page E22)
●
[UP]
While the menu screen is displayed,
press this button to move up to a select-
able item on the menu. While an item is
selected, use this button to change the
set value.
Setting procedure (
੬
page E32)

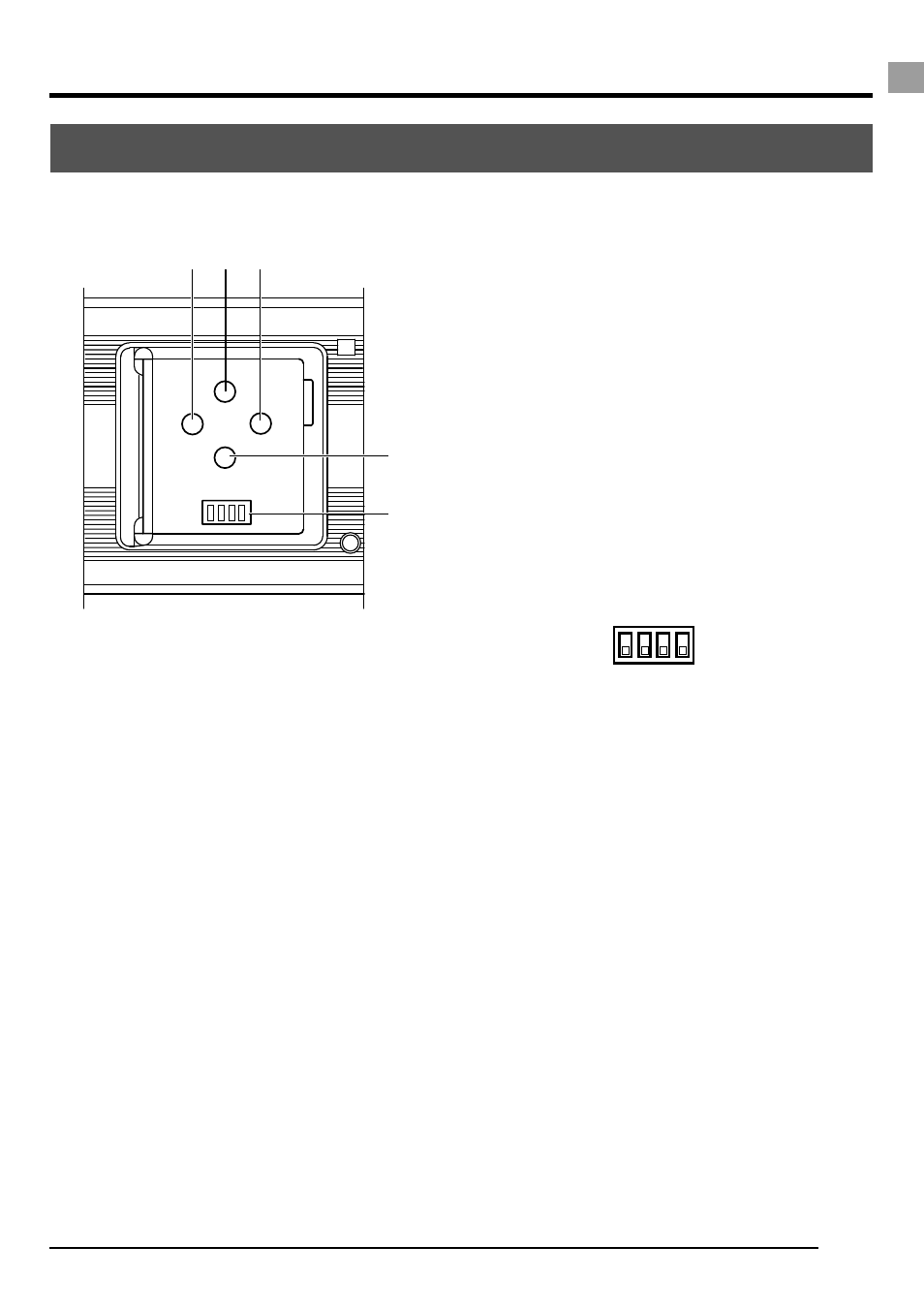

[Side switch panel section (inside)]
Ƽ
[SET] button
While the menu screen is displayed, press
this button to select a submenu or confirm
a selected item or set value.
Setting procedure(
੬
page E32)
ƽ
[DOWN] button
While the menu screen is displayed, press
this button to move down to a selectable
item on the menu. While an item is selected,
use this button to change the set value.
Setting procedure(
੬
page E32)
ƾ
Function setting switch
Used for setting the functions of the KY-
F1030.
●
Switch 1
ON: Test signal is output.
OFF: The image being shot by the cam-
era is output.
Monitor adjustment (
੬
page E21)
SYSTEM SETTING screen (
੬
page E40)
●
Switch 2
ƺ
.
OFF: Enables the [MENU] button
ƺ
.
●
Switch 3
ON: Applies the sync signal to the green
(G) channel of the video signal that
is output through the ANALOG
OUT connector
º
.
OFF: The sync signal is not applied.
●
Switch 4
This switch is not used. Leave it at OFF.
UP/AW
SET MENU
DOWN
1 2 3 4
ƺ ƻ Ƽ
ƽ
ƾ
ON
OFF
1 2 3 4
