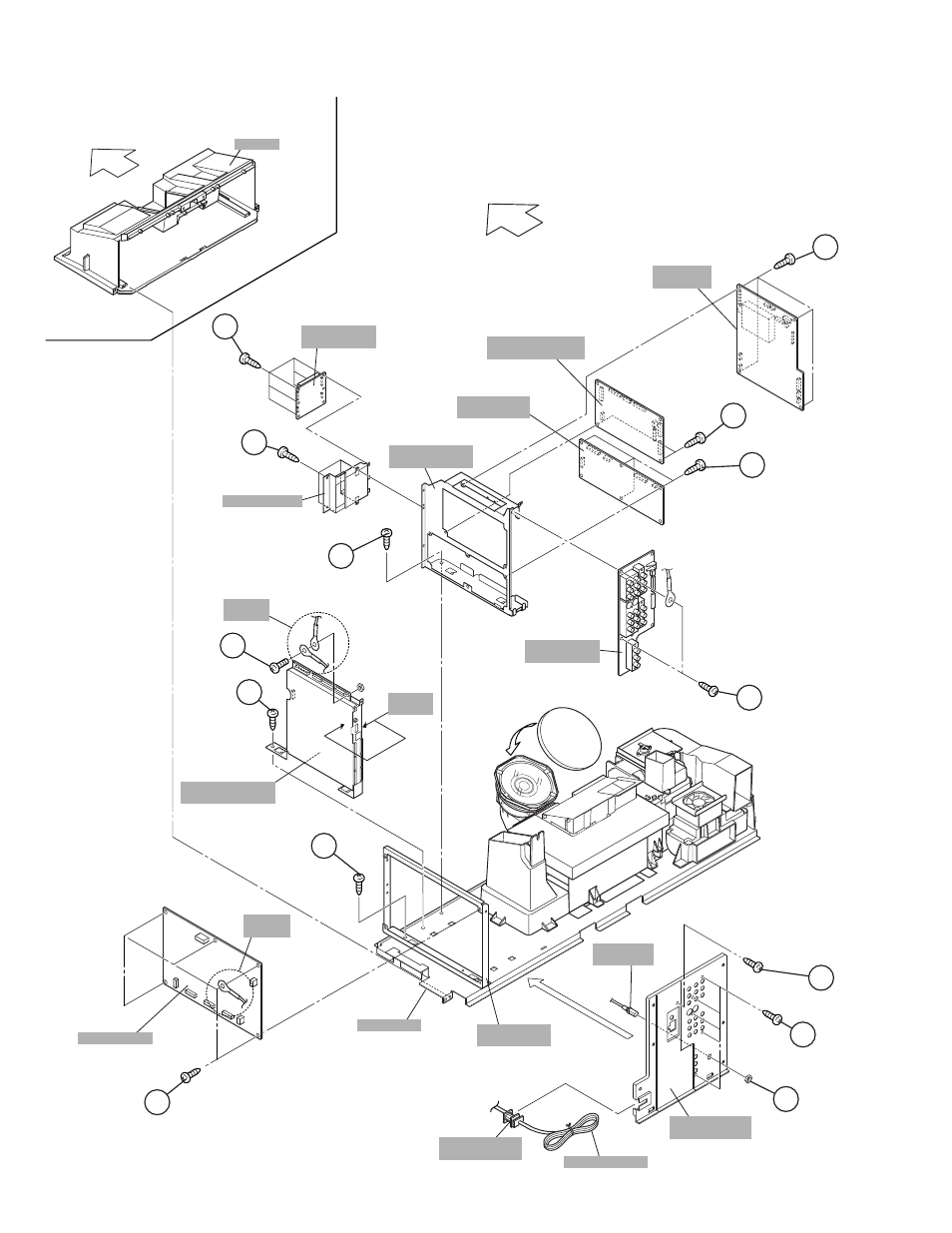

1-16 (No.YA092B)
FRONT
POWER CORD
POWER PWB
POWER PWB
BRACKET
UNIT BASE
DIGITAL SIGNAL
PWB
REGULATOR
PWB
ANALOG PWB
BRACKET
ANALOG SIGNAL
PWB
RECEIVER
PWB
SUB DRIVE
PWB
PWB HOLDER
REAR JACK
PWB
ANTENNA
TERMINAL
AV TERMINAL
BOARD
EARTH
WIRE
POWER CORD
CLAMP
EARTH
WIRE
SHIELD
COVER
FRONT
BODY
A
B
C
D
J
E
K
(x2)
(x4)
(x2)
(x1)
(x5)
(x1)
(x1)
(x4)
(x6)
(x4)
L
M
N
F
G
(x5)
(x1)
(x1)
(x1)
I
H
