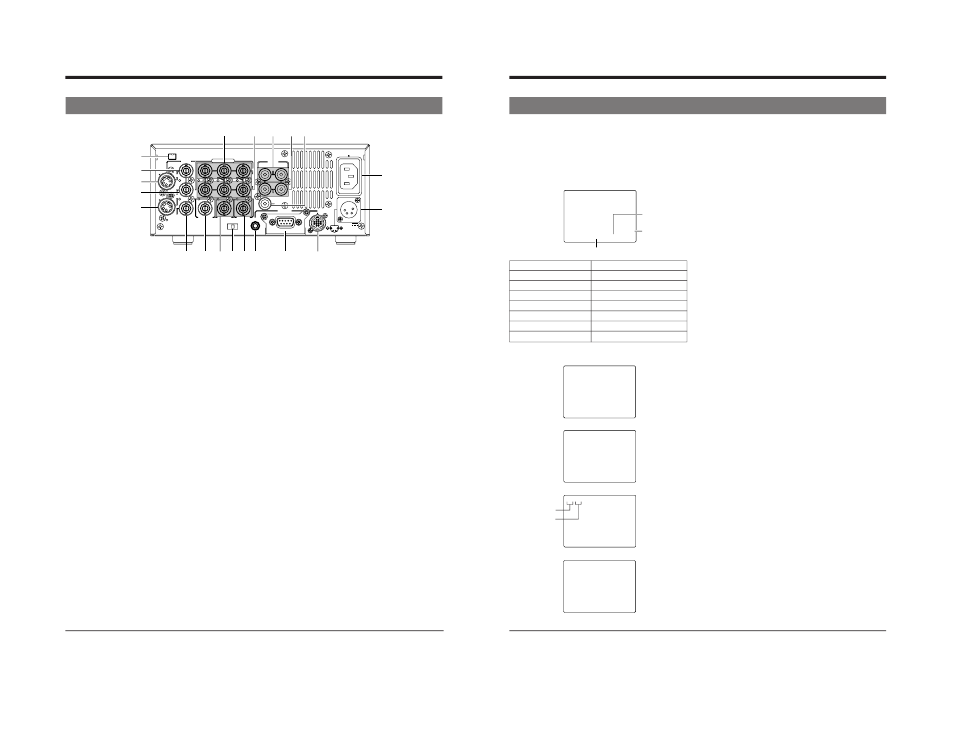

2-2 Rear Panel
2 CONTROLS, CONNECTORS AND DISPLAYS
DC 12V
PGZ01945
TIMER
TIME CODE SPARE
COMPONENT VIDEO
SYNC IN
REC
OFF
PLAY
DV
IN/OUT
REMOTE
AUDIO
2 1
SERIAL
CH 1/3
OUT
OUT
IN
IN B-Y IN
Y/C
LINE
OUT
OUT
MONITOR
CH 2/4
MONITOR OUT
R-Y
Y
1
2
7 8 6 0
!
9 5 4 3
#
@
$
%
^ & ( ) *
0 [VIDEO MONITOR OUT] connector
Connect a video monitor to check the output video or
on-screen display from this unit.
! [Y/C OUT] connector
Outputs Y/C signals.
@ [LINE OUT] connector
Outputs composite signals.
# [Y/C IN] connector
Receives Y/C signals.
$ [LINE IN] connector
Receives composite signals.
% [DV IN/OUT] connector
Outputs or receives IEEE 1394 standard digital signals.
In addition to digital video and audio signals, control
signals can be input or output to/from a personal
computer provided with the DV connector (i.LINK), etc.
^ [COMPONENT IN] connectors
Receive component signals.
The signal level is for Betacam specifications.
& [COMPONENT OUT] connectors
Output component signals.
The signal level is for Betacam specifications.
* [AUDIO IN] connectors
Receives audio signals (analog).
( [AUDIO OUT] connectors
Outputs audio signals (analog).The output audio
channel can be selected with the
8 [AUDIO OUTPUT]
switch on the front panel.
੬ See “Audio system connections” on page 12.
) [AUDIO MONITOR OUT] connector
Connect to the audio input of a TV monitor or audio
system. The audio channel to be monitored can be
selected with the
9 [AUDIO MONITOR OUT] switch.
1 AC socket
Connect the provided power cable to supply AC 120 V
(U MODEL), AC 220 – 240 V (E MODEL).
This unit can be activated automatically when power is
supplied according to the setting of
7 [TIMER] switch.
੬ See “EXTERNAL TIMER-START FUNCTION” on
page 26.
2 DC socket
Connect DC 12 V (XLR 4-pin).
This unit can be activated automatically when power is
supplied according to the setting of
7 [TIMER] switch.
੬ See “EXTERNAL TIMER-START FUNCTION” on
page 26.
3 [REMOTE] connector (JVC bus)
This unit can be controlled by the RM-G800 via this
connector.
4 [REMOTE] connector (RS-422 Serial Connector)
This unit can be controlled by an RS-422 controller.
This can be changed to an RS-232C interface if re-
quired. For details, contact your local JVC service
center.
5 [REMOTE] connector (SERIAL)
Connect a wired remote control such as the RM-G30 to
control this unit.
6 [SPARE] connector
This connector is empty and has no function.
7 [TIMER] switch
Use to select the timer operation.
REC : Timer recording
OFF : Timer function OFF
PLAY : Timer playback
੬ See “EXTERNAL TIMER-START FUNCTION” on
page 26.
8 [TIME CODE OUT] connector
Use to output time code signals.
9 [SYNC IN] connector
Input reference sync signals.
੬ See “Reference sync signal” on page 11.
