12

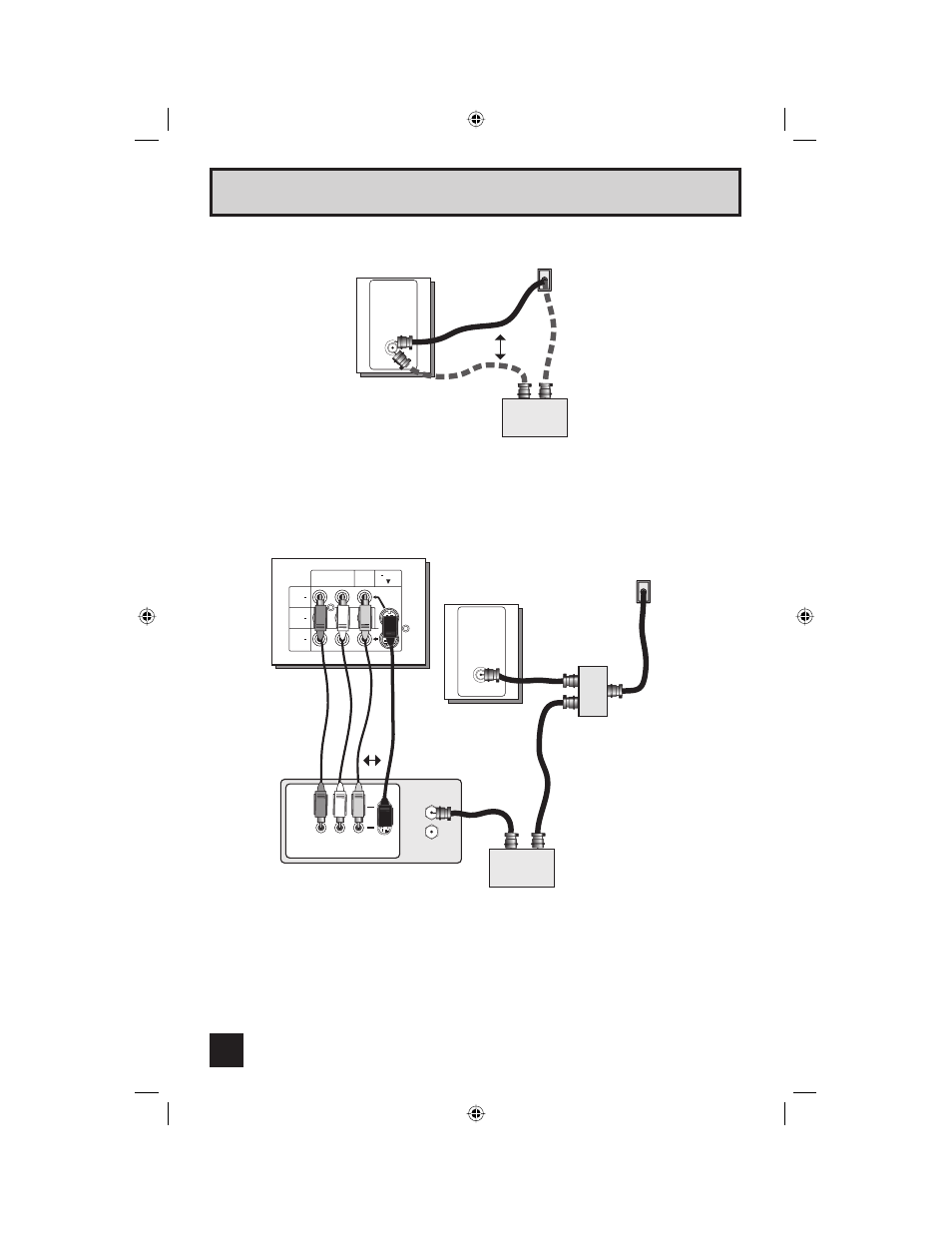

Quick Setup Connections
Notes:
• If your VCR is a mono sound unit, it will have only one audio out jack. Connect it to the
LEFT AUDIO INPUT on the front of the TV.
• Use the S-Video connection if possible for superior picture quality.
• Your VCR must be turned on to view premium cable channels.
75Ω
( VHF/UHF )
AUDIO
INPUT 2
VIDEO S VIDEO
R L
OVER
OVER
INPUT 3
INPUT 1
TV Rear Panel
OR
OUT IN
VCR
IN
OUT
IN
OUT R L V
IN
OUT OUT
Cable Box
Two-Way
Splitter
Coaxial Cable
Cable or Antenna
Output
Diagram #2
Note:
• If you do not have a cable box, connect the cable wire from the wall outlet into the back of
the TV.
75Ω
( VHF/UHF )
TV Rear Panel
Cable or Antenna
Output
Coaxial Cable
Cable Box
OR
OUT IN
Diagram #1
