INSTALLING YOUR NEW UNIT (cont.)
Component Video
Connection
(DVD deck only)
8To connect to a TV with component video input
connectors . . .
A
Connect the unit to TV.
A Connect the aerial, unit and TV as per “AV
Connection”. (
੬
pg. 14)
B Connect the unit’s COMPONENT VIDEO OUT
connectors to the TV’s component video input
connectors.
B
Connect the unit to power source.
Plug the end of the AC power cord into an AC outlet. This
unit performs Plug & Play Set automatically. (
੬
pg. 17)
● The clock and tuner channels will automatically be set when
the antenna is connected and when the AC power cord is first
connected to an AC outlet. (If “AUTO” and the channel
indicator are displayed on the front display panel before the
unit is powered on, the clock and tuner channels are being set
automatically. Wait for the time to be displayed on the front
display panel before turning on the unit.)
C
Set the VCR channel to off.
A Press POWER (1) to turn off the unit, then press
STOP ( 8) on the unit for more than 5 seconds. “3 CH”
appears on the front display panel.
B Press CH +/– on the Remote to select “– CH” (off),
then press OK.
NOTES:
● You can obtain high-quality component video pictures.
● If your TV is not stereo-capable, use the unit’s AUDIO
OUTPUT connectors to connect to an audio amplifier for
Hi-Fi stereo sound reproduction.
● To operate the unit with your TV using the Component Video
connection, set your TV to its AV mode. You can also use the
TV/VCR button on the unit’s Remote to set your TV to the AV
mode. (
੬
pg. 73)
● For switching the TV’s mode, refer to the instruction manual of
your television.
ATTENTION
Be sure to connect the unit’s VIDEO OUTPUT (DVD/
VCR) connector to the TV’s VIDEO input connector.

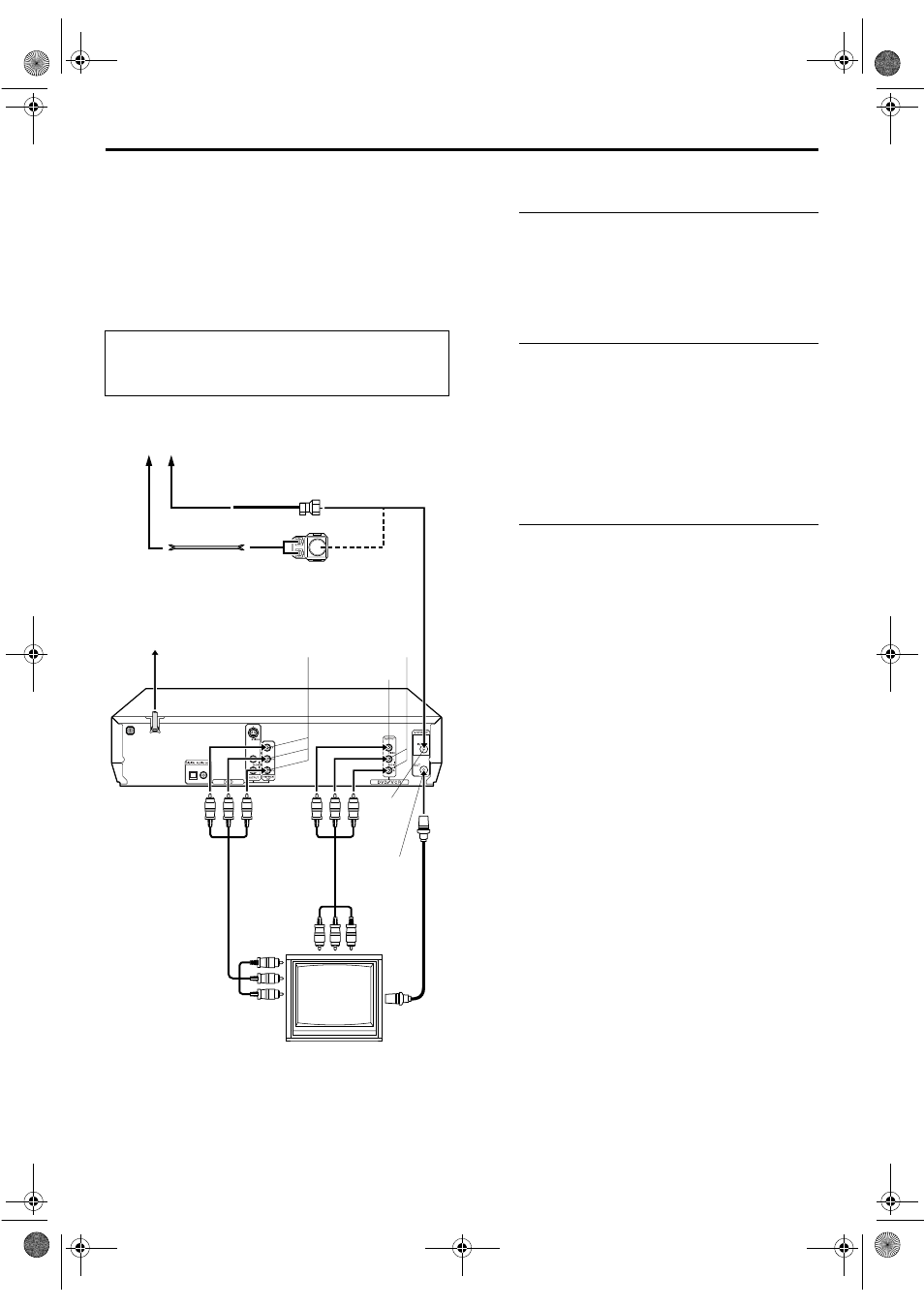

COAXIAL OPTICAL
