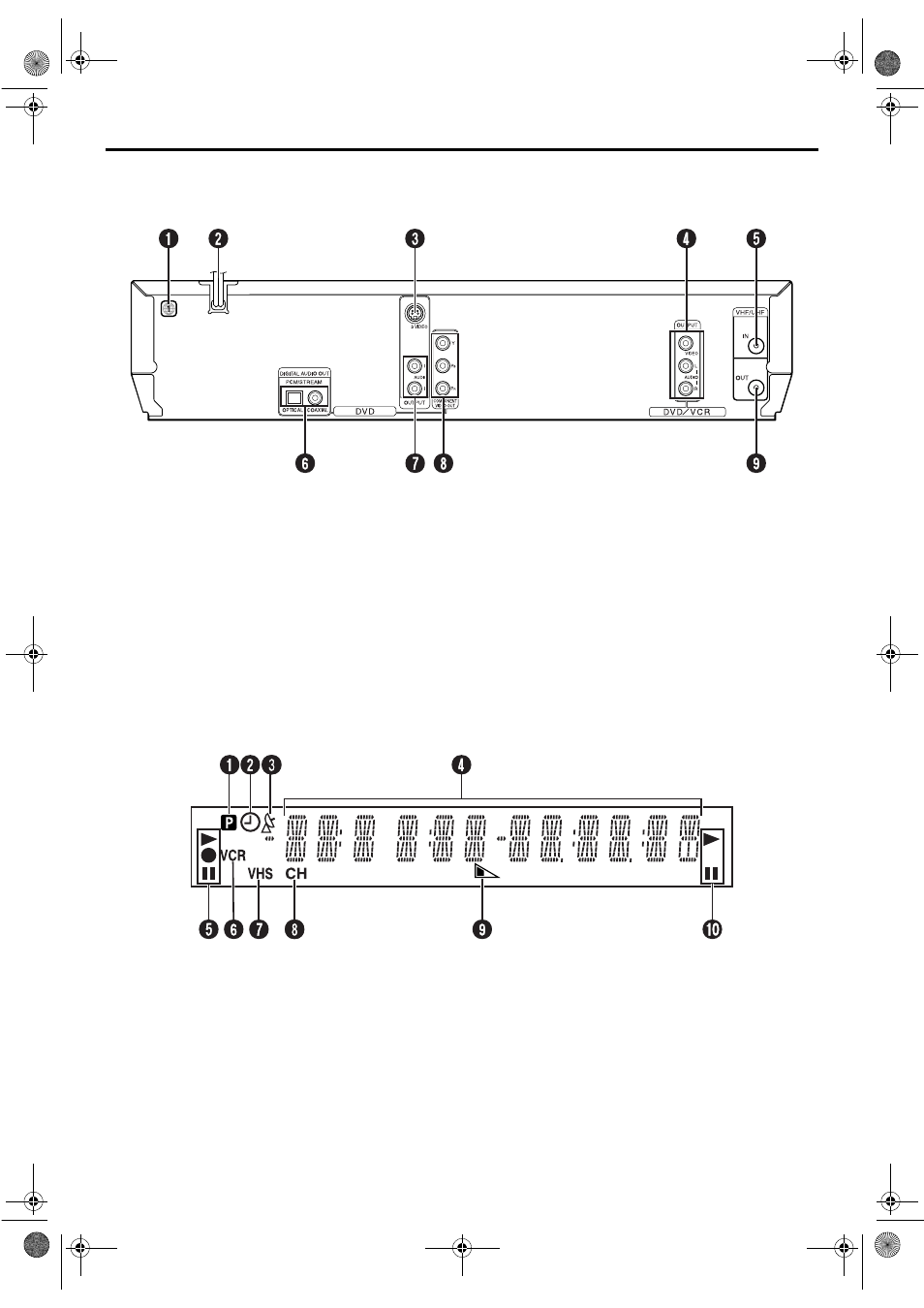

REAR VIEW
A Region Number Label ੬ pg. 7
B AC Power Cord ੬ pg. 14
C S-video Output Connector (S VIDEO OUTPUT)*
੬ pg. 15
* This connector is only for DVD deck only.
D Audio/Video Output Connectors (AUDIO/
VIDEO OUTPUT) ੬ pg. 14, 15, 16, 69
E Antenna Input Connector (VHF/UHF IN)
੬ pg. 14
F Digital Audio Output Connector
(DIGITAL AUDIO OUT) ੬ pg. 71
G Audio Output Connectors (AUDIO OUTPUT
(L/R))*
* These are analogue audio output connectors for DVD deck only.
H Component Video Output Connectors
(COMPONENT VIDEO OUT) ੬ pg. 16
I Antenna Output Connector (VHF/UHF OUT)
੬ pg. 14
FRONT DISPLAY PANEL
A Progressive Mode Indicator ੬ pg. 82
B “Timer” Indicator (VCR deck only) ੬ pg. 37
C Satellite Auto Recording Indicator (N) (VCR deck
only) ੬ pg. 41
D Channel/Clock
Mode Display (F-1) (VCR deck only)
Counter Display (VCR deck)
Tape Speed (SP/EP) (VCR deck only)
Multi-information window* (DVD deck)
* The current group/title/track/chapter number(s), time and status
information.
E VCR Mode Indicator
F VCR Indicator ੬ pg. 34
G Cassette Type Indicator (VCR deck only)
H Channel Mode Indicator (CH)
I Remain Display ੬ pg. 35
J DVD Mode Indicator
