JVC HR-A53U - Manual (Page 35)

35

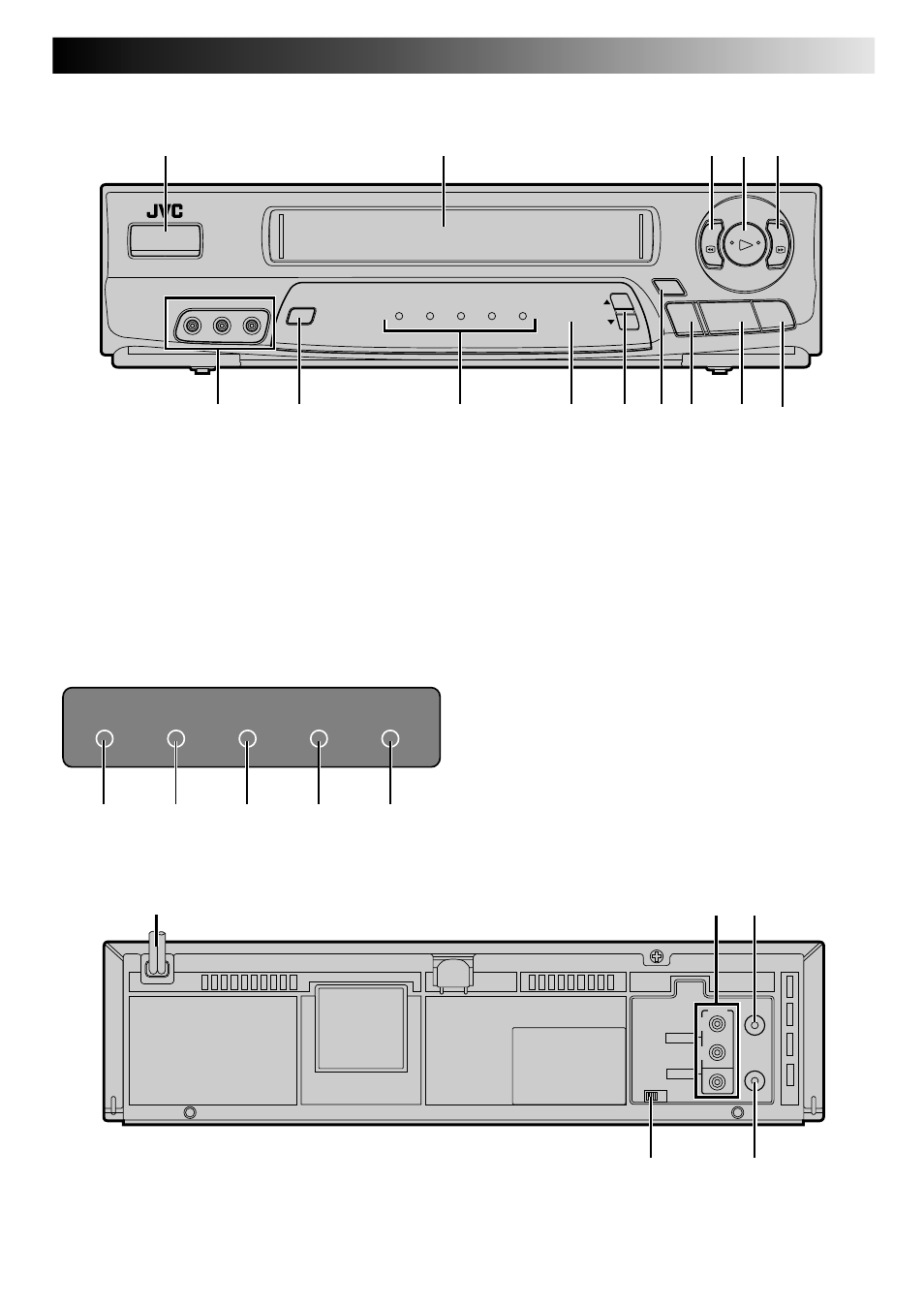

FRONT VIEW
1 Power On/Off Button (
੬
pg. 7)
2 Cassette Loading Slot
3 Rewind [REW] Button (
੬
pg. 12)
4 PLAY Button (
੬
pg. 12)
5 Fast-Forward [FF] Button (
੬
pg. 12)
6 VIDEO/AUDIO Input Connectors (
੬
pg. 30)
* The HR-A33U has only one AUDIO input connector.
7 MENU Button (
੬
pg. 7)
8 Front Panel Indicators (See below)
9 Remote Control Sensor
0 Channel [CH]
5∞ Button ( ੬
pg. 13)
! OK Button (
੬
pg. 7)
@ Record [REC] Button (
੬
pg. 13)
# STOP/EJECT Button (
੬
pg. 12)
$ PAUSE Button (
੬
pg. 14)
POWER
MENU POWER TIMER REC MTS
OK
REC
q
PLAY REW
2
FF
3
PAUSE
6
STOP/EJECT
5 / 8
TV/VCR VIDEO (MONO) L–AUDIO–R
CH
1
# @ ! 0 9 8 7 $
2 3 4 5
6
REAR VIEW
ANT. IN
RF OUT
CH3 CH4
OUT
R
L
AUDIO
VIDEO
1 2
4 5
3
1 Power Cord (
੬
pg. 6)
2 VIDEO/AUDIO Output Connectors (
੬
pg. 29)
* The HR-A33U has only one AUDIO output connector.
3 ANT. IN Connector (
੬
pg. 6)
4 Channel 3/4 Switch (
੬
pg. 6)
5 RF OUT Connector (
੬
pg. 6)
1 Power Indicator
2 VCR Mode Indicator (
੬
pg. 22)
3 Timer Mode Indicator (
੬
pg. 25)
4 Recording Mode Indicator (
੬
pg. 13)
5 Multichannel TV Sound Indicators
(HR-A53U only)(
੬
pg. 23)
FRONT PANEL INDICATORS
POWER TIMER REC MTS TV/VCR
2 3 4 5 1
