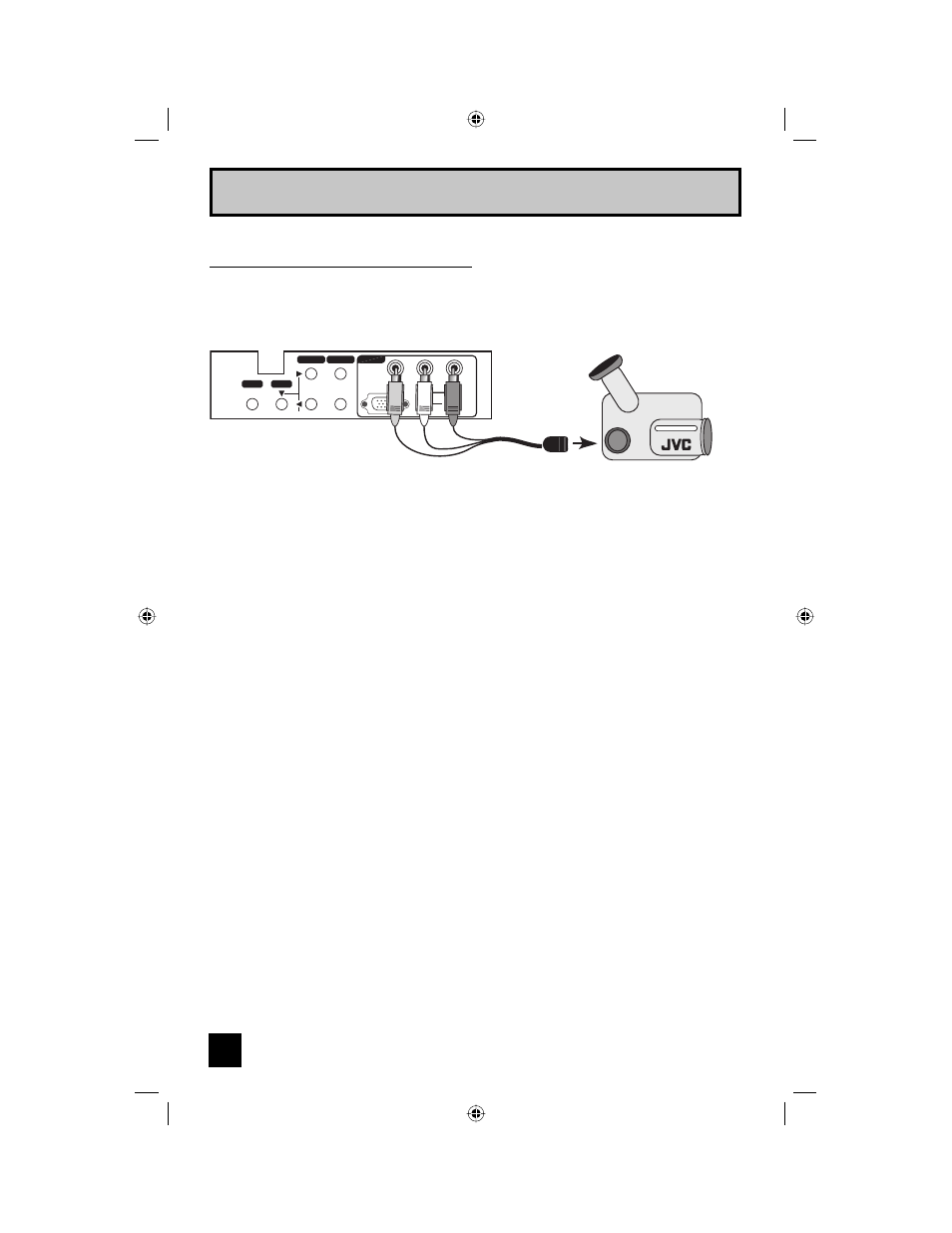

Quick Setup
1) Connect a yellow composite cable from the camcorder VIDEO OUT, into the VIDEO IN on
the front of the TV.
2) Connect a white cable from the camcorder LEFT AUDIO OUT, into the LEFT AUDIO IN on
the front of the TV.
3) Connect a red cable from the camcorder RIGHT AUDIO OUT, into the RIGHT AUDIO IN on
the front of the TV.
Note:
• If your camcorder is a mono sound model it will have only one AUDIO OUT. Connect it to the
L/MONO on the front of the TV.
You may connect a camcorder, game console or other equipment to your television by using
the front input jacks (INPUT-5) located under the front panel door. To access, push on the
door to open it. You can also connect these using the television’s side input jacks, using the
same instructions.
CAMCORDER
PC IN AUDIO
VIDEO L/MONO R
INPUT-5
+
–
+
–
VOLUME CHANNEL
INPUT MENU
OPERATE
TV Front Panel
Connecting to a Camcorder
