Removing - 5
REMOVING
Removing
Removing the Cultivator
1. Park the machine safely. (See Parking Safely in Safety
section.)
2. Lower the cultivator to the ground.

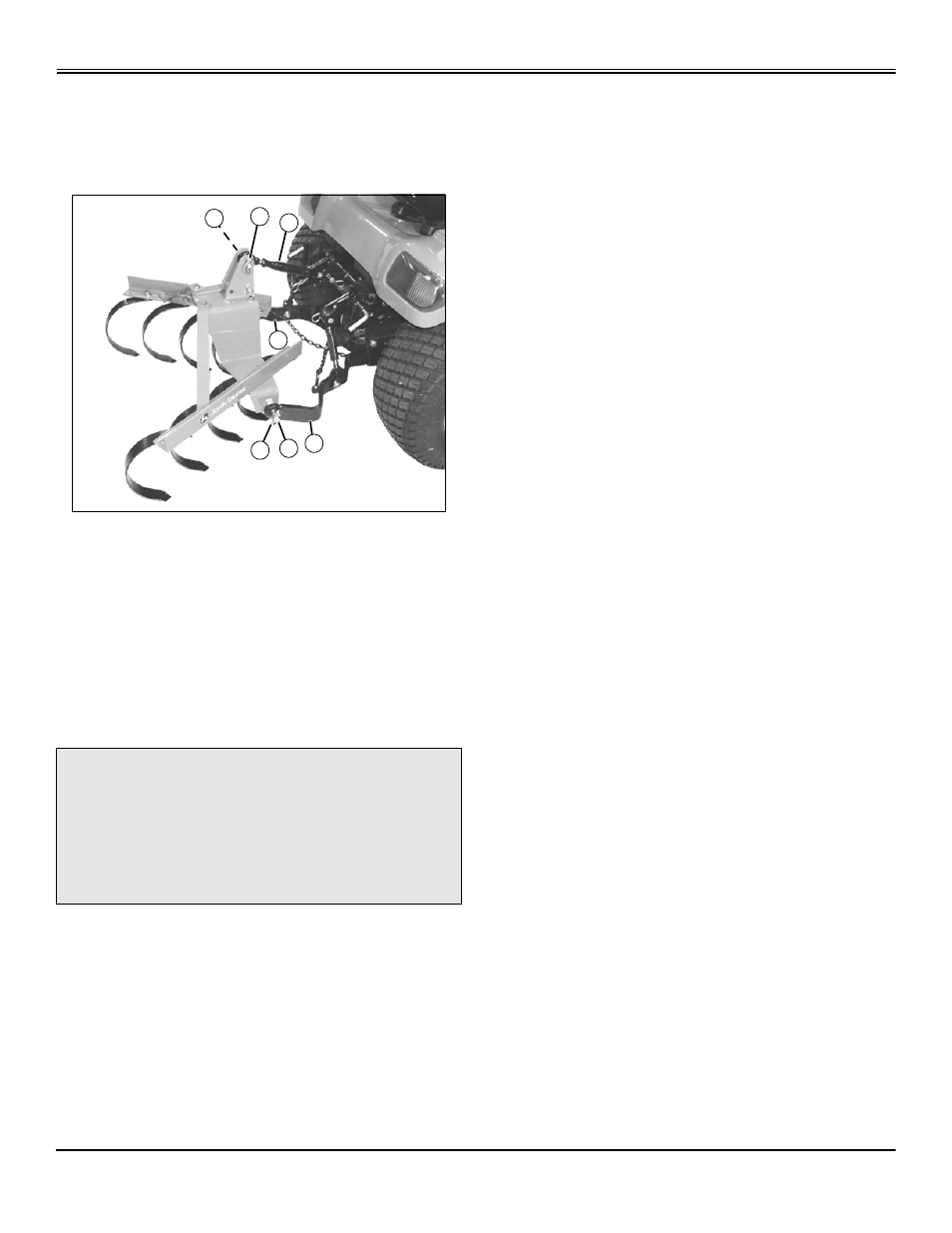

MX13247
3. Remove the quick-lock pin (A), link pin (B), and
disconnect the center link (C).
4. Install the link pin (B) and quick-lock pin (A) in the center
link for storage.
5. Remove the quick-lock pins (D) from the lower links
(E and F).
6. Pull the lower links (E and F) off the lower link pins (G).
7. Install the quick-lock pins (D) into the lower link pins (G)
for storage.
8. Remove any added ballast from machine.
c
CAUTION: Avoid injury!
When the attachment is removed, you must
also remove any ballast that was added to the
machine.
Use only attachments and accessories
recommended by the manufacturer.
