Serviceability (continued) 313 315
Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . computerized in-cab monitor information computerized in-cab monitor information
Filters
Engine Oil Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . horizontally mounted with integrated environmentally horizontally mounted with integrated environmentally
friendly drip tray friendly drip tray
Fuel Filter with Water Separator . . . . . . . . . . . . . . . . . . . . . vertically mounted vertically mounted
Secondary Fuel Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vertically mounted vertically mounted
Hydraulic Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-micron, vertically mounted 3-micron, vertically mounted
Return Oil Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-micron, spin-on enclosed replaceable element 3-micron, spin-on enclosed replaceable element
Sight Gauges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . hydraulic reservoir hydraulic reservoir
Refi ll Capacities
Fuel Tank . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17.5 gal (66 L) 17.5 gal (66 L)
Cooling System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 qt. (6.2 L) 7 qt. (6.2 L)
Engine Oil with Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9.5 qt. (9 L) 9.5 qt. (9 L)
Hydraulic Fluid (refi ll) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 gal. (19 L) 5 gal. (19 L)
Chain Case (per side) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.9 gal. (14.8 L) 4.3 gal. (16.3 L)
Operating Weights
Base Machine. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5,150 lb. (2338 kg) 5,200 lb. (2361 kg)

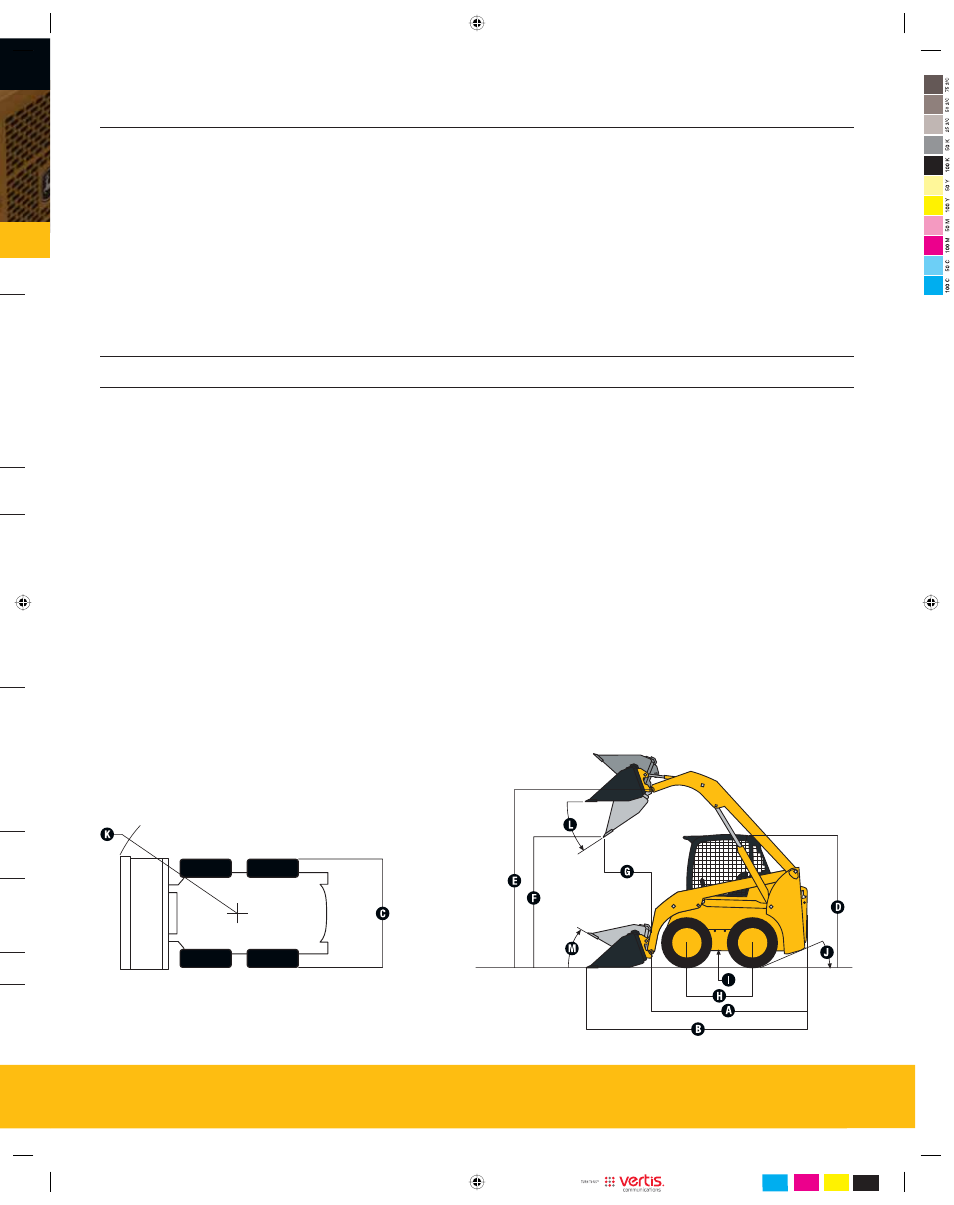

Machine Dimensions
A Length without Bucket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 ft. 0 in. (2.44 m) 8 ft. 5 in. (2.57 m)
B Length with Bucket (60-in. foundry) . . . . . . . . . . . . . . . . . . . 10 ft. 4 in. (3.14 m) 10 ft. 9 in. (3.27 m)
C Width without Bucket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 ft. 11 in. (1.50 m) 4 ft. 11 in. (1.50 m)
Equipped with Optional 7 x 15 Tires . . . . . . . . . . . . . . . 4 ft. 8 in. (1.47 m) 4 ft. 8 in. (1.47 m)
D Height to Top of ROPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 ft. 5 in. (1.96 m) 6 ft. 5 in. (1.96 m)
E Height to Hinge Pin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 ft. 1 in. (2.77 m) 9 ft. 7 in. (2.91 m)
F Dump Height . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 ft. 0 in. (2.13 m) 7 ft. 5 in. (2.26 m)
G Dump Reach
Foundry Bucket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17.4 in. (442 mm) 15.8 in. (401 mm)
Construction Bucket . . . . . . . . . . . . . . . . . . . . . . . . . . 23 in. (0.58 m) 21 in. (0.54 m)
H Wheelbase . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 ft. 2 in. (0.95 m) 3 ft. 5 in. (1.04 m)
I Ground Clearance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7.6 in. (193 mm) 7.6 in. (193 mm)
J Angle of Departure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 deg. 23.5 deg.
K Front Turn Radius . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 ft. 2 in. (1.89 m) 6 ft. 4 in. (1.93 m)
L Dump Angle (full lift height) . . . . . . . . . . . . . . . . . . . . . . . . . 40 deg. 40 deg.
M Bucket Rollback (ground level) . . . . . . . . . . . . . . . . . . . . . . . 30 deg. 30 deg.
Maximum Reach with Arms Parallel to Ground . . . . . . . . . . . 3 ft. 11 in. (1196 mm) 3 ft. 11 in. (1196 mm)
Tipping Load . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2,525 lb. (1146 kg) 3,000 lb. (1362 kg)
SAE Rated Operating Capacity . . . . . . . . . . . . . . . . . . . . . . . 1,260 lb. (572 kg) 1,500 lb. (681 kg)
With Counterweight . . . . . . . . . . . . . . . . . . . . . . . . . . . 1,400 lb. (636 kg) 1,650 lb. (749 kg)
Boom Breakout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2,800 lb. (1271 kg) 3,900 lb. (1771 kg)
Bucket Breakout Force
Foundry Bucket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3,300 lb. (1498 kg) 3,300 lb. (1498 kg)
Construction Bucket . . . . . . . . . . . . . . . . . . . . . . . . . . 2,178 lb. (989 kg) 2,440 lb. (1108 kg)
