45
Connecting Your Devices

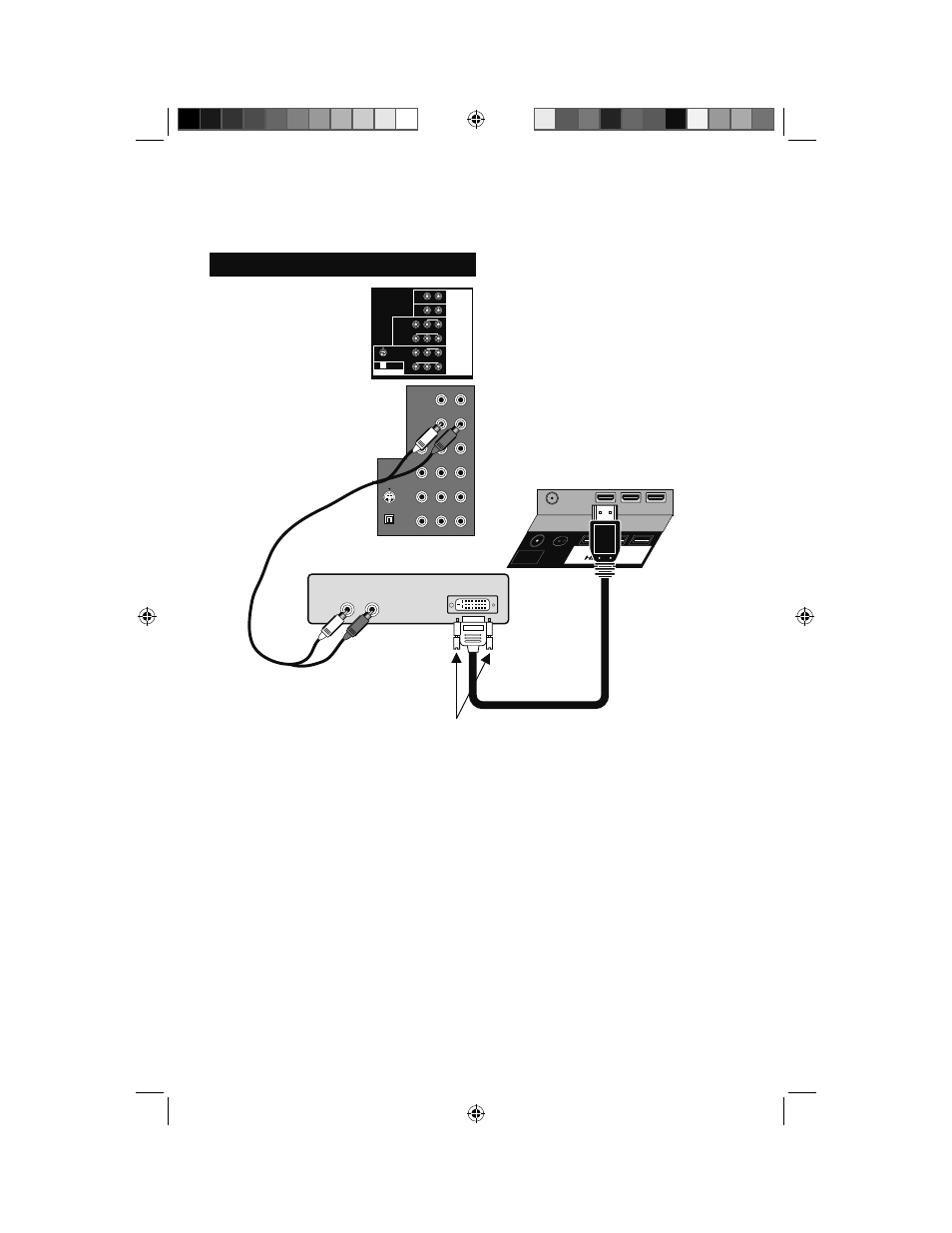

Connect a Digital Source Device
Notes:
• To watch your digital source device, make sure your TV is displaying INPUT 1 by pressing the
V1 button on your remote control.
• This TV can accept 480i, 480p, 720p, 1080i and 1080p signals via HDMI.
• The INPUT 1 HDMI ANALOG AUDIO input can only be used with INPUT 1.
INPUT 1 INPUT 2 INPUT 3
75 Ω
(VHF/UHF)
TV Rear Panel (INPUT 1)
Digital Source Device
TV Rear Panel
INPUT 1
HDMI ANALOG
AUDIO
After the connections have been made,
tighten the screw to secure the cables.
DIGITAL OUT L R
AUDIO OUT
L
L
L
P B
L
PB
R
R
R
P R
R
PR
VIDEO
Y
VIDEO
Y
AUDIO
COMPONENT
AUDIO
COMPONENT
AUDIO OUT
INPUT 1 HDMI ANALOG AUDIO
INPUT 5
INPUT 4 S-VIDEO
DIGITAL AUDIO OPTICAL OUT
