To prevent an accidental fall

Fix the monitor to a wall by using strings.

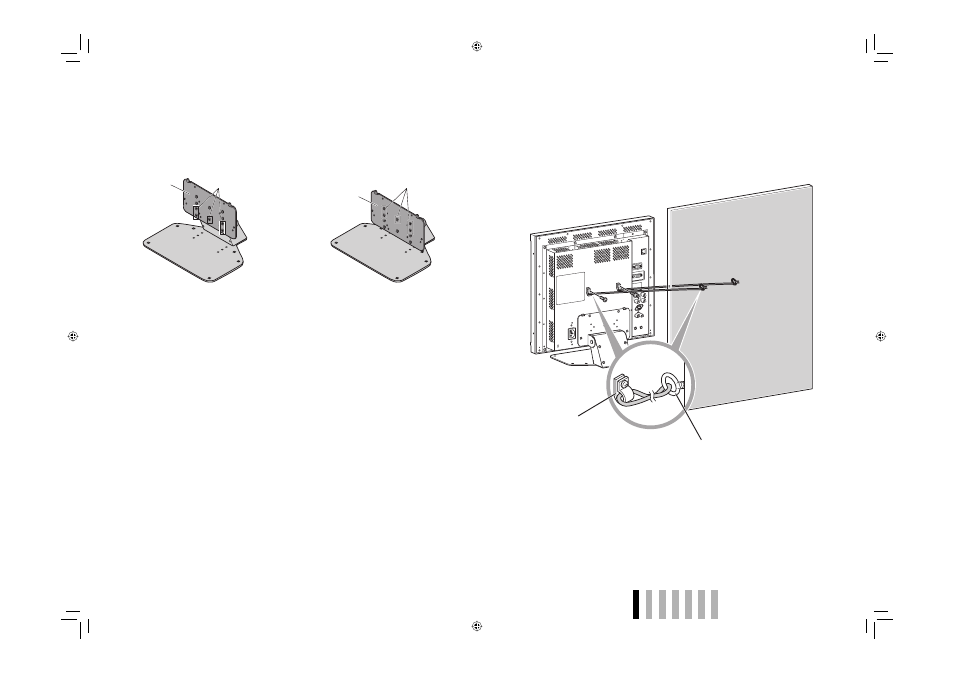

Fixing the monitor
Attach the hook (not provided) to the VESA mounting holes on the rear panel using M4 x 10 mm
screws (not provided). Bind the hooks on the rear panel of the monitor to a wall or a pillar using
durable string.

Hook and screws (M4 x 10 mm)

(not provided)

Hook (not provided)

To adjust the stand height

To change the stand height, change the position of the stand plate as illustrated below after
detaching the stand from the monitor.
• For detaching the stand, see “To detach the stand” on page 4.

Screw holes for higher
position

Screw holes for lower
position

Stand plate

The illustration of the monitor
is of LM-H191.
