Appendix G 41
IIT Camera System Manual

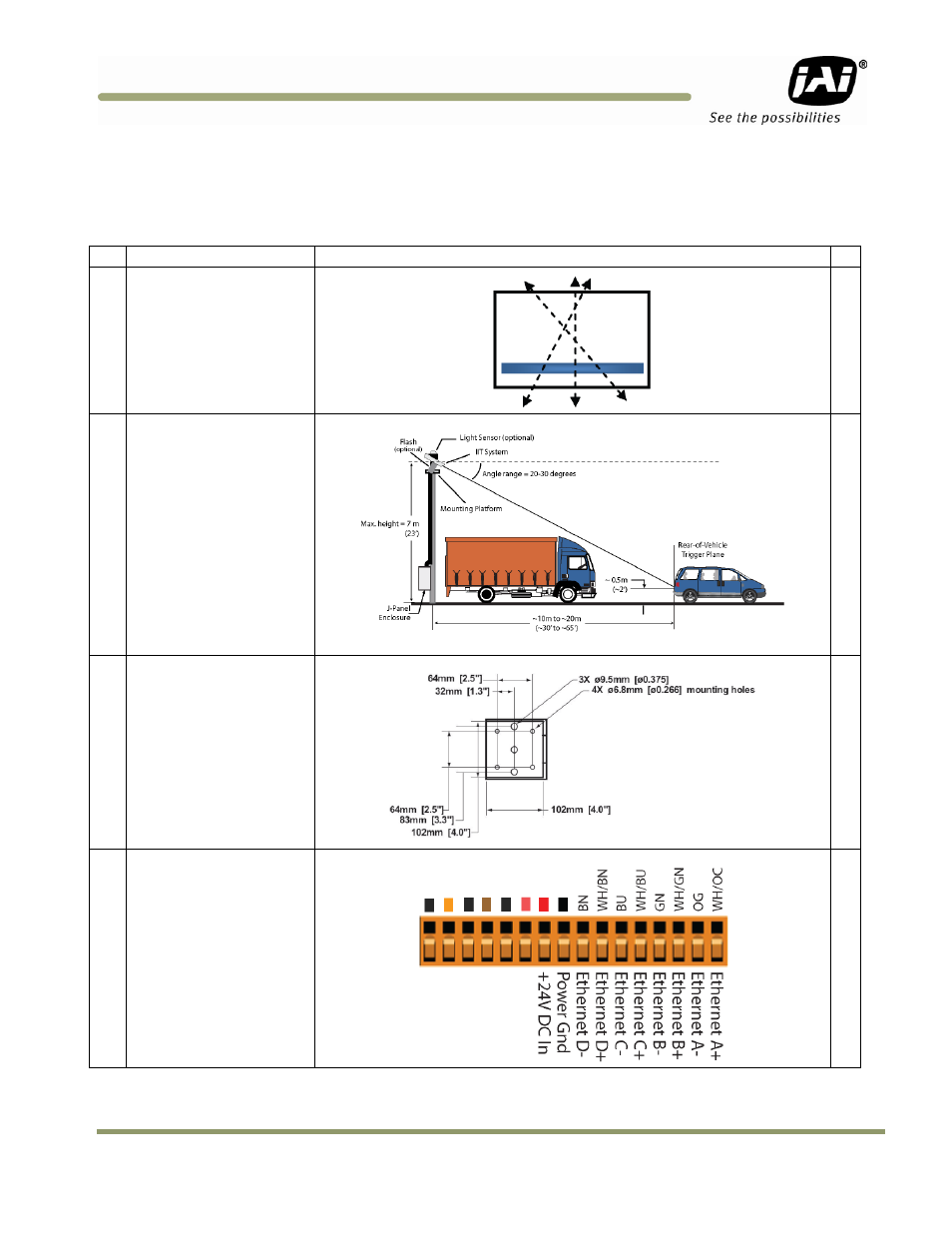

10 Appendix F: Quick Start Guide
# Description Illustration 3
1
Find a place to mount
the camera in a position
where the vehicles will
be passing through the
reflection sensitive part
of the picture
Sec. 1.5
2
Make sure that the
geometry is correct:
¾ Max height 7m
¾ Angle 20° — 30°
¾ Distance from
camera to
vehicle license
plate 10—20m
Sec. 2 Note: With any configuration, the distance in between camera and license plate must be 10m and 20m
3
Mount the camera
physically using the VIS
Mount (drill template
shown) and draw the
cables
Sec. 3
4
Connect supply voltage
wires and Ethernet to
X2 (Ethernet pairs C and
D can be omitted)
Sec. 3.2
