JAI IIT Camera Systems VIS-CAM 400 - Manual (Page 28)

IIT Camera System Manual
28 System Set-Up

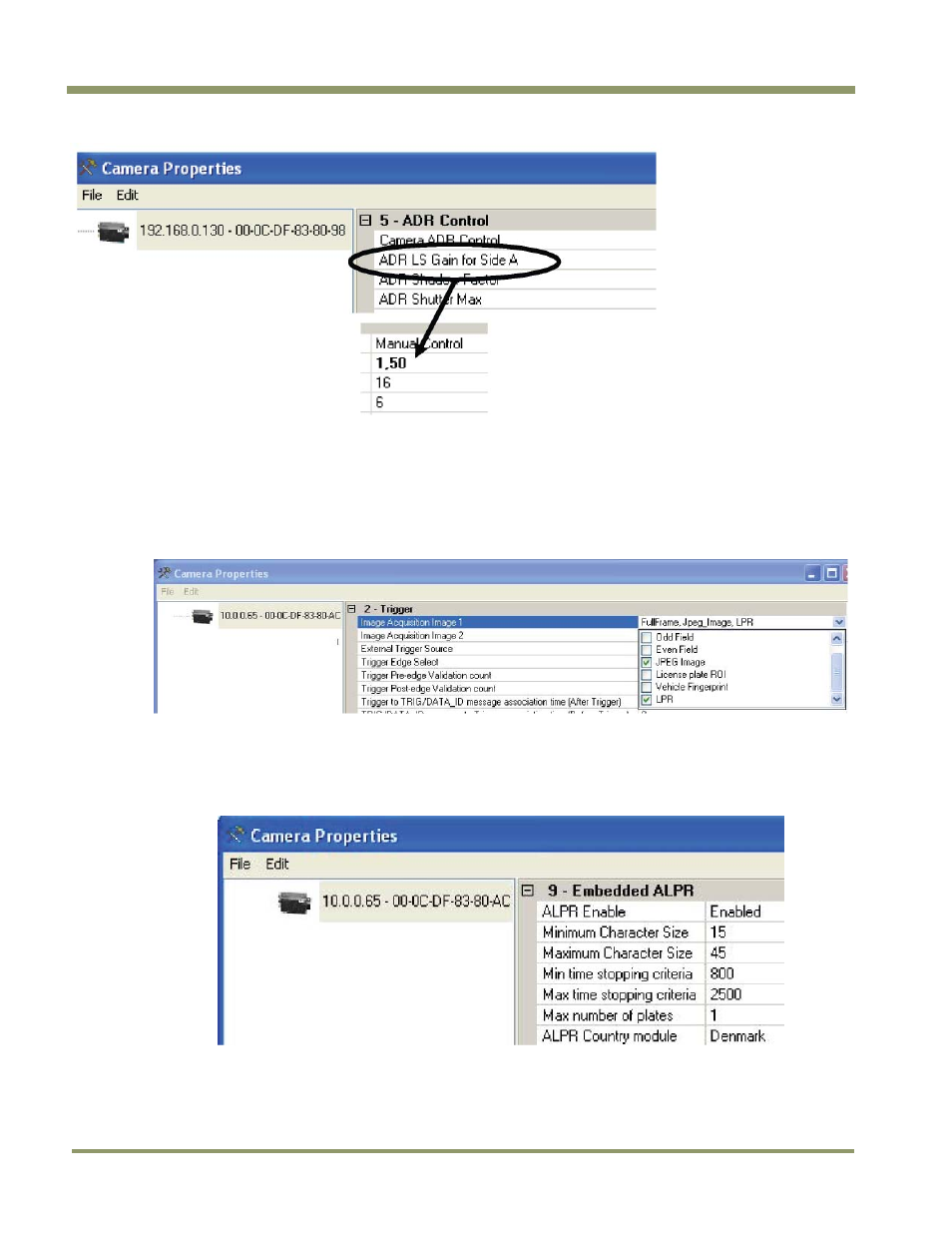

Figure 22. Set the value to 1.50 by manually typing the value
4.3 Settings for built-in Automatic License Plate Reader (ALPR)
4.3.1 ALPR Parameters
If the camera was purchased with built-in ALPR reader, the parameter set up is described below.
Figure 23. Image Acquisition Image 1
The LPR box is found by scrolling the bar on the right side all the way down.
The configuration of the built-in ALPR is found in the Properties section 9.
Figure 24. Embedded ALPR section
The field ALPR Enable must be set to “Enabled”.
