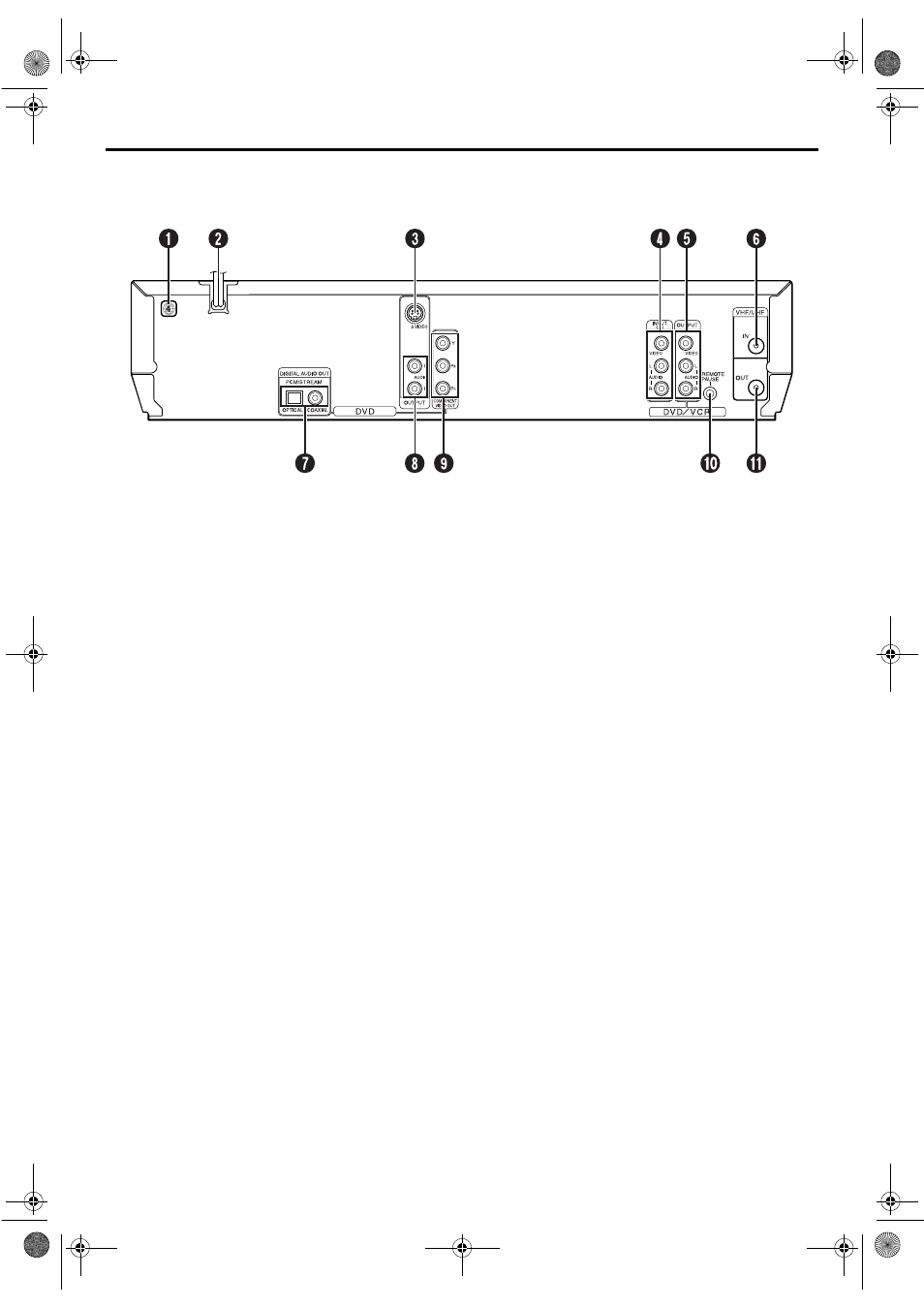

REAR VIEW
A Region Number Label ੬ pg. 5
B AC Power Cord ੬ pg. 13
C S-video Output Connector (S VIDEO OUTPUT)*
੬ pg. 14
* This connector is for DVD deck only.
D Audio/Video Input Connectors (AUDIO/VIDEO
INPUT) ੬ pg. 41, 68
E Audio/Video Output Connectors (AUDIO/
VIDEO OUTPUT) ੬ pg. 13, 14, 15, 69
F Antenna Input Connector (VHF/UHF IN)
੬ pg. 13
G Digital Audio Output Connector
(DIGITAL AUDIO OUT) ੬ pg. 71
H Audio Output Connectors (AUDIO OUTPUT
(L/R))*
* These are analogue audio output connectors for DVD deck only.
I Component Video Output Connectors
(COMPONENT VIDEO OUT) ੬ pg. 15
J Remote Pause Connector (REMOTE PAUSE)
੬ pg. 68
K Antenna Output Connector (VHF/UHF OUT)
੬ pg. 13
