Backhoe Dimensions / Performance 315SJ
Backhoe specifications are with 24-in. x
7.5-cu.-ft. (610 mm x 0.21 m 3 ) bucket
Bucket Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12–30 in . (305–762 mm)
Digging Force
Bucket Cylinder . . . . . . . . . . . . . . . . . . . . . . . . 11,990 lb . (53 .3 kN)
With Heavy-Duty Cylinder Option . . . . . . . 15,236 lb . (67 .8 kN)
Crowd Cylinder . . . . . . . . . . . . . . . . . . . . . . . . 8,090 lb . (36 .0 kN)
Swing Arc . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180 deg .
Operator Control . . . . . . . . . . . . . . . . . . . . . . . . . . two levers
With Optional Extendable Dipperstick
Retracted Extended
F Loading Height (truck loading position) . . . . . . 11 ft . 9 in . (3 .58 m) 14 ft . 3 in . (4 .34 m)
G Reach from Center of Swing Pivot . . . . . . . . . . 18 ft . 5 in . (5 .61 m) 21 ft . 9 in . (6 .63 m)
H Reach from Center of Rear Axle . . . . . . . . . . . 23 ft . 0 in . (7 .01 m) 26 ft . 4 in . (8 .03 m)
I Digging Depth (SAE maximum) . . . . . . . . . . . . 14 ft . 6 in . (4 .42 m) 18 ft . 0 in . (5 .49 m)
J Digging Depth (SAE)
2-ft . (610 mm) Flat Bottom . . . . . . . . . . . . . . . 14 ft . 5 in . (4 .40 m) 17 ft . 10 in . (5 .44 m)
8-ft . (2440 mm) Flat Bottom . . . . . . . . . . . . . . 13 ft . 5 in . (4 .09 m) 17 ft . 2 in . (5 .22 m)
K Overall Width (less loader bucket) . . . . . . . . . . 8 ft . 2 in . (2 .49 m) 8 ft . 2 in . (2 .49 m)
L Side-Shift from Tractor Centerline . . . . . . . . . . 23 in . (584 mm) 23 in . (584 mm)
M Wall-to-Swing Centerline . . . . . . . . . . . . . . . . 24 .4 in . (620 mm) 24 .4 in . (620 mm)
N Bucket Rotation . . . . . . . . . . . . . . . . . . . . . . . . 190 deg . 190 deg .
O Transport Height . . . . . . . . . . . . . . . . . . . . . . . 11 ft . 5 in . (3 .48 m) 11 ft . 5 in . (3 .48 m)

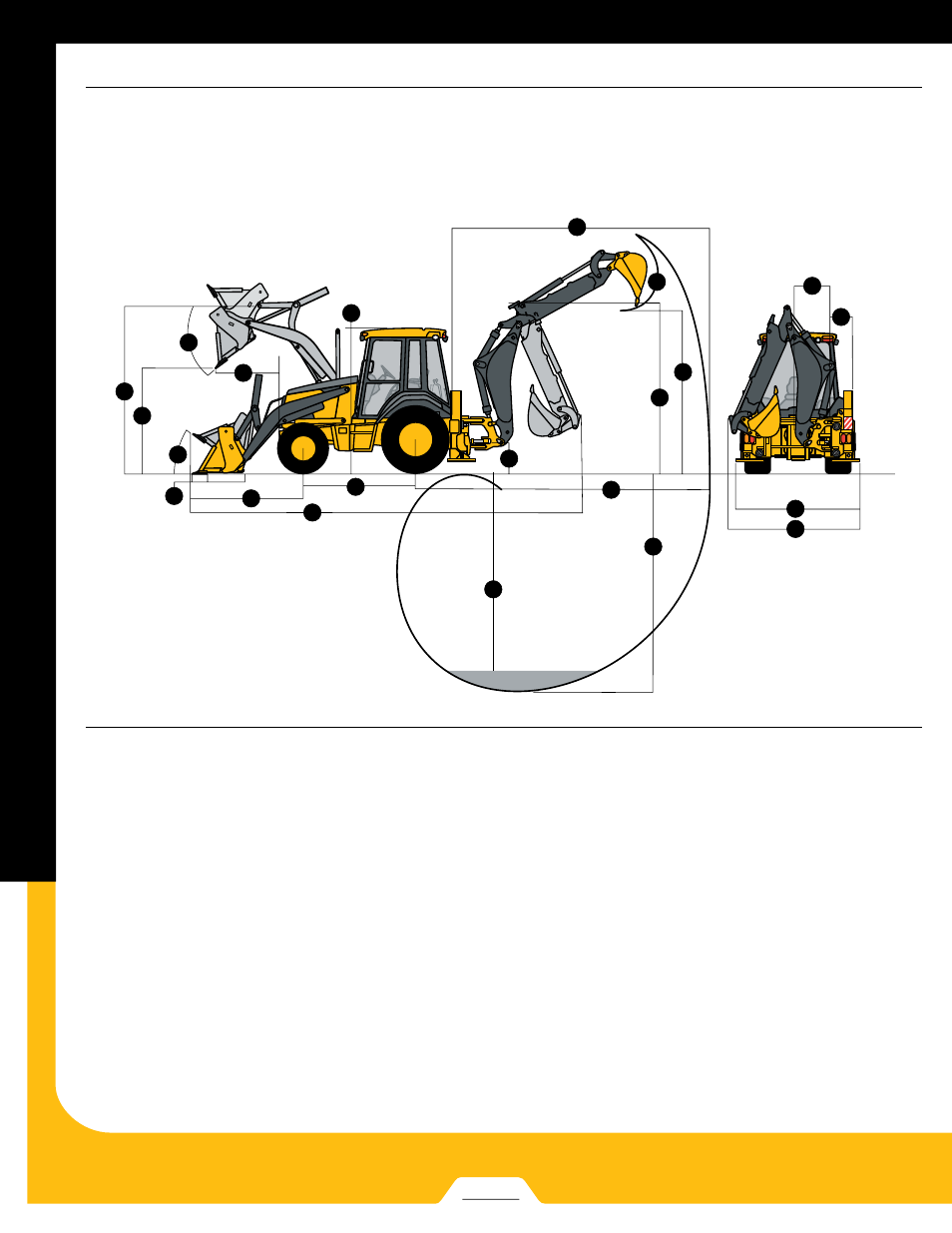

Overall Dimensions 315SJ
A Ground Clearance (minimum) . . . . . . . . . . . . . . 14 in . (351 mm)
B Overall Length (transport) . . . . . . . . . . . . . . . . . 17 ft . 3 in . (5 .26 m)
C Stabilizer Spread . . . . . . . . . . . . . . . . . . . . . . . . 7 ft . 10 in . (2 .40 m)
D Height to Top of ROPS/Cab . . . . . . . . . . . . . . . . 9 ft . 2 in . (2 .79 m)
E Length from Axle to Axle
Non-Powered Front Axle . . . . . . . . . . . . . . 6 ft . 11 in . (2 .11 m)
Mechanical-Front-Wheel-Drive Axle . . . . . . 7 ft . 0 in . (2 .14 m)
L
C
M
T
R
S
U
A
O
F
G
H
B
I
D
V
E
N
J
P
Q
K
