Name and Function of
Parts

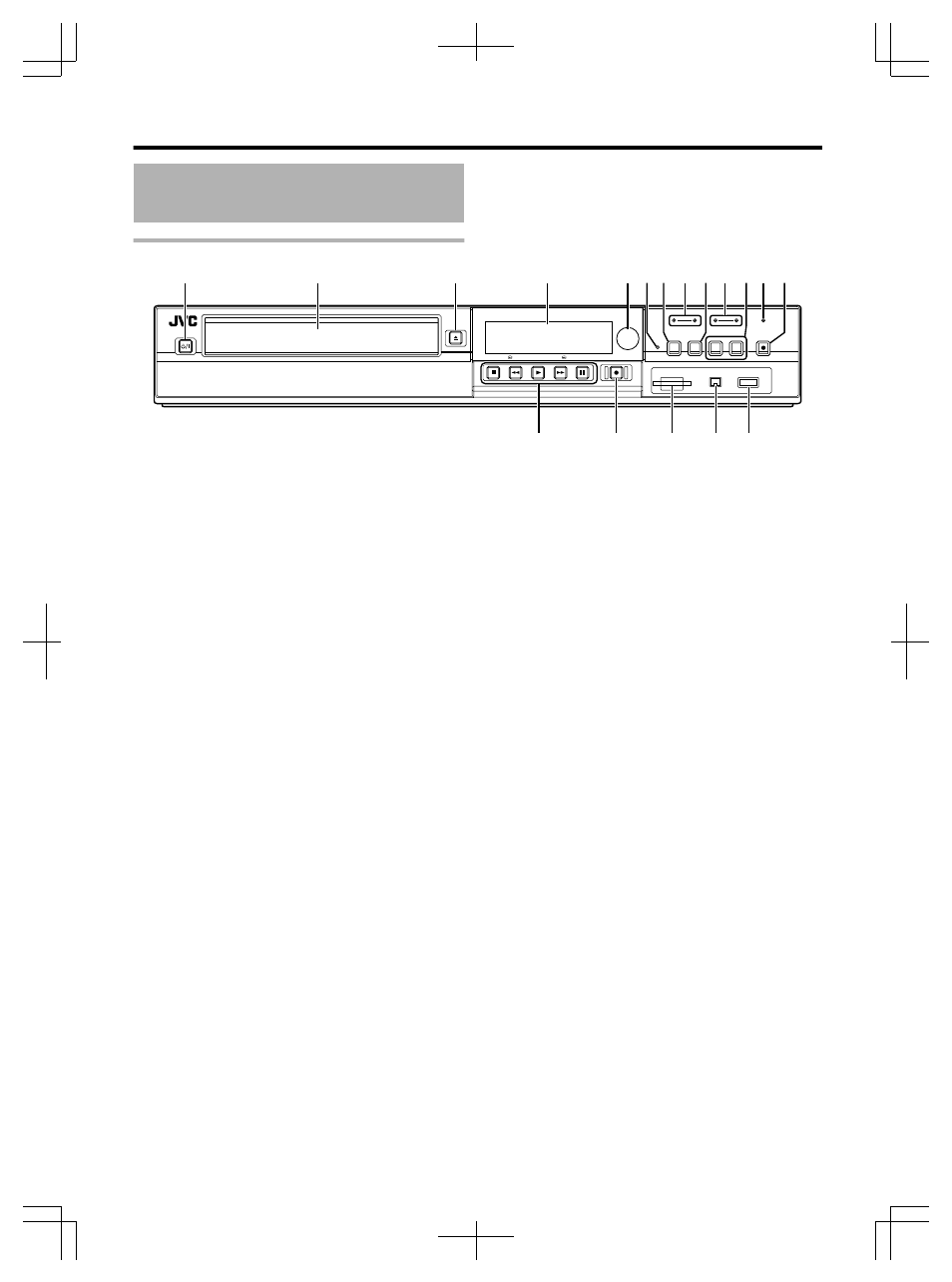

Front panel
.
A
B
C
D
E
H
R
Q
P
O
N
J
L
G
F
M
I
K
A
[ A ] button
Turn On/Off the power.
B
Disc tray
C
[ M ] button
Opens/closes the disc tray.
D
Display window
E
Remote control sensor
F
[RESET] switch
Reset the unit.
G
[REC MODE] button
Switches the recording mode.
H
[HDD] lamp
Lights up when in HDD mode.
The [REC] lamp lights up while recording/importing.
I
[INPUT SELECT] button
Switches the external input signals (HDV/DV, L1).
J
[BD] lamp
Lights up when in BD/DVD mode.
The [REC] lamp lights up while recording/dubbing.
K
[MEDIA SELECT] button
Switches between HDD and BD/SD.
L
[SD] lamp
Lights up when in SD mode.
M
[ONE TOUCH DUBBING] button
Starts dubbing at a single touch.
N
Playback control buttons
v
[ I ] button
Plays back the data.
v
[ o ] button
Stops playback/recording.
v
[ O ] button
Fast reverses playback.
v
[ N ] button
Fast forwards playback.
v
[ W ] button
Pauses playback.
O
[ R ] button
Starts recording of a title.
P
[SD SLOT]
Used for inserting SD cards.
Q
[i.LINK(HDV/DV IN)] terminal
Connect a video camera using i.LINK (HDV/DV. IN).
R
[USB] terminal
Connect a video camera using USB.
