John Deere 310SG - Manual (Page 18)

18
H
I
J
K
c
a
b
d
E
F
A
B
C
G
D
L ▲
e
M
▲ ROPS and cab

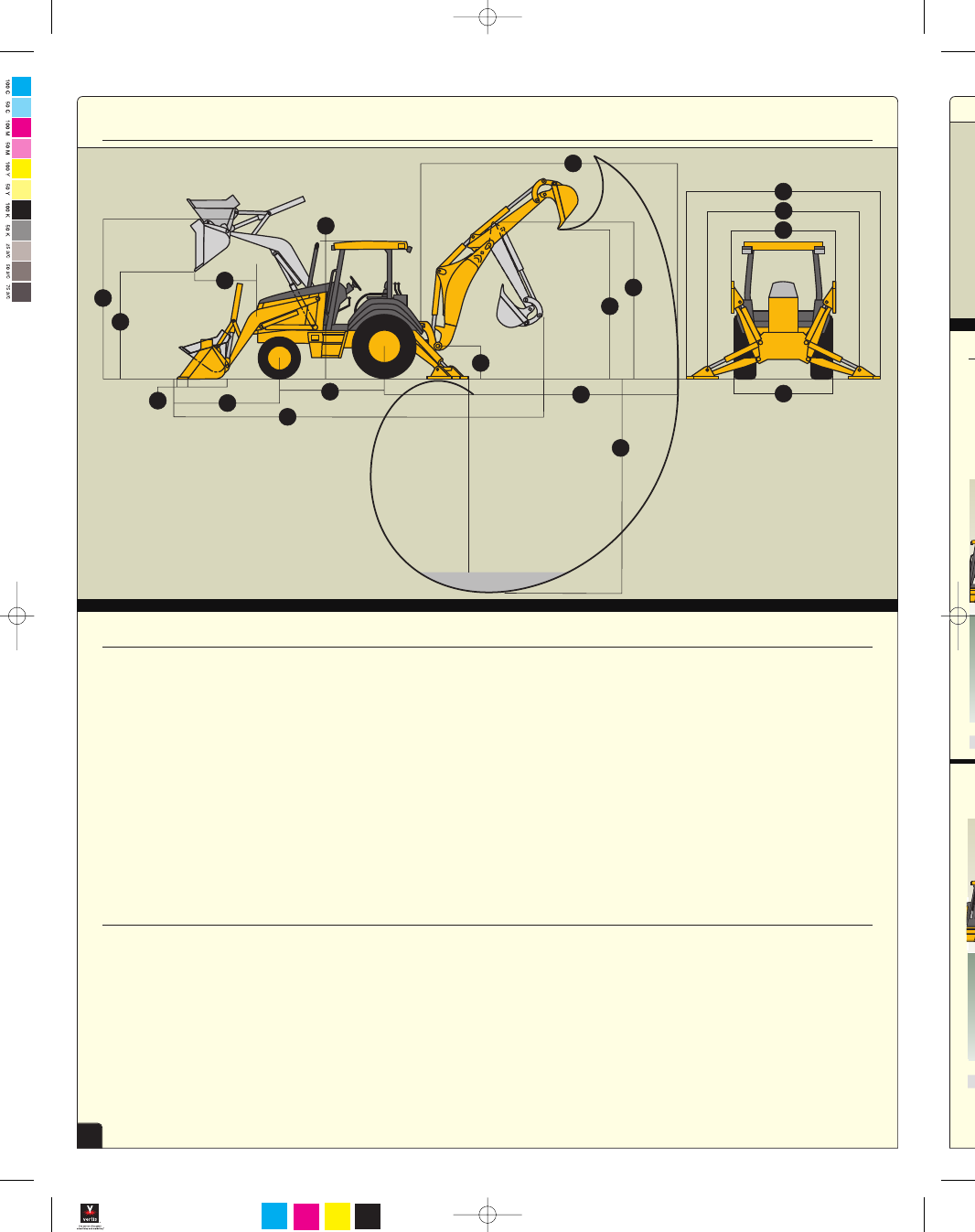

Backhoe Dimensions 310G 310SG
With Standard With Extendable With Standard With Extendable
Backhoe* Dipperstick Extended* Backhoe* Dipperstick Extended*
A Loading height, truck loading position.........................10 ft. 11 in. (3.33 m) 13 ft. 11 in. (4.24 m) 11 ft. 3 in. (3.43 m) 14 ft. 1 in. (4.29 m)
B Reach from center of swing pivot ...............................17 ft. 10 in. (5.44 m) 21 ft. 5 in. (6.53 m) 18 ft. 3 in. (5.56 m) 21 ft. 11 in. (6.68 m)
C Reach from center of rear axle....................................21 ft. 4 in. (6.50 m) 24 ft. 11 in. (7.59 m) 21 ft. 9 in. (6.63 m) 25 ft. 4 in. (7.72 m)
D Maximum digging depth .............................................14 ft. 3 in. (4.34 m) 17 ft. 11 in. (5.46 m) 14 ft. 6 in. (4.42 m) 18 ft. 5 in. (5.61 m)
E Ground clearance, minimum .......................................12 in. (305 mm) 12 in. (305 mm) 13 in. (330 mm) 13 in. (330 mm)
F Transport height..........................................................11 ft. 3 in. (3.43 m) 11 ft. 2 in. (3.40 m) 11 ft. 6 in. (3.51 m) 11 ft. 5 in. (3.48 m)
G Overall length, transport..............................................23 ft. 3 in. (7.09 m) 23 ft. 3 in. (7.09 m) 23 ft. 6 in. (7.16 m) 23 ft. 6 in. (7.16 m)
H Stabilizer width – transport with ROPS........................7 ft. 2 in. (2.18 m) 7 ft. 2 in. (2.18 m) 7 ft. 2 in. (2.18 m) 7 ft. 2 in. (2.18 m)
I Stabilizer spread – operating ......................................10 ft. 2 in. (3.10 m) 10 ft. 2 in. (3.10 m) 10 ft. 2 in. (3.10 m) 10 ft. 2 in. (3.10 m)
J Stabilizer overall width – operating .............................11 ft. 7 in. (3.53 m) 11 ft. 7 in. (3.53 m) 11 ft. 7 in. (3.53 m) 11 ft. 7 in. (3.53 m)
K Width over tires...........................................................82.9 in. (2.11 m) 82.9 in. (2.11 m) 84.6 in. (2.18 m) 84.6 in. (2.18 m)
L Height to tops of ROPS................................................9 ft. (2.74 m) 9 ft. (2.74 m) 9 ft. 2 in. (2.79 m) 9 ft. 2 in. (2.79 m)
M Length from axle to axle .............................................82.7 in. (2100 mm) 82.7 in. (2100 mm) 82.7 in. (2100 mm) 82.7 in. (2100 mm)
*Backhoe specifications are with 24-in. x 6.5-cu. ft. (610 mm x 0.18 m 3 ) bucket for the 310G and with 24-in. x 7.5-cu. ft. (610 mm x 0.21 m 3 ) bucket for the 310SG.
Loader Dimensions
a Height to bucket hinge pin, maximum.........................11 ft. 1 in. (3.38 m) 11 ft. 2 in. (3.40 m)
b Dump clearance, bucket at 45 degrees.......................8 ft. 10 in. (2.69 m) 8 ft. 2 in. (2.59 m)
c Reach at full height, bucket at 45 degrees..................30.9 in. (785 mm) 36.0 in. (911 mm)
d Digging depth below ground, bucket level...................6.3 in. (160 mm) 5.8 in. (147 mm)
e Length from front axle centerline to bucket
cutting edge................................................................80 in. (2030 mm)
80 in. (2030 mm)
Raising time to full height ...........................................4.9 sec. 5.5 sec.
Bucket dump time at maximum height .......................1.3 sec. 1.2 sec.
Bucket lowering time (power down)............................2.5 sec. 2.2 sec.
310G/310SG Backhoe Loaders
