JVC UX-J50 User Manual

Page 7

English

Front Panel

1 Disc tray
2 Display window
3 REV.MODE (reverse mode) button (17 – 19)
4 AUX button (10)

Pressing this button also turns on the unit.

5 STANDBY/ON

button and STANDBY/ON lamp

(9, 10, 21)

6 REC (recording) button (18, 19)
7 Multi operation buttons

• DOWN/

4 (reverse skip), 7 (stop)

and

¢ (forward skip)/UP

8 CD

‹/8 (play/pause) button (10, 14 – 16)

Pressing this button also turns on the unit.

9 TAPE

¤ ‹ button (10, 17)

Pressing this button also turns on the unit.

p Cassette holder
q PHONES jack (10)
w FOR UX-J60:

COLOR button (11)

FOR UX-J50:

CLOCK/TIMER button (9, 20, 21)

e CD

0 (disc tray open/close) button (14)

Pressing this button also turns on the unit.

r VOLUME + / – control (10)
t FOR UX-J60:

SOUND TURBO button (11)
SURROUND button (11)
AHB (Active Hyper Bass) PRO button (10)

FOR UX-J50:

AHB (Active Hyper Bass) PRO button (10)
BASS button (10)
TREBLE button (10)

y Remote sensor
u FM/AM button (10, 12, 13)

Pressing this button also turns on the unit.

i PUSH OPEN

0 (cassette holder open) portion (17 – 19)

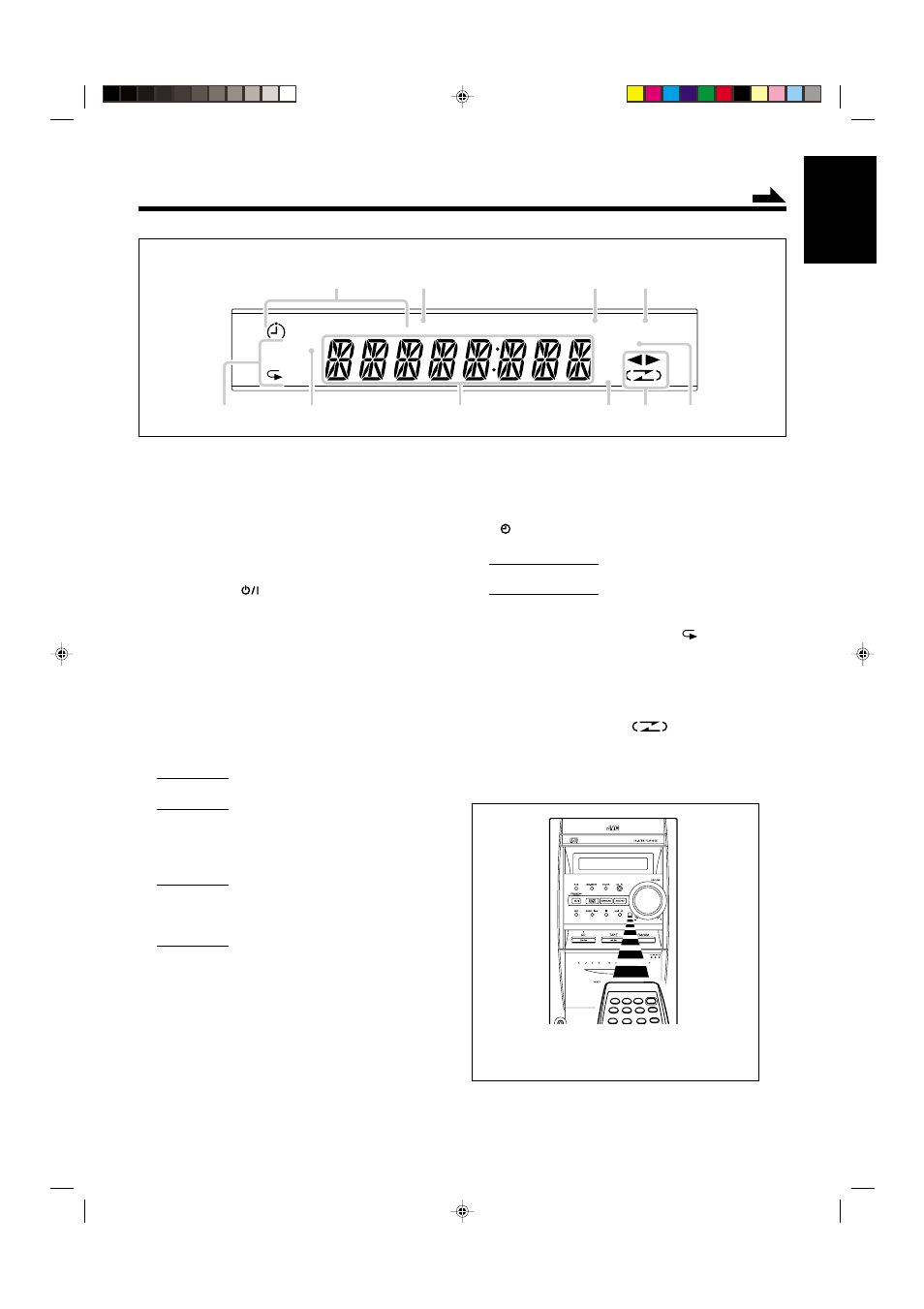

Display Window

1 Timer indicators

•

(timer), DAILY, REC (recording timer), and SLEEP

2 REC (recording) indicator
3 ONLY FOR UX-J60:

SURROUND indicator

4 ONLY FOR UX-J60:

BASS indicator

5 Disc play mode indicators

• PRGM (program), RANDOM, and

ALL (repeat)

6 ST (stereo) indicator
7 Main display

• Shows the source name, frequency, etc.

8 AHB (Active Hyper Bass pro) indicator
9 Tape operation indicators

•

2 3 (tape direction) and

(reverse mode)

p MONO indicator

When using the remote control, point it at the

remote sensor on the front panel.

[DAILY REC SLEEP]REC

PRGM
RANDOM

ALL

SURROUND BASS

MONO

AHB

See the pages in parentheses for details.

Continued
