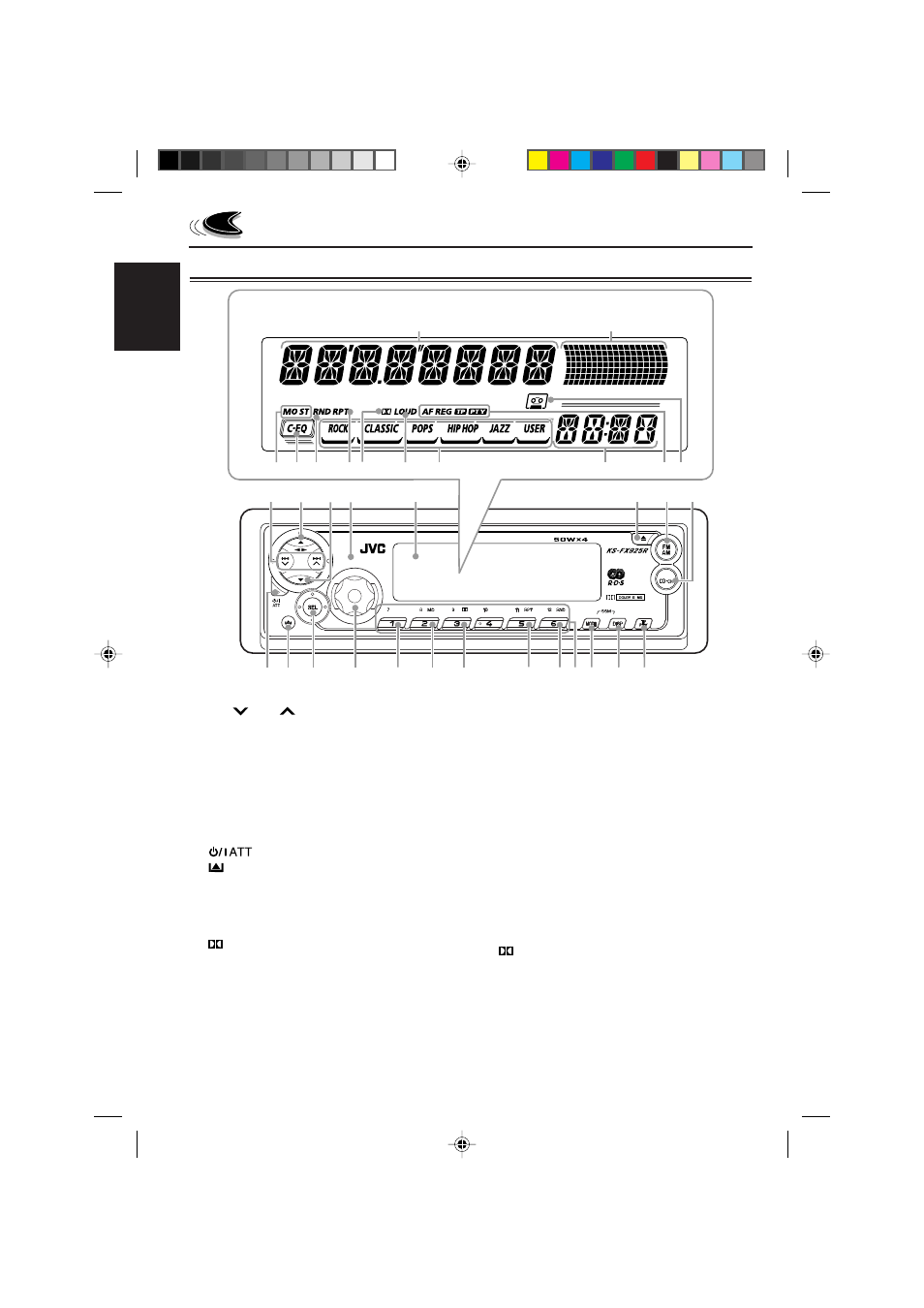

LOCATION OF THE BUTTONS
Control panel
Display window
; DISP (display) button
• Also functions as SSM buttons when pressed
together with MODE button.
a TP PTY (traffic programme/programme type)
button
Display window
s Main display
d Volume (or audio) level meter
Equalization pattern indicator
f Tuner reception indicators
MO (monaural), ST (stereo)
g C-EQ (custom equalizer) indicator
h RND (random) indicator
j RPT (repeat) indicator
k (Dolby B) indicator
l LOUD (loudness) indicator
/ Sound mode indicators
ROCK, CLASSIC, POPS, HIP HOP, JAZZ, USER.
z Source/clock display
x RDS indicators
AF, REG, TP, PTY.
c Tape–in indicator
1 4 / ¢ buttons
2 5 (up) button
23 (tape direction) button
3 ∞ (down) button
4 Remote sensor
5 Display window
6 0 (eject) button
7 FM AM DAB button
8 TAPE CD-CH button
9 (standby/on/attenuator) button
p (control panel release) button
q SEL (select) button
w Control dial
e EQ (equalizer) button
r MO (monaural) button
t (Dolby B) button
y RPT (repeat) button
u RND (random) button
i Number buttons
o MODE button
• Also functions as SSM buttons when pressed
together with DISP (display) button.
