Specifications:
Enclosure Type: Acoustic Suspension (Sealed)
Driver Type: One JL AUDIO 10W3-D2 Subwoofer
Nominal Impedance: 4
Ω
Cont. Power Handling: 250 Watts
JL Audio recommends using a high quality amplifier such as the JL Audio 250/1. The diagram below shows the recommended
crossover, infrasonic filter and equalizer settings for the 250/1 when being used to power your Stealthbox ® .
Included Hardware:
(1) 3/8” Washer
(1) 3/8” Lock Washer
(1) 3/8” Hex nut
(1) 3/8” x 2 1/4” Socket Cup Set Screw
10369 N. Commerce Pkwy, Miramar, Florida 33025 Phone: 954.443.1100 Fax: 954.443.1111
JL AUDIO 250/1
monoblock subwoofer amplifier
Amplifier Input Section
Input Sens. Input Voltage
Low/High
Left Ch. Right Ch.
Signal Sensing
Off/On
Output Mode
Full-Range/Low-Pass/High-Pass
Left Ch. Right Ch.
Amp LP Filter
Mode/Slope
Off/12dB/24dB
Filter Freq. (Hz)
Bass Control
LF Boost (dB)
Off/30Hz
Infrasonic Filter
+1 +13
+3
+7
+10
Preamp Output Section +12VDC Ground Remote
The JL Audio 250/1 is a very versatile audio component. Please consult the owner’s manual for detailed information
about installing and tuning this amplifier.
➔ ➔ ➔
Cont.
From
Page 3
➔
S B - F - Z X 3 / 1 0 W 3 , J L AU D I O, I n c 2 0 0 2 S h e e t S K U # 0 1 1 1 5 7 R ev i s i o n 0 6 / 1 8 / 0 2 Pa g e 3 w w w . j l a u d i o . c o m
Mid/High Frequency Driver Information:
CONGRATULATIONS!
INSTALL COMPLETE.
TR570-CXi
Front Location Driver Size:
5"x7”
Applicable JL Audio Products:
TR570-CXi,
XR570-CXi or CSi
Rear Location Driver Size:
5"x7”
Applicable JL Audio Products:
TR570-CXi,
XR570-CXi or CSi

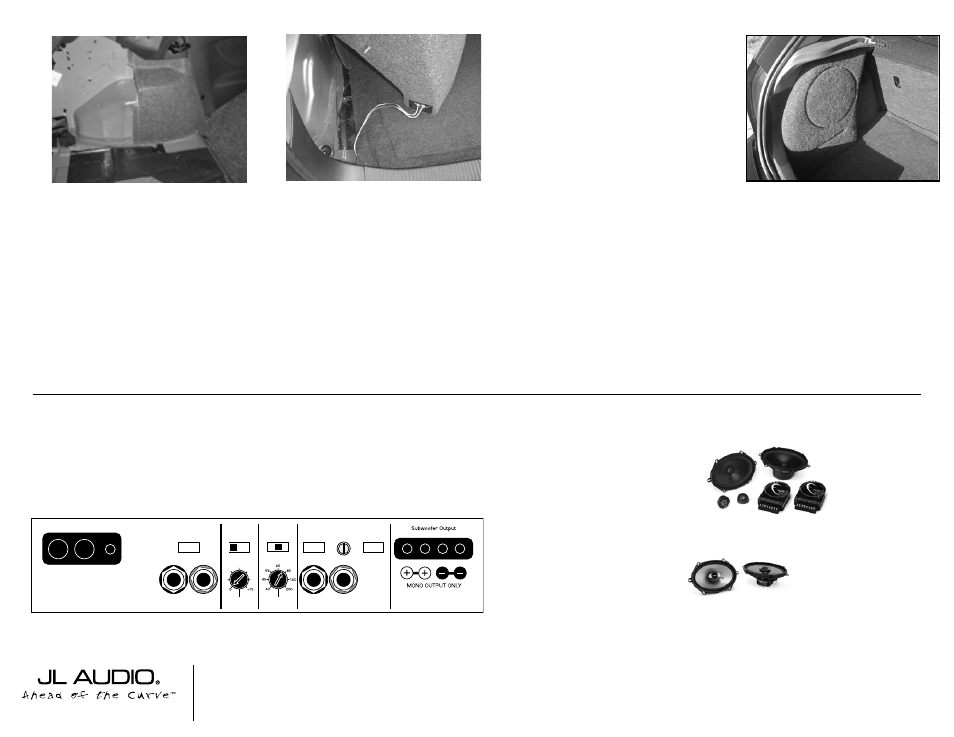

STEP 11: Reinstall the plastic side panel and
the 4 Phillips head screws, the safety belt
retractor cover and cargo light removed in
Steps 1 & 2. Place cut carpet side panel back
into car. STEP 12: Run speaker wire to the location of
the Stealthbox enclosure. At this time please
check for proper operation of woofer.
STEP 13: Slide Stealthbox enclosure into the
corner of cargo area. Insert the 3/8 in.
threaded mounting stud into the enclosure
and line it up with the 1/2 in. (12.7 mm) hole.
Slide through to outside of car. Make sure
relocated MOLEX
® plug and wiring is not
going to be pinched by enclosure or side
panels.
STEP 14: From outside of the car, slide hand
between the pulled fabric wheel well (Step
6) and the car’s body. Feel for the threaded
mounting stud.
STEP 15: Place fender washer, lock washer
and 3/8 in. nut onto threaded mounting stud.
Tighten firmly using a 9/16 in. deep socket.
STEP 16: After securely mounting the
Stealthbox, push fabric wheel well back into
place. Reinstall TORX head bolt and Phillips
head screw that was removed in Step 5.
STEP 17: Replace hatch carpet back into car.You
will need to tuck the carpet under the Stealthbox.
XR570-CXi
