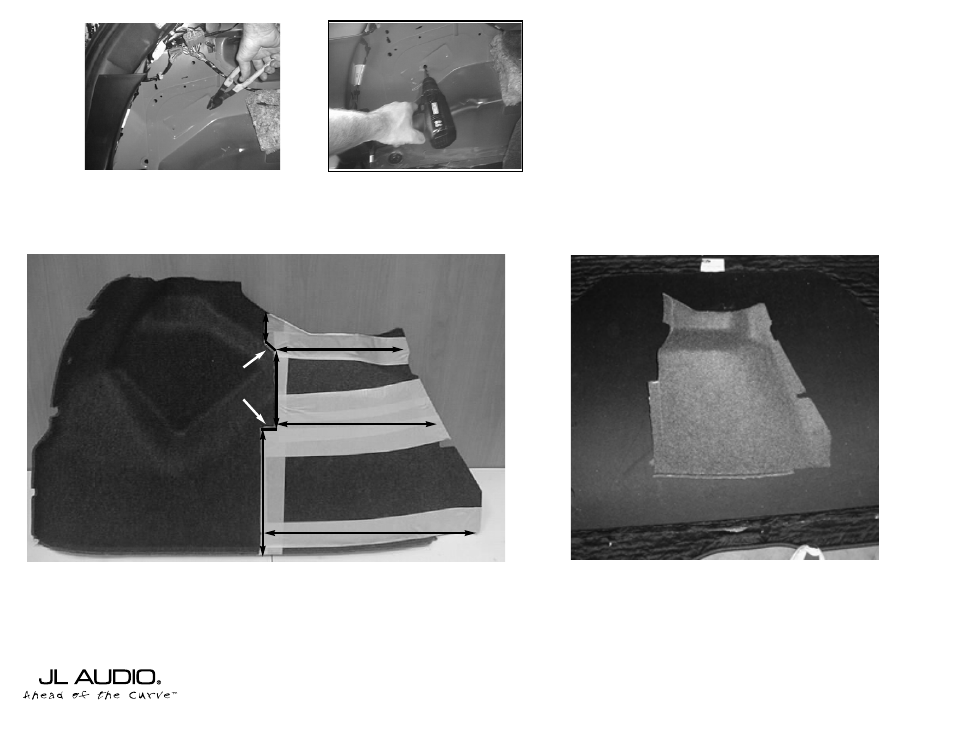

STEP 7: Pull plastic mounting stud out from
the rear side metal panel were the MOLEX
®
wiring plug was removed in Step 4.
Cont.
From
Page 1
Continued on Page 3 ➔
➔
STEP 8: Enlarge this hole to 1/2 in. (12.7 mm).
CAUTION: Always check for obstructions
before drilling.
ALWAYS WEAR EYE PROTECTION
WHEN DRILLING.
STEP 9: Using a measuring tape and masking
tape, define the area to be cut as shown by
the picture (above) and dimensions (to the
right). All dimensions follow the contour of
the panel. STEP 10: After panel has been cut, it should
resemble this.
S B - F - Z X 3 / 1 0 W 3 , J L AU D I O, I n c 2 0 0 2 S h e e t S K U # 0 1 1 1 5 7 R ev i s i o n 0 6 / 1 8 / 0 2 Pa g e 2 w w w . j l a u d i o . c o m
A
B
C
D
E
F
G
H
A) 2.5 in. (63.5mm) E) 1.25 in. (31.75mm)
B) 1.0 in. (25.4mm) F) 13.5 in. (342.9mm)
C) 11.0 in. (279.4mm) G) 9.375 in. (238.125mm)
D) 7.75 in. (196.85mm) H) 17.5 in. (444.5mm)
➔
