VARIANT: AJ26 N/A Vehicles VIN RANGE: 024687 ➞ DATE OF ISSUE: FEBRUARY 1998
ENGINE CRANKING
CONTROL
BODY PROCESSOR MODULE
FC14-39
FC14-73
FC14-7
O
I
FC14-41 I RW
FC14-80 NB 15
III
IGNITION SWITCH (III)
II
I
FC4-1
FC4-3
FC4-2
WO
RW
WN
1
FC4-5
BK FCS48
FC3BL
BK
BATTERY
250A x 2
BT68
B BT67 BT66 BT60 BT63
BT61
BT62 N
N
N
HIGH POWER PROTECTION MODULE
250A N
BT80 N ST1
FALSE BULKHEAD STUD CONNECTOR
01.1
01.1
FC89-3 FC89-1 NEUTRAL SWITCH
RU BK
FUEL PUMP CONTROL AND IGNITION
ENGINE CONTROL MODULE
EM11-6 I
02.1
02.1
BK
BK FCS47
FC3BR
RU
GO EM1-15 GO EMS28 GO
GO
WR NW
WK
75
37 II
WR EM60-2
ST10
ST3
N
B
6
STARTER MOTOR
ST11
GENERATOR
AN2
B
REGULATOR
AN1 AN3-1
AN3-2 B
N
SUPPRESSION MODULE
PI50-2
PI50-1 SW
31 II WP
SW SW PI1-11 EM1-14 08.1 MAJOR INSTRUMENT PASK: CHARGE INDICATOR (CIRCUIT CONTINUED)
WR
N ST2
ENGINE
START GO
O
KEY TRANSPONDER MODULE
FC22-16 EM10-6 O
Y EM10-17 Y FC22-17 SECURITY
ACKNOWLEDGE
O.K. TO START
SECURITY ACKNOWLEDGE
O.K. TO START D D
D
Y
D
EM2-18
EM3-8 Y FCS74
D
B+
STARTER RELAY
SU
FC22-9 GLASS BREAKAGE
SECURITY ACKNOWLEDGE D
FC14-92 SU D
EM50 3
1
5
2
POWER
LOGIC
EM10-15
G 05.1 PARK, NEUTRAL (CIRCUIT CONTINUED) I
The following symbols are used to represent values for Control Module Pin Out data:
I Input O Output SG Signal Ground
D Serial and encoded communications C CAN (Network) S SCP Network
CAUTION: The information on this data page is furnished to aid the user in understanding circuit operation. THIS INFORMATION SHOULD BE USED FOR
REFERENCE ONLY.
NOTE: The values listed are approximately those that can be expected at the control module connector pins with all circuit connections made and all
components connected and fitted. “Active” means a load is applied or a switch is ON; “Inactive” means a load is not applied or a switch is OFF. REFER TO THE FRONT OF THE BOOK FOR ILLUSTRATIONS DETAILING THE LOCATION AND IDENTIFICATION OF COMPONENTS, RELAYS,
CONNECTORS, HARNESSES, GROUNDS, VEHICLE CONTROL MODULES AND CONTROL MODULE PINS.
B+ Battery voltage
V Voltage (DC) Hz Frequency
KHz Frequency x 1000
MS Milliseconds MV Millivolts
DATE OF ISSUE: FEBRUARY 1998
Fig. 03.1
COMPONENTS
Component Connector / Type / Color Location / Access
BATTERY BT66 / EYELET TRUNK, RIGHT HAND SIDE BT67 / EYELET BODY PROCESSOR MODULE FC14 / 104-WAY AMP EEEC / GREY PASSENGER SIDE FASCIA / AIRBAG BRACKET ENGINE CONTROL MODULE EM10 / 28-WAY MULTILOCK 040 / GREY ENGINE COMPARTMENT / CONTROL MODULE ENCLOSURE EM11 / 16-WAY MULTILOCK 040 / GREY
EM12 / 22-WAY MULTILOCK 040 / GREY
EM13 / 34-WAY MULTILOCK 040 / GREY
EM14 / 12-WAY MULTILOCK 47 / WHITE
EM15 / 22-WAY MULTILOCK 47 / WHITE
GENERATOR AN1 / EYELET ENGINE COMPARTMENT / RIGHT FRONT AN2 / EYELET
ST11 / EYELET
HIGH POWER PROTECTION MODULE BT60 / EYELET TRUNK / ADJACENT TO BATTERY BT61 / EYELET
BT62 / EYELET
BT63 / EYELET
IGNITION SWITCH (KEY-IN SWITCH) FC4 / 8-WAY MULTILOCK 070 / WHITE STEERING COLUMN KEY TRANSPONDER MODULE FC22 / 20-WAY MULTILOCK 040 / GREEN ADJACENT TO DRIVER SIDE FUSE BOX NEUTRAL SWITCH FC89 / 3-WAY MULTILOCK 070 / GREY GEAR SELECTOR ASSEMBLY REGULATOR (GENERATOR) PI50 / 3-WAY SUMITOMO 0902 / BLACK ENGINE COMPARTMENT / GENERATOR STARTER MOTOR ST2 / EYELET ENGINE BLOCK ST3 / EYELET
ST10 / EYELET
SUPPRESSION MODULE AN3 / 2-WAY ECONOSEAL III LC/ RED REARWARD OF RIGHT FRONT HEADLAMP
RELAYS
Relay Color / Stripe Connector / Color Location / Access
STARTER RELAY BROWN EM50 / BROWN RH ENCLOSURE RELAYS
HARNESS-TO-HARNESS CONNECTORS
Connector Type / Color Location / Access
BT80 EYELET ENGINE COMPARTMENT / FALSE BULKHEAD, RIGHT HAND SIDE EM1 20-WAY MULTILOCK 070 / WHITE ENGINE COMPARTMENT / ADJACENT TO RIGHT HAND ENCLOSURE EM2 18-WAY MULTILOCK 070 / YELLOW ENGINE COMPARTMENT / ADJACENT TO RIGHT HAND ENCLOSURE EM3 14-WAY MULTILOCK 070 / GREY ENGINE COMPARTMENT / ADJACENT TO RIGHT HAND ENCLOSURE EM60 2-WAY ECONOSEAL III HC / BLACK ENGINE COMPARTMENT / BEHIND LEFT INNER FENDER HEAT SHIELD PI1 57-WAY SUMITOMO / BLACK ENGINE COMPARTMENT / BRACKET ON TOP OF TRANSMISSION ST1 EYELET ENGINE COMPARTMENT / FALSE BULKHEAD, RIGHT HAND SIDE
GROUNDS
Ground Location / Type
BT68 BATTERY GROUND STUD FC3BR EYELET (PAIR) – RIGHT HAND LEG / TRANSMISSION TUNNEL, LEFT HAND SIDE
CONTROL MODULE PIN OUT INFORMATION (FOLD OUT PAGE)
CONTROL MODULE PIN OUT INFORMATION
BODY PROCESSOR MODULE
Pin Description Active Inactive I FC14-7 NEUTRAL SWITCH STATUS GROUND (N) B+ (P, R, D, 4, 3, 2) D FC14-39 SECURITY ACKNOWLEDGE ENCODED COMMUNICATIONS I FC14-41 STARTER ENGAGE REQUEST GROUND (CRANKING) B+ O FC14-73 STARTER RELAY ACTIVATE GROUND (CRANKING) B+ I FC14-80 BATTERY SUPPLY VOLTAGE B+ B+ D FC14-92 ENCODED COMMUNICATIONS
ENGINE CONTROL MODULE Pin Description Active Inactive
D EM10-6 OK TO START – ENCODED COMMUNICATIONS I EM10-15 PARK / NEUTRAL CONFIRMATION B+ (P, N) GROUND (R,D,4,3,2)
D EM10-17 SECURITY ACKNOWLEDGE ENCODED COMMUNICATIONS
I EM11-6 ENGINE CRANK GROUND (CRANKING) B+
KEY TRANSPONDER MODULE
Pin Description Active Inactive
D FC22-9 GLASS BREAKAGE / OK TO START (ENCODED COMMUNICATION) D FC22-16 OK TO START (ENCODED COMMUNICATION) D FC22-17 SECURITY ACKNOWLEDGE (ENCODED COMMUNICATION)

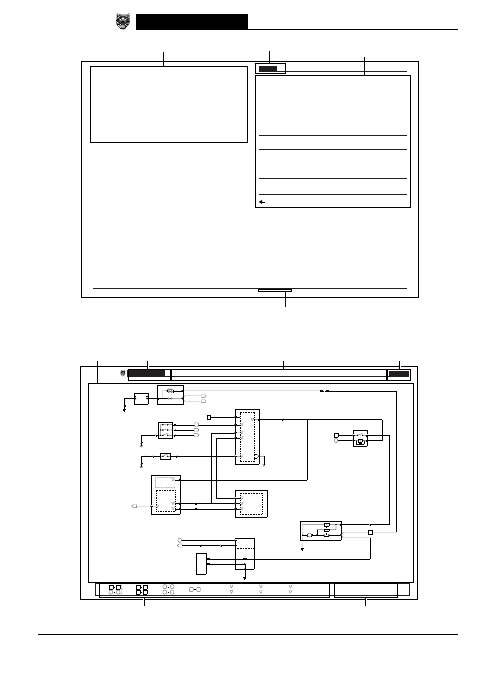

User Instructions
