JVC HR-5910U User Manual
Page 61
EN
61

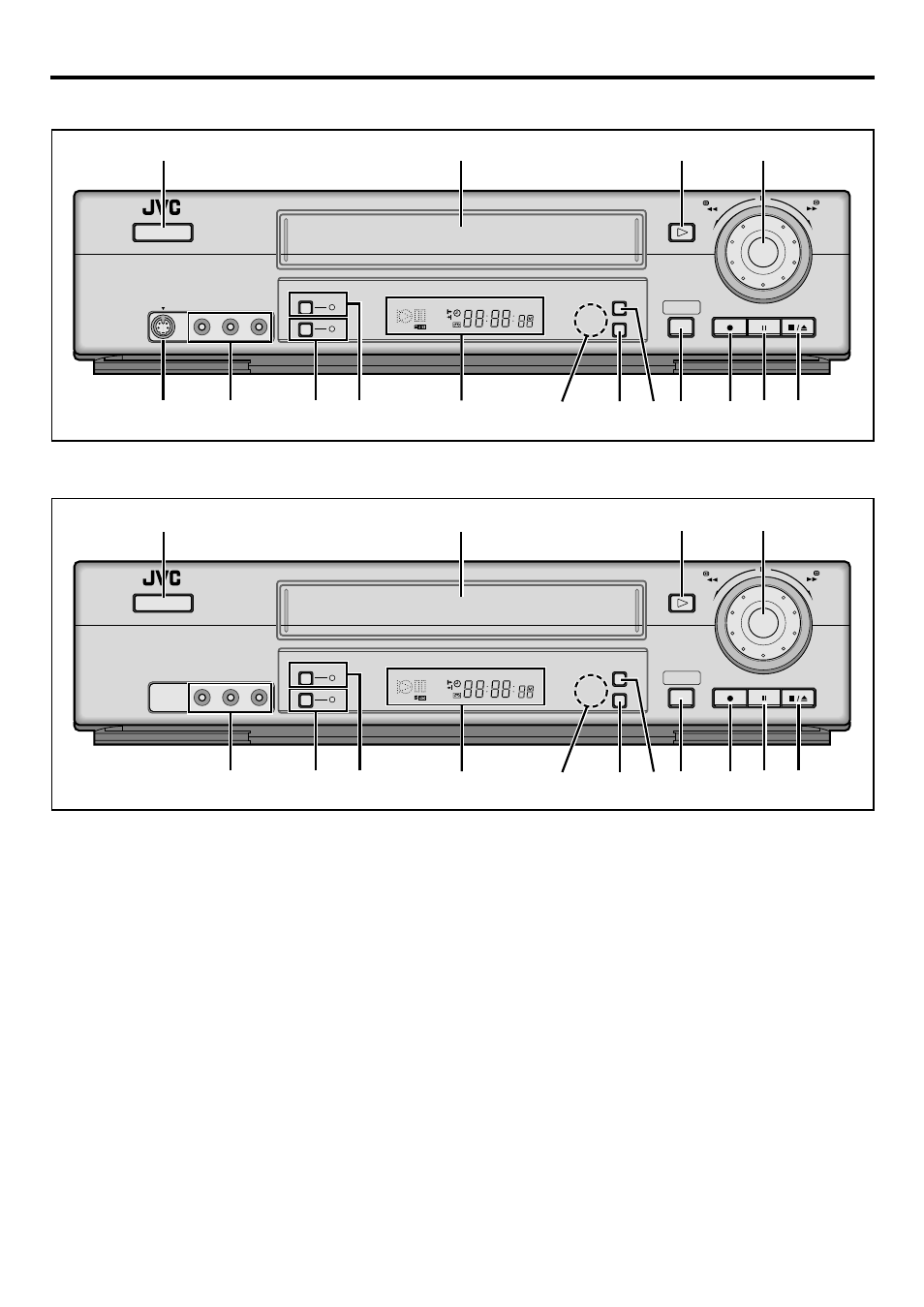

Front panel (HR-S5900U/5910U)
1 POWER button : ੬ pg. 21, 25
2 Cassette loading slot
3 PLAY ( # ) button : ੬ pg. 21
4 Advanced JOG dial : ੬ pg. 21, 25, 28
5 S VIDEO input connector (ONLY FOR
HR-S5900U/5910U) :
੬ pg. 46, 50
6 AUDIO/VIDEO input connectors : ੬ pg. 49, 50
7 S VHS ET button and lamp : ੬ pg. 27
8 REC LINK button and lamp : ੬ pg. 44
9 Front display panel : ੬ pg. 62
0 Remote sensor
! INSERT button
(ONLY FOR HR-S5900U/5910U) :
੬ pg. 51
@ A.DUB button
(ONLY FOR HR-S5900U/5910U) :
੬ pg. 49
# 24HR QUICK PROGRAM button : ੬ pg. 36
$ REC ( ¶ ) button : ੬ pg. 25, 26
% PAUSE ( 8 ) button : ੬ pg. 25, 29
^ STOP/EJECT ( 7 / 0 ) button : ੬ pg. 21, 25
& SP/EP button (ONLY FOR HR-S3900U/3910U) :
੬ pg. 25, 31, 35
* DISPLAY button
(ONLY FOR HR-S3900U/3910U) :
੬ pg. 22, 26
VIDEO (MONO)L—AUDIO—R
S VIDEO
A.DUB
S-VHS ET
FF
REW
POWER
SP
EP
VCR
REC
PAUSE
STOP/EJECT
PLAY
–
+
CH– /+
PUSH / TURN
INSERT
24HR QUICK
PROGRAM
REC LINK
1
2
3
^
%
$
#
9
!
8
7
6
5
4
@
0
Front panel (HR-S3900U/3910U)
VIDEO (MONO)L—AUDIO—R
DISPLAY
S-VHS ET
FF
REW
POWER
SP
EP
VCR
REC
PAUSE
STOP/EJECT
PLAY
–
+
CH– /+
PUSH / TURN
SP / EP
24HR QUICK
PROGRAM
REC LINK
1
2
3
^
%
$
#
9
0
&
8
7
6
4
*
