INSTALLING YOUR NEW VCR
TV OUT
RF cable (supplied)
Matching transformer
(not supplied)
AC Power
Cord
Audio/video cable
(not supplied)
TV
ANTENNA IN
(Antenna or cable input)
Back of VCR
To 75 ohm terminal
AC Outlet
Antenna or cable
Flat feeder
Coaxial cable

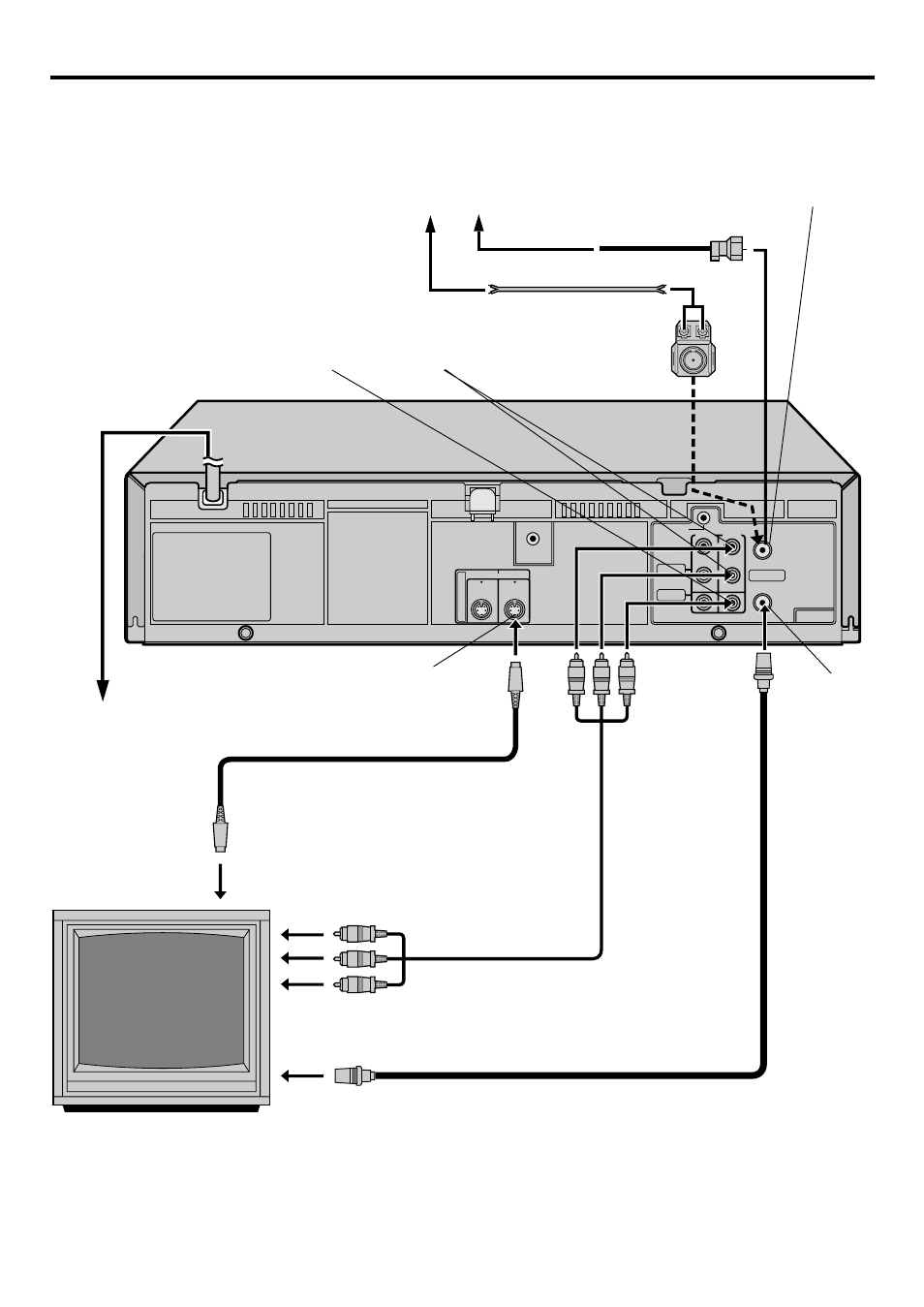

Basic Connections
AUDIO OUT VIDEO OUT
To Audio/video input
connectors
S VIDEO OUT
S-video cable
(supplied)
To S-video input
connector
