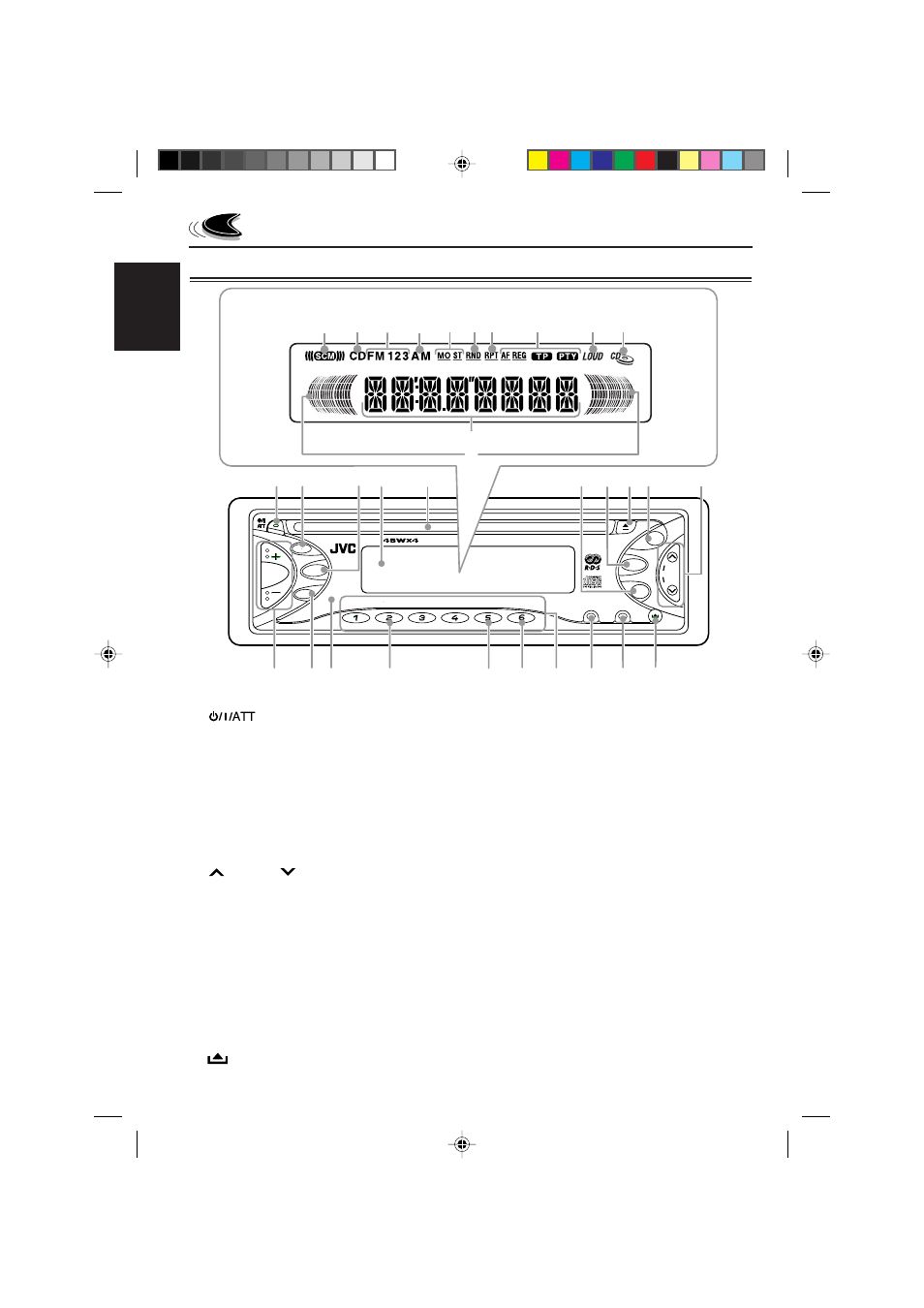

LOCATION OF THE BUTTONS
Control panel
;
SEL
TP/PTY
DISP
SSM
¢
4
CD
FM
AM
SCM MODE 7 8 9 10 11 12 RND RPT MO
w i q o
1 2 4 3 5 8 p 6 7 9
e r y t
a s d f g k l / h j
z
x
u
Display window
Display window
a SCM (sound control memory) indicator
s CD source indicator
d FM band indicator (FM1, FM2, FM3)
f AM band indicator
g Tuner reception indicators
MO (monaural), ST (stereo)
h RND (random) indicator
j RPT (repeat) indicator
k RDS indicators
AF, REG, TP, PTY
l LOUD (loudness) indicator
/ CD–in indicator
z Main display
x Volume (or audio) level indicator
(for KD-S871R)
Volume level indicator
(for KD-S723R and KD-S721R)
1 (standby/on/attenuator) button
2 TP (traffic programme)/
PTY (programme type) button
3 SEL (select) button
4 Display window
5 Loading slot
6 AM button
7 CD button
8 0 (eject) button
9 FM button
p ¢ / 4 buttons
• Also functions as SSM buttons when pressed
together.
q +/– buttons
w DISP (display) button
e Remote sensor (only for KD-S871R)
r MO (monaural) button
t RPT (repeat) button
y RND (random) button
u Number buttons
i MODE button
o SCM (sound control memory) button
; (control panel release) button
