4
ENGLISH

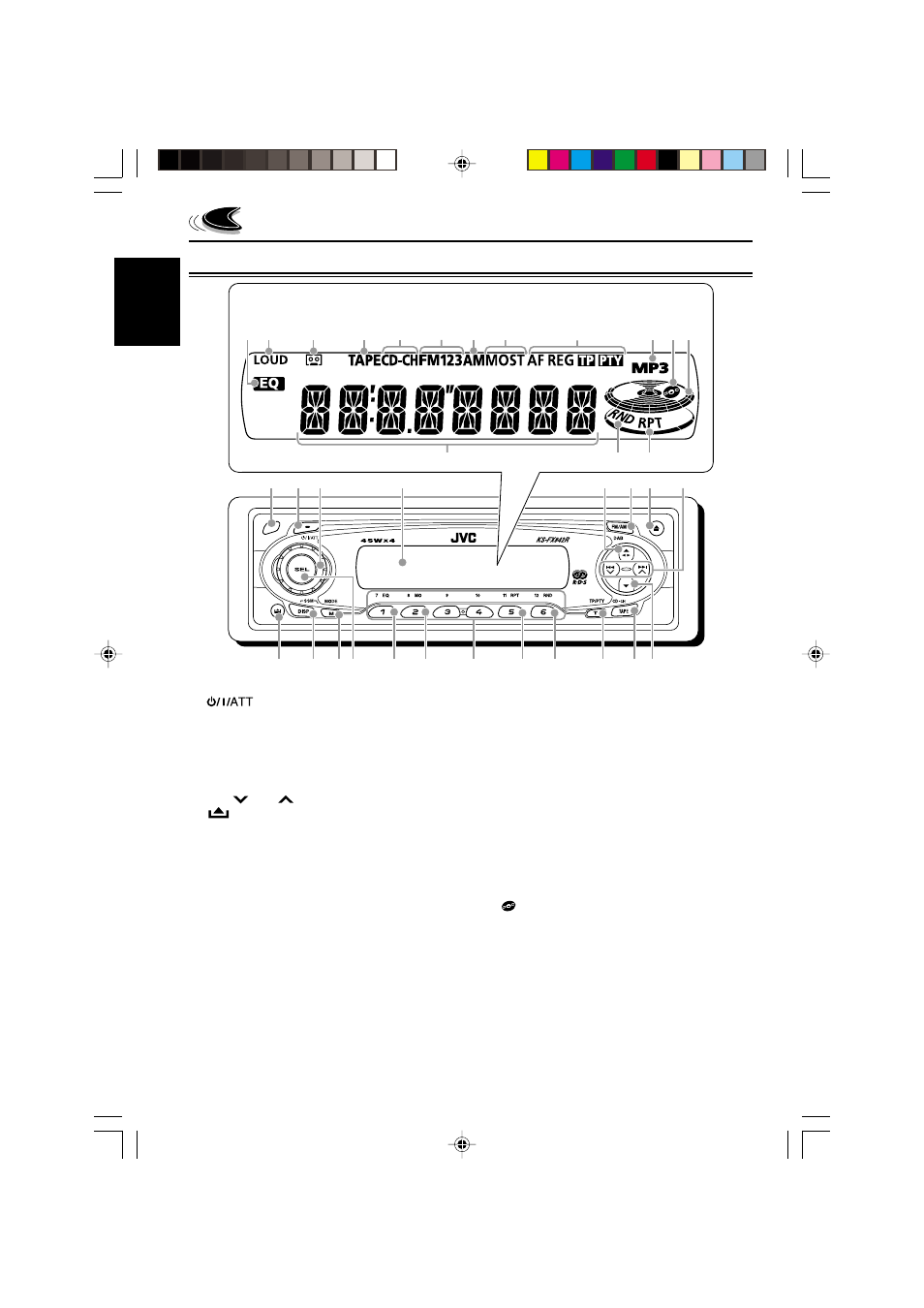

LOCATION OF THE BUTTONS
Control panel
1 Remote sensor
2
(standby/on/attenuator) button
3 Control dial
4 Display window
5
5 (up) button
23 (tape direction) button
6 FM/AM (DAB) button
7
0 (eject) button
8 4 / ¢ buttons
9 (control panel release) button
p DISP (display) button
• Also functions as SSM buttons when pressed
together with M (MODE) button.
q M (MODE) button
• Also functions as SSM buttons when pressed
together with DISP (display) button.
w SEL (select) button
e EQ (equalizer) button
r MO (monaural) button
t Number buttons
y RPT (repeat) button
u RND (random) button
• Functions only when connecting to a CD changer.
i T (TP/PTY: traffic programme/programme
type) button
o TAPE (CD-CH: CD changer) button
;
∞ (down) button
Display window
a EQ (equalizer) indicator
s LOUD (loudness) indicator
d Tape–in indicator
f TAPE indicator
g CD-CH (CD changer) indicator
h FM band indicators (FM1, FM2, FM3)
j AM band indicator
k Tuner reception indicators
MO (monaural), ST (stereo)
l RDS indicators
AF, REG, TP, PTY
/ MP3 indicator
• Lights up only when playing an MP3 disc on a
JVC MP3-compatible CD changer.
z (disc) indicator
• Lights up only when connecting to a CD changer.
x Volume (or audio) level indicator
c Main display
v RND (random) indicator
• Lights up only when connecting to a CD changer.
b RPT (repeat) indicator
4 1 2 3 7 5
t p 9 r u y q i o ; w
8 6
c
a s h g k
v b
d j l / z x f
e
Display window
