Page 27

27
Ⅵ Video input
HD SDI IN ×1
Ⅵ Audio input
AES/EBU IN ×1
Ⅵ Synchronized input
REF IN ×1
Ⅵ Video output
MONITOR OUT ×1
ASI OUT ×2
Dolby™ Digital(AC-3) Pass
Through
Ⅵ Interface
Ⅵ Power supply
Ⅵ Power consumption
Ⅵ Allowable operating temperature
Ⅵ Allowable storage temperature
Ⅵ Allowable operating humidity
Ⅵ Mass
Ⅵ Instruction Manual .............. ×1
Ⅵ Power cord (2.4 m) ................... ×1
Ⅵ Screws for mounting rack ... ×4
Ⅵ Label ................................... ×1
SMPTE292M (common for 1080i/720p)
SMPTE299M (Embedded Audio)
800 mVp-p, 75 Ω (BNC unbalanced)
1080i:1920 × 1080 frame frequency 29.97Hz
720p:1280 × 720 frame frequency 59.94Hz
AES/EBU
(48 kHz sampling frequency synchronized with video
signal)
1 Vp-p, 75 Ω (BNC unbalanced)
SMPTE259M
800 mVp-p, 75 Ω (BNC unbalanced)
SMPTE292M(common for 1080i/720p)
800 mVp-p, 75 Ω (BNC unbalanced)
DVB/ASI(188byte format,packet mode)
800 mVp-p, 75 Ω (BNC unbalanced)
Channel : 1-5.1 channel
Sampling : 48 kHz
Bit rate
: 56 kbps to 640 kbps
RS-232C ×1
AC 120 V 50 Hz/60 Hz
70 W , 0.6 A
5 °C to 40 °C
–20 °C to 60 °C
30 % to 80 %
Approx. 10 k˝
*Dolby is a trademark of Dolby Laboratories.
*Specifications and appearance of this unit are subject to change for improvement without prior notice.
Video encoding profile
1080i MP@HL
1920 × 1080 59.94 Hz
1080i MP@HL
1440 × 1080 59.94 Hz
1080i MP@HL
1280 × 1080 59.94 Hz
720p MP@H14L 1280 × 720 59.94 Hz
Video bit rate
9Mbps~40 Mbps
9Mbps~40 Mbps
9Mbps~40 Mbps
9Mbps~40 Mbps
384 kbps
256 kbps
192 kbps
48 kHz
MPEG-2
(ISO/IEC13818-2)
MPEG-1 Layer 2
(ISO/IEC11172-3)
192 kbps
128 kbps
96 kbps
48 kHz
Specifications

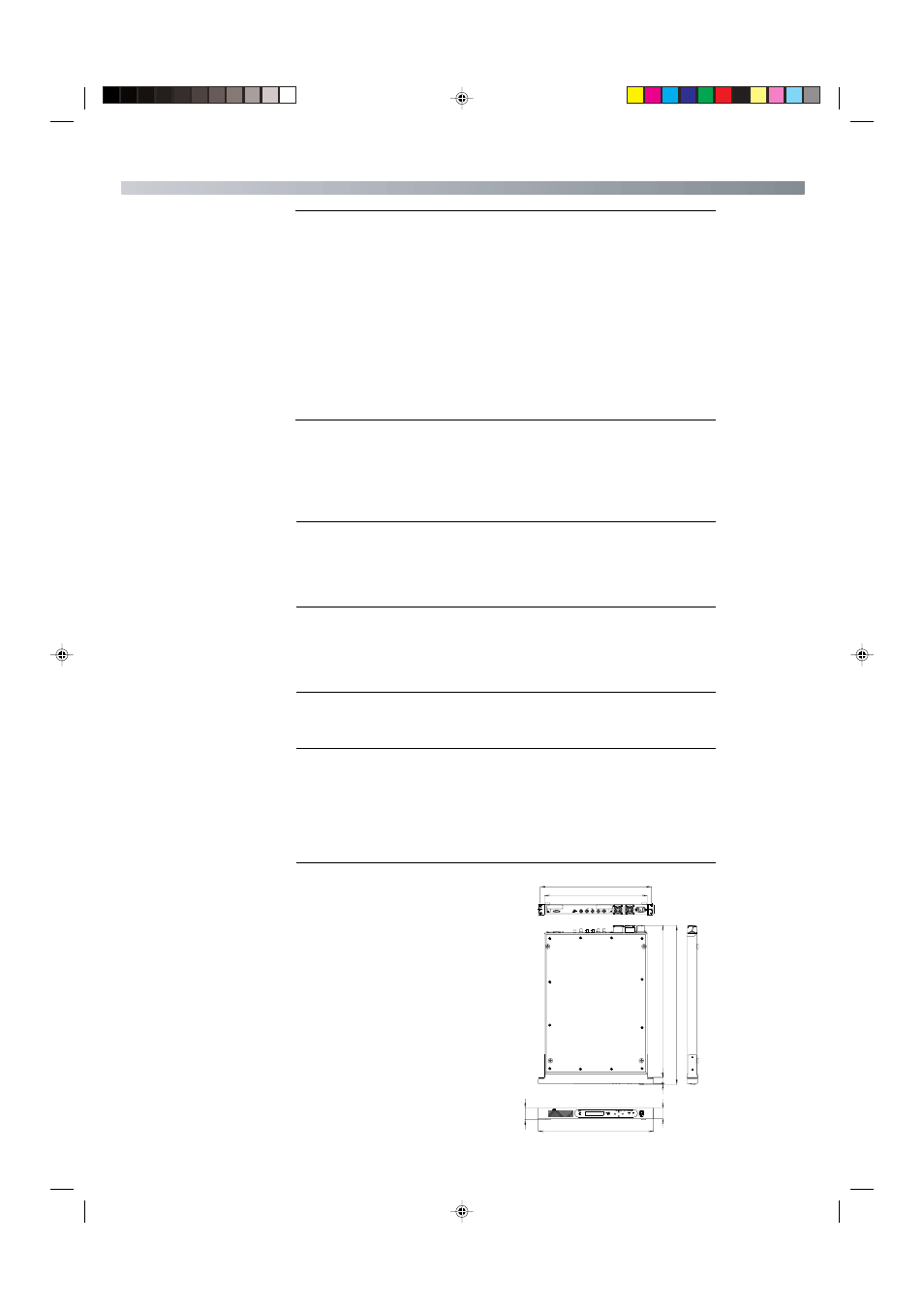

POWER
ON
OFF
44
5
665
430
49
482
465
25
635
SDI
HD-
2
ASI OUT
REF IN(D1)
OUT
1
MONI
IN
AES/EBU IN
RS-232C
AC 120V ~ 50/60Hz
ⅷ Stereo mode
Bit rate
Sampling
ⅷ Single mode
Bit rate
Sampling
[unit : mm]
