10
Foot
EIA Rack
Front Panel
POW ER
ON OFF
POW ER ON OFF
Do not remove the mounting bracket.The
mounting may become unstable due to
loosen screws. In addition, if the mounting
direction of the bracket is wrong, it will be
extremely dangerous as the bracket will not
be properly mounted onto the rack.
Caution Caution

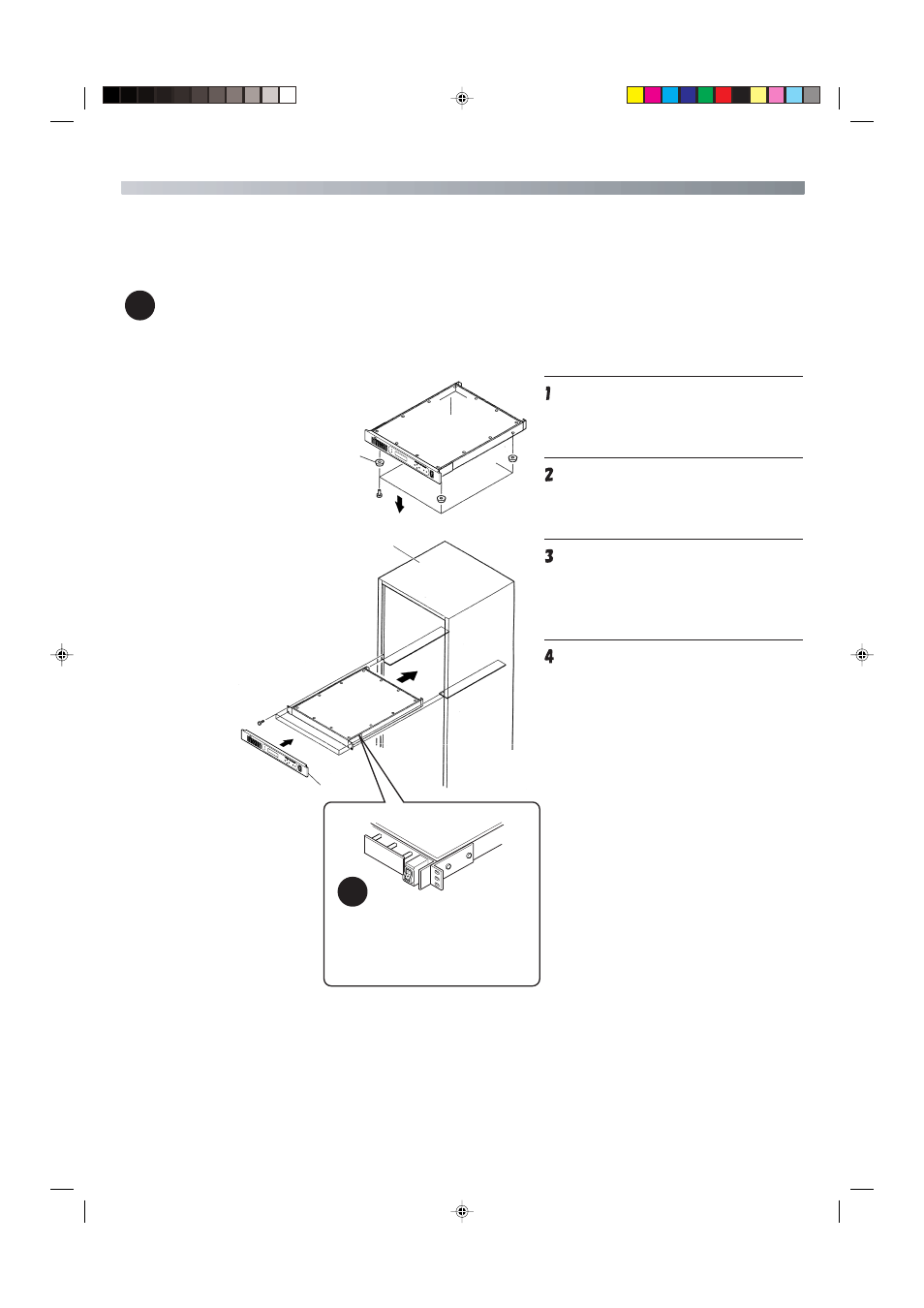

By making use of the hole on inner side of front panel, this unit can be mounted to EIA rack.
• When mounting this unit to
rack, mount the L shape
bracket to both ends of the
rack to ensure strength.
• When mounting to the rack,
mount it in the way such that
this unit will not protrude out
from the rack.
(The depth of the rack should
be at least 700 mm)
Remove the foot
Remove the front panel
Mount this unit to rack using the supplied
4 screws
Return the front panel to its original sta-
tus
Mounting to a Rack
Caution Caution
