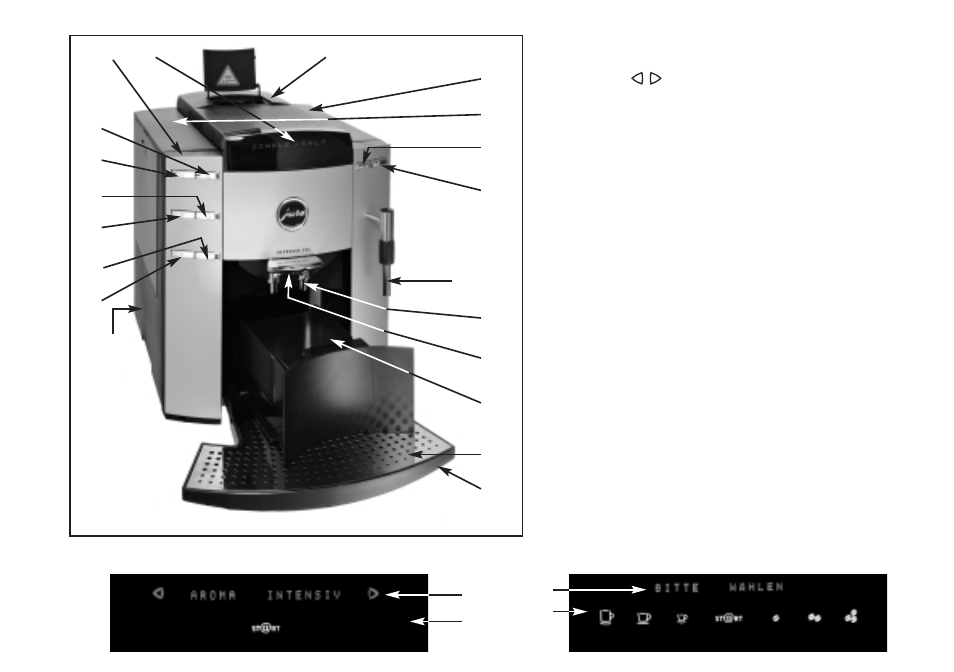

Control elements
A) Display dialog system
B) Symbols
(navigation in programming mode)
C) Large cup
D) Coffee
E)
Espresso
F) Start (to start the draw-off operation)
G) Coffee strength «mild»
H) Coffee strength «Normal»
I)
Coffee strength «strong»
1 Programming key
2 Selection key for pre-ground coffee
3 Draw-off key 1 cup
4 Draw-off key 2 cups
5 ON/OFF key
6 Maintenance key
7 Connectivity socket
8 Control panel
9 Filler funnel key for pre-ground coffee
10 Bean tank cover
11 Water tank with handle
12 Water portion draw-off key
13 Steam portion draw-off key
14 2-stage frothing jet (Fig. 7)
15 Replaceable hot water jet
16 Height-adjustable coffee spout
17 Cup illumination (Fig. 10)
18 Coffee grounds container
19 Drip grate
20 Drip tray
21 Power switch
