JL Audio STEALTHBOX SB-VW-NB/10W3 User Manual
Page 2
Stealthbox SB-VW-NB/10W3
Stealthbox 2000
Sheet SKU#011143 Revision 03/15/01

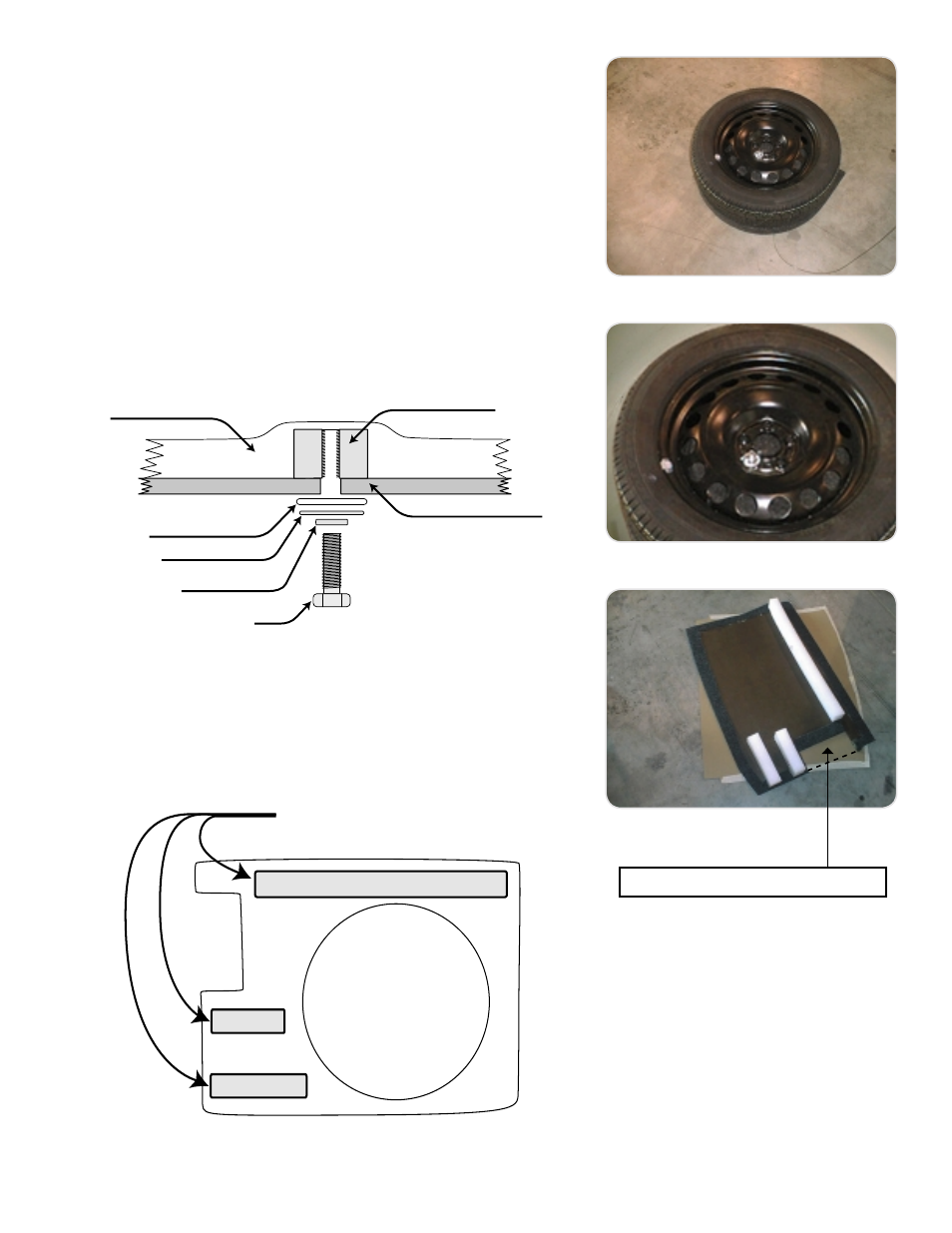

STEP 8: Place the spare tire on the Stealthbox so that the
threaded stud goes through one of the lug bolt holes in
the wheel and secure it with the provided 1/2” wing nut
and 1/2” fender washer.
STEP 9: Place the Stealthbox into the spare tire well and
bolt it into place, through the hole drilled in Step #7, as
shown in Diagram #1.
STEP 10: Place supplied fl oor with foam blocks (shown in
Picture #6) in the vehicle as the new fl oor. This new,
raised fl oor allows clearance for the Stealthbox.
CAUTION: This new fl oor may need to be cut (as shown
in Picture #6) to allow for a CD changer if one is
present in the vehicle.
Picture #5
Picture #6
ENCLOSURE WALL
THREADED INSERT
VEHICLE SHEET METAL
FENDER WASHER
BOLT
SILICONE SEALANT
LOCK WASHER
Diagram #1
Diagram #2
FOAM BLOCKS
SPARE TIRE WELL
Picture #4
Example of CD changer area
