Page 19
G
Extended Drawbar
I
Standard Drawbar
A
B
C
E
O
F
SPEED
DRAWBAR PULL X 1000 lb. (N) (kg)
lb.
5
10
15
20
25
30
35
40
45
50
55
60
65
70
75
N
40
80
120
160
200
240
280
320
750J / LT
750J LGP
km/h
0
2
4
6
8
10
12
0 1 2 3 4 5 6 7 8
32
28
24
20
16
12
8
4
CRAWLER SPEED
VS
GROUND PULL
Usable pull will depend
on traction and weight of tractor.
mph
kg
Rear Ripper
750J / 750J LT / 750J LGP
Multi-shank (3) parallelogram ripper with hydraulic pitch adjustment and ESCO ripper tips
Weight . . . . . . . . . . . . . . . . . . . . . . . . . 3,725 lb . (1690 kg)
P
Maximum Penetration . . . . . . . . . . . . . . 27 in . (686 mm)
Q
Maximum Clearance Under Tip . . . . . . . 27 in . (686 mm)
R
Overall Length (lowered position) . . . . . 5 ft . 7 in . (1689 mm)
R
|
Overall Length (raised position) . . . . . . 4 ft . 9 in . (1448 mm)
S
Overall Beam Width . . . . . . . . . . . . . . . 7 ft . 0 in . (2134 mm)
T
Slope Angle (full raise) . . . . . . . . . . . . . 22 deg .
U
Ripping Width . . . . . . . . . . . . . . . . . . . . 6 ft . 2 in . (1880 mm)
V
Distance Between Shanks . . . . . . . . . . 35 .5 in . (902 mm)

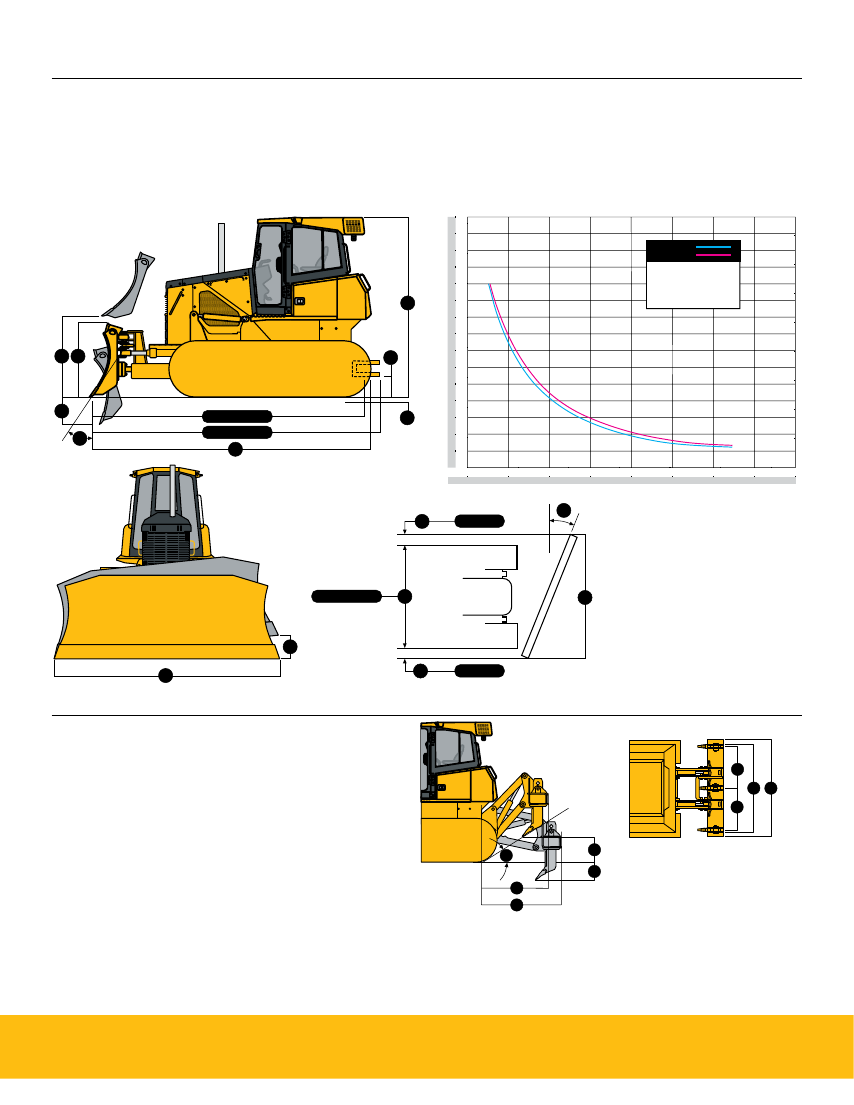

Machine Dimensions
(continued)
750J
750J LT
750J LGP
Blade Type . . . . . . . . . . . . . . . . . . . . . . . . PAT
Outside dozer
PAT
PAT
J
Overall Width with Blade Angled . . . . . . 9 ft . 10 .9 in .
N/A
9 ft . 10 .9 in . (3020 mm)
11 ft . 10 .9 in . (3631 mm)
(3020 mm)
K
Blade Angle . . . . . . . . . . . . . . . . . . . . . 23 .5 deg .
N/A
23 .5 deg .
23 .5 deg .
L
Cut Reach . . . . . . . . . . . . . . . . . . . . . . . 4 .3 in . (108 mm)
N/A
4 .3 in . (108 mm)
3 .3 in . (84 mm)
M
Width Over Track . . . . . . . . . . . . . . . . . 8 ft . 0 in . (2438 mm)
8 ft . 0 in . (2438 mm)
8 ft . 0 in . (2438 mm)
9 ft . 10 in . (2997 mm)
N
Cast Reach . . . . . . . . . . . . . . . . . . . . . . 8 .8 in . (224 mm)
N/A
8 .8 in . (224 mm)
11 .7 in . (297 mm)
O
Cutting Edge Angle . . . . . . . . . . . . . . . . 55 .2–60 .1 deg .
50 .5–60 .0 deg .
55 .2–60 .1 deg .
55 .2–60 .1 deg .
H
D
M
N
L
K
J
Width Over Track
Cut Reach
Cast Reach
T
Q
P
R
|
R
V
U
S
V
