Edit From A
Camcorder
You can use a camcorder as the player and your VCR as the
recorder.

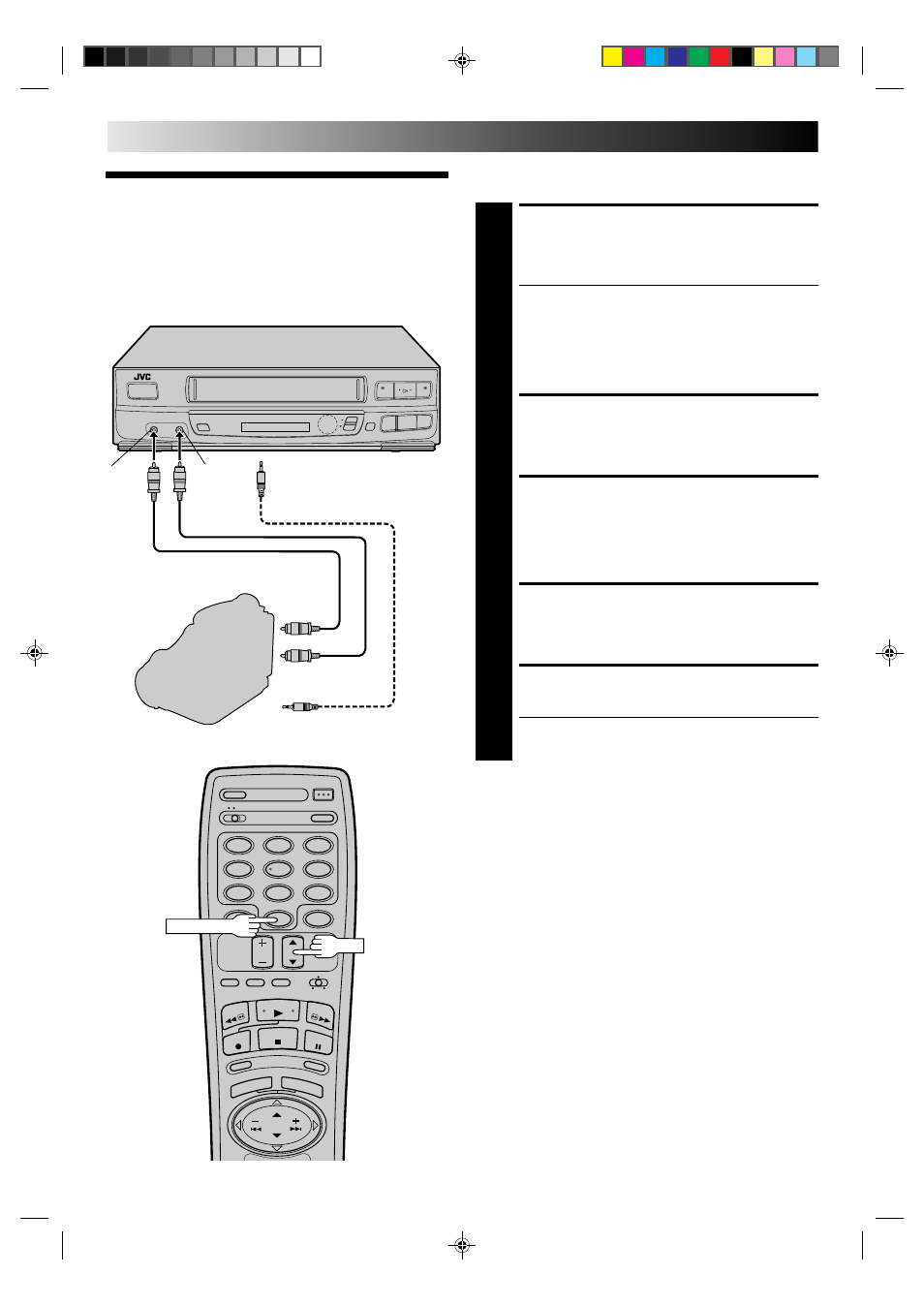

MAKE CONNECTIONS
1
Connect an AV cable (not supplied) between the
camcorder’s VIDEO OUT and AUDIO OUT connectors
and your VCR’s VIDEO IN and AUDIO IN connectors.
● When using a Hi-Fi camcorder, connect its AUDIO
OUT L connector to the AUDIO IN connector on
your VCR.
● When a Master Edit Control-equipped JVC camcorder is
used, the camcorder is capable of controlling your VCR.
The editing cable is a mono 3.5 mm mini-plug to
mono 3.5 mm mini-plug connector.
LOAD A CASSETTE
2
Insert the cassette to be recorded on into the recorder.
SET RECORDER’S INPUT
MODE
3
Press NUMBER key “0” to set to AUX.
START PLAYER
4
Set the camcorder to its play mode.
START RECORDER
5
Set your VCR to its record mode.
● Refer to camcorder/VCR's instruction manual for
operation instructions.
Recorder
Your VCR
Camcorder
Player
VIDEO
OUT
1
2
4
5
3
6
8
0
7
9
CH
NUMBER "0"
Editing cable (not supplied)
(JVC camcorder only)
EDIT
To rear panel PAUSE
connector
EDITING (cont.)
VIDEO
IN
AUDIO
IN
AUDIO OUT
