4

Main Functions

1. Multi-browsing

Simultaneous connections to multiple V.NETWORKS units.

Simultaneous browsing of up to 16 units (With the VN-S100U, up to 4
cameras can be browsed.)

2. Recording

The displayed V.NETWORKS images can be saved as successive still
images.

Variable saving interval.

Timer recording. (This function is for exclusive use with the VN-S200U.)

3. PLAY BACK

Playback of recording by simply specifying the time and date.

Simultaneous display of saved time.

4. Pop-up

Ctrl + double clicking on a window showing a V.NETWORKS image, displays
a magnified image in another window.

5. Snapshot

Saving of still images in desired folders (up to 16 images).

6. Auto dial-up

When a V.NETWORKS unit on WAN is registered, it can be connected by
automatic dial-up.

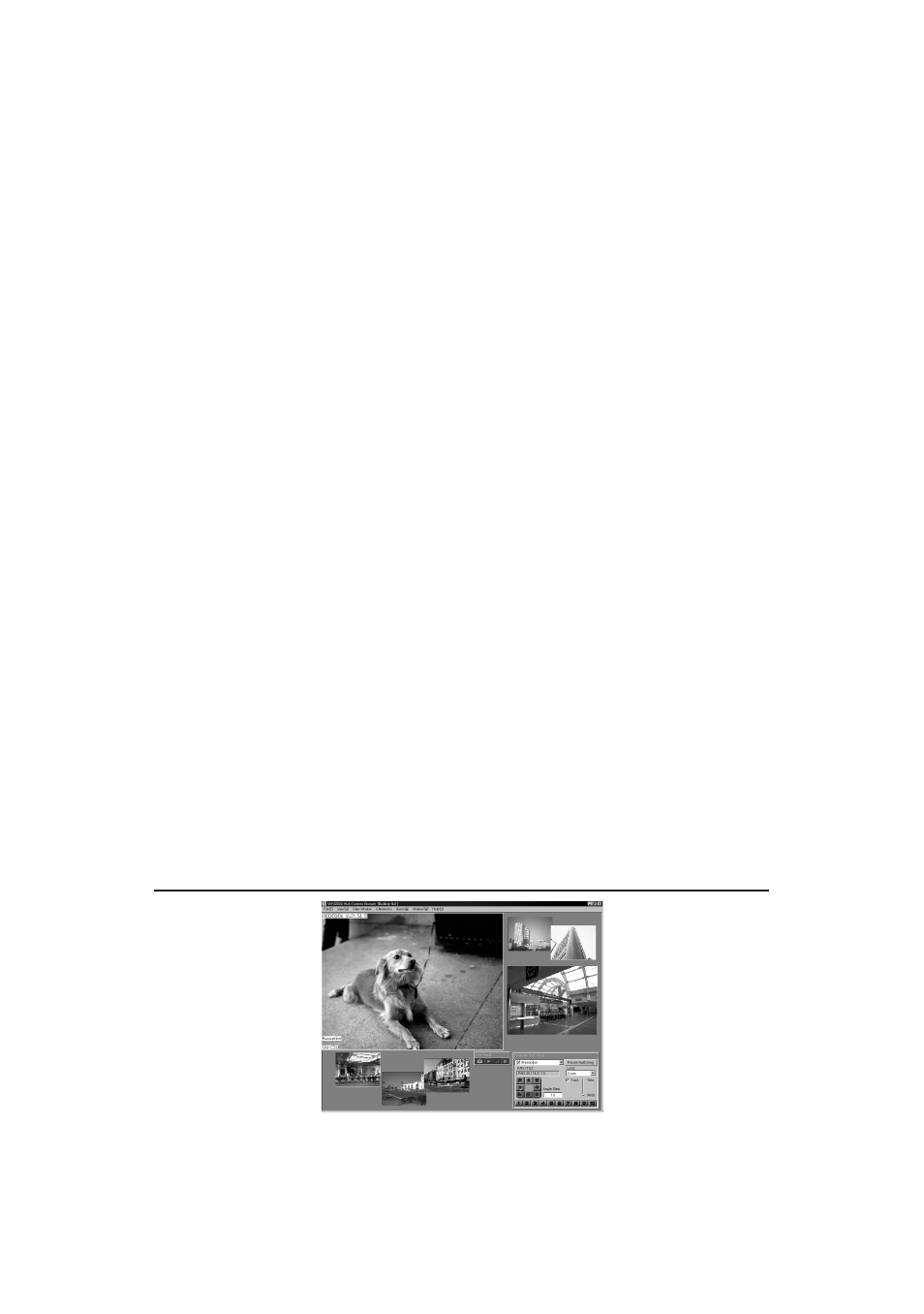

Overall View of MULTI CAMERA BROWSER Screen

Figure 1

NOTE) Fig. 1 shows the overall view with the VN-S200U.

With the VN-S100U, up to four images can be displayed in the View window.
