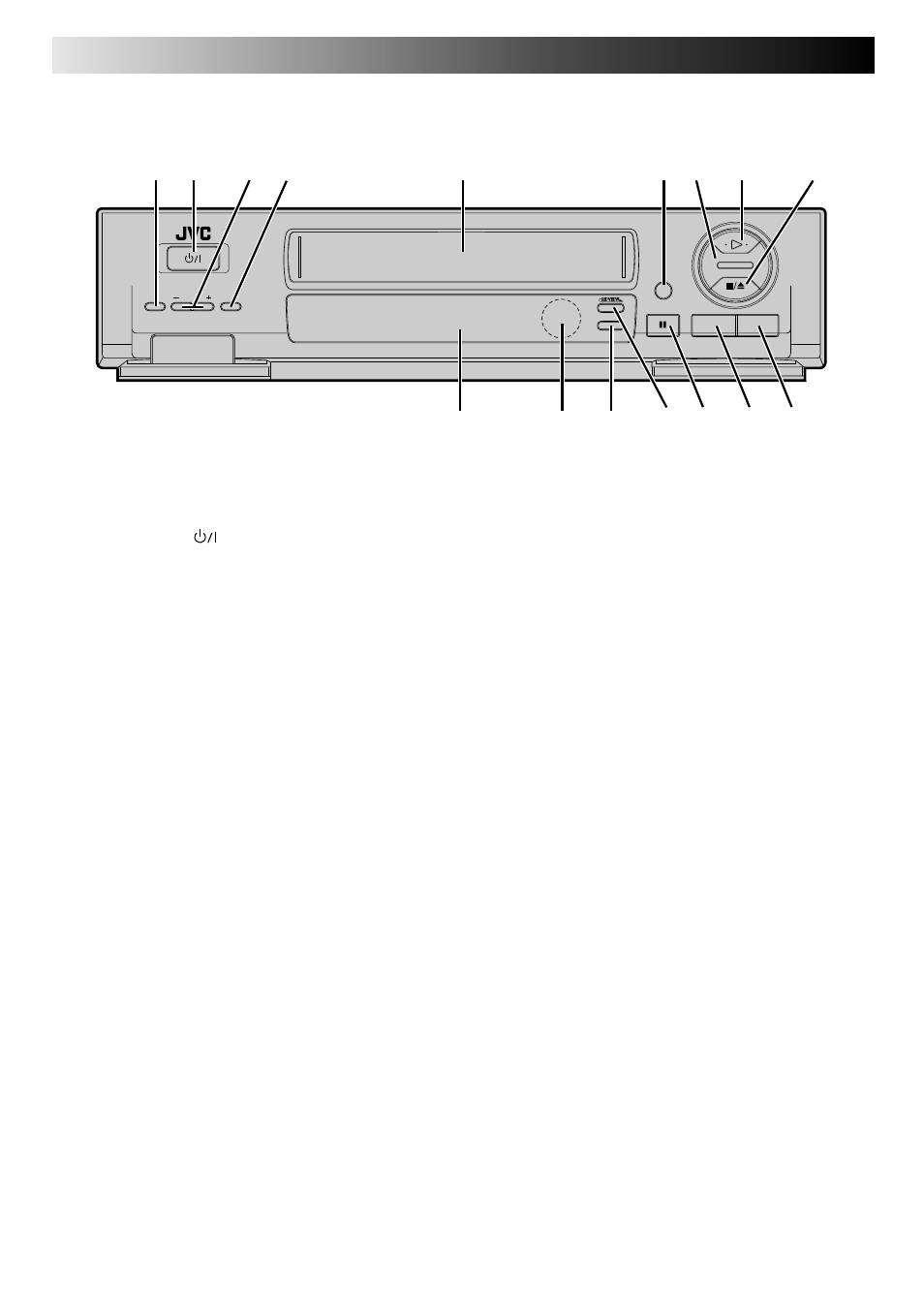

FRONT VIEW
INDEX
INDEX
SP/ LP
q
TIMER
STANDBY/ON
TV PROG
COUNTER
RESET
¢ ¢
1 ¡
2 5 8 7 6 1 3 4 9
! @ 0 # $ % ^
1 TIMER Button engages timer standby mode.
੬
pg. 23, 25
2 STANDBY/ON Button turns recorder on/off
(loading a cassette also turns power on).
੬
pg. 8
3 TV PROG. +/– Buttons select a preset position.
੬
pg. 18
4 COUNTER RESET Button resets counter to
0:00:00.
੬
pg. 19
5 Cassette Loading Slot is where cassette is
inserted; door closes, "cassette loaded" indicator
lights up on front display panel.
6 RECORD Button starts regular recording (press
once), Instant Timer Recording (press twice);
sets duration of ITR.
੬ pg. 18, 19
7 INDEX Button initiates Index Search. ੬ pg. 15
8 PLAY Button plays back tape ੬ pg. 12; cancels
Pause, Still, Slow, Search modes.
੬
pg. 13
9 STOP/EJECT Button stops tape; ejects tape
during Stop mode.
੬
pg. 12
0 Display Panel provides clear view of various
displays and indicators.
੬
pg. 52
! Infrared Beam Receiving Window is where
remote control should be aimed when in use.
@ SP/LP Button selects tape speed.
੬
pg. 18
# REVIEW Button "reviews" timer-recorded
programme.
੬
pg. 14
$ PAUSE Button stops tape temporarily during
recording ੬ pg. 18; stops tape temporarily
during playback; plays back frame by frame
with each additional press.
੬ pg. 13
% Rewind [REW] Button rewinds the tape
੬
pg. 12;
initiates high-speed reverse search.
੬
pg. 13
^ Fast Forward Button fast-forwards tape ੬ pg. 12;
initiates high-speed forward search.
੬ pg. 13
