Installation on wall
This monitor can be installed on walls with Wall Mounting Unit (TS-CV10WG) made by JVC of another sales.
Moreover, another wall mounting unit, in accordance with VESA standard on markets can be also used.
Note：
● Please request the installation on the wall to a special engineer.
When installing a wall mounting unit in the rear of the monitor , detach the stand according to the following procedure.

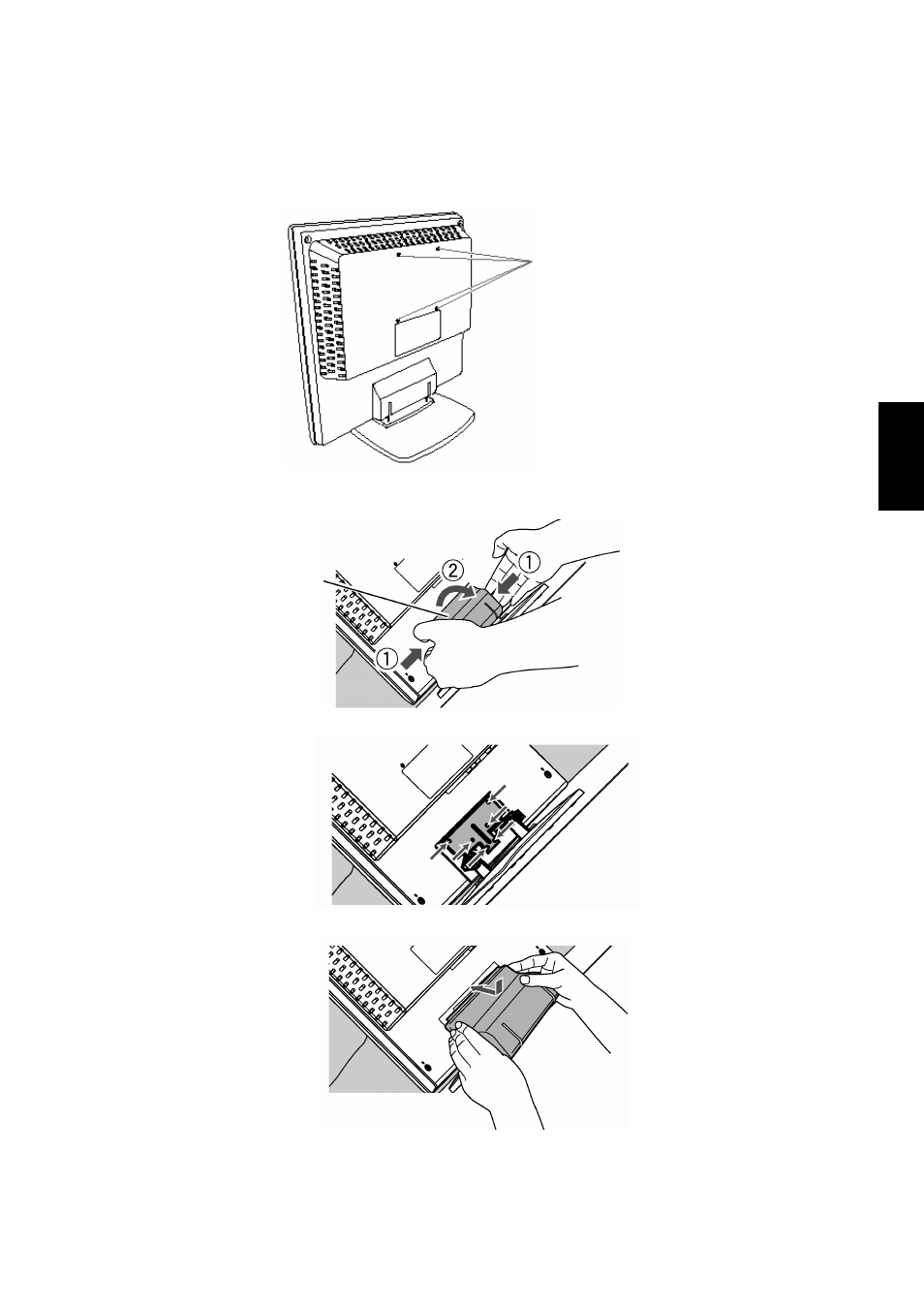

1. Detach the hinge cover in the rear of the monitor.
2. Detach the stand by detaching the screws which fix the stand.
3. Attach the hinge cover detached in step1.
Note for when installing the monitor on the wall by using the VESA mounting holes on the rear of the
monitor:
Depending on the wall mounting unit which you use, the hinge cover may hit the wall when you tilt the monitor
forward. In that case, detach the hinge cover.
VESA mounting holes
Hinge cover
