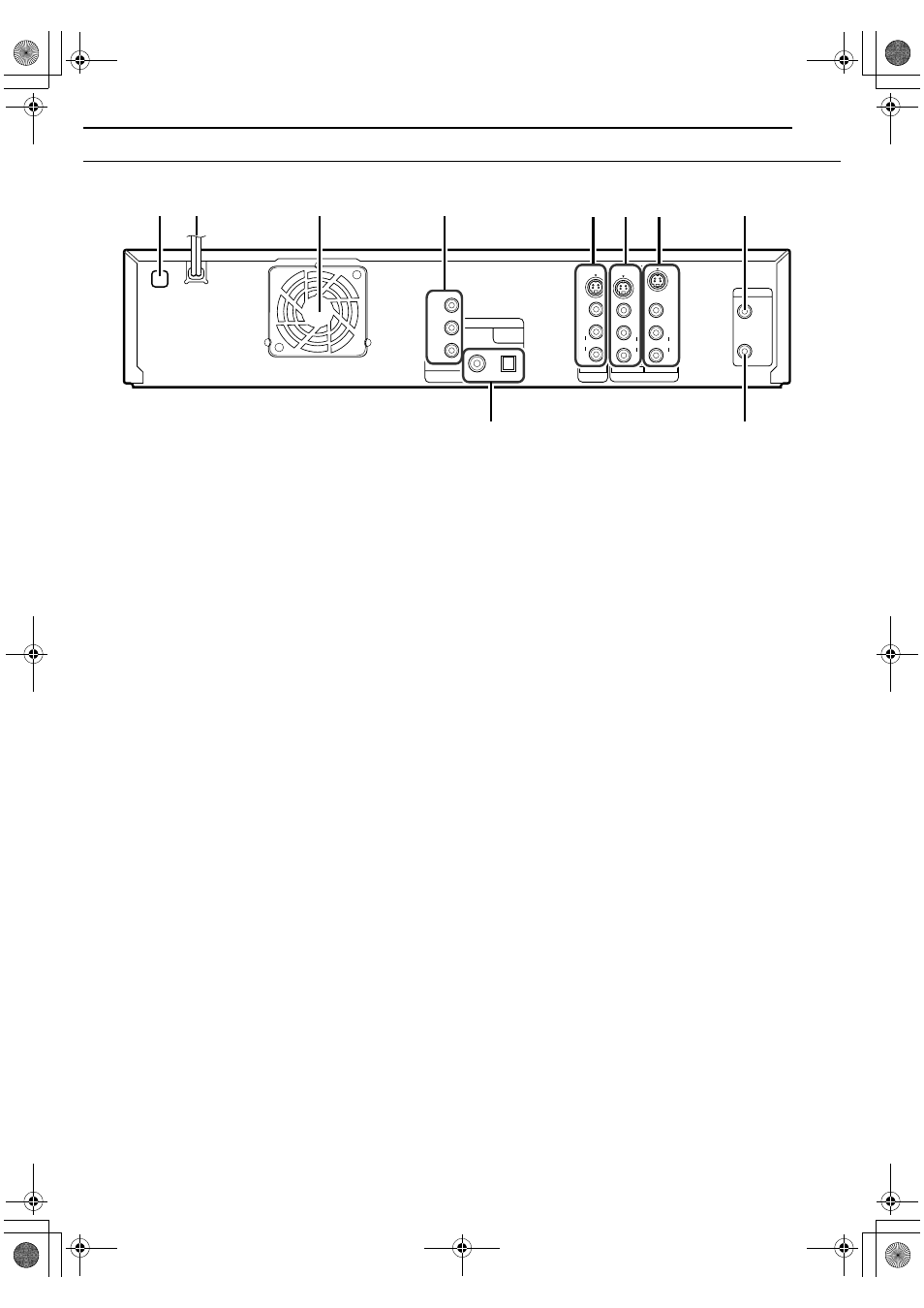

Rear View
A Region Number A pg. 8
B AC Power Cord A pg. 18
C Cooling Fan
●
This prevents the temperature from rising inside the unit.
Do not remove it.
●
Install the unit so as not to block the area around the fan.
●
The unit may become hot when it is turned off, as the cooling
fan on the rear of the unit is not activated. However, the cooling
fan may be activated in the following cases;
^ When AAUTO CLOCKB is set to AONB. (A pg. 21)
(Set
AAUTO CLOCKB to AOFFB if you mind the noise of the
fan.)
D Component Video Output Connectors [COMPONENT
VIDEO OUT (Y/P
B
/P
R
)] (HDD & DVD deck only) A pg. 18
E S-VIDEO/VIDEO/AUDIO OUTPUT Connectors (HDD & DVD
deck only)
●
These connectors only output DVD/HDD signal and can be
used to connect to a second monitor.
F S-VIDEO/VIDEO/AUDIO INPUT Connectors (L-1) A pg. 63
G S-VIDEO/VIDEO/AUDIO OUTPUT Connectors (DV, HDD &
H Antenna Input Connector [ANTENNA IN] A pg. 18
I Digital Audio Output Connectors
[DIGITAL AUDIO OUT (OPTICAL/COAXIAL)] (HDD & DVD
deck only) A pg. 64, 69
J Antenna Output Connector [ANTENNA OUT] A pg. 18
ANTENNA
OUTPUT
DV/HDD/DVD
INPUT L-1
OPTICAL
HDD/DVD
L
R
DIGITAL
AUDIO OUT
COMPONENT
VIDEO OUT
VIDEO
S VIDEO
S VIDEO
AUDIO
VIDEO
AUDIO
PCM/
STREAM
L
R
COAXIAL
Y
P
B
P
R
IN
OUT
OUTPUT
HDD/DVD
L
R
AUDIO
VIDEO
S VIDEO
A
C
D
B
H
J
I
E
G
F
