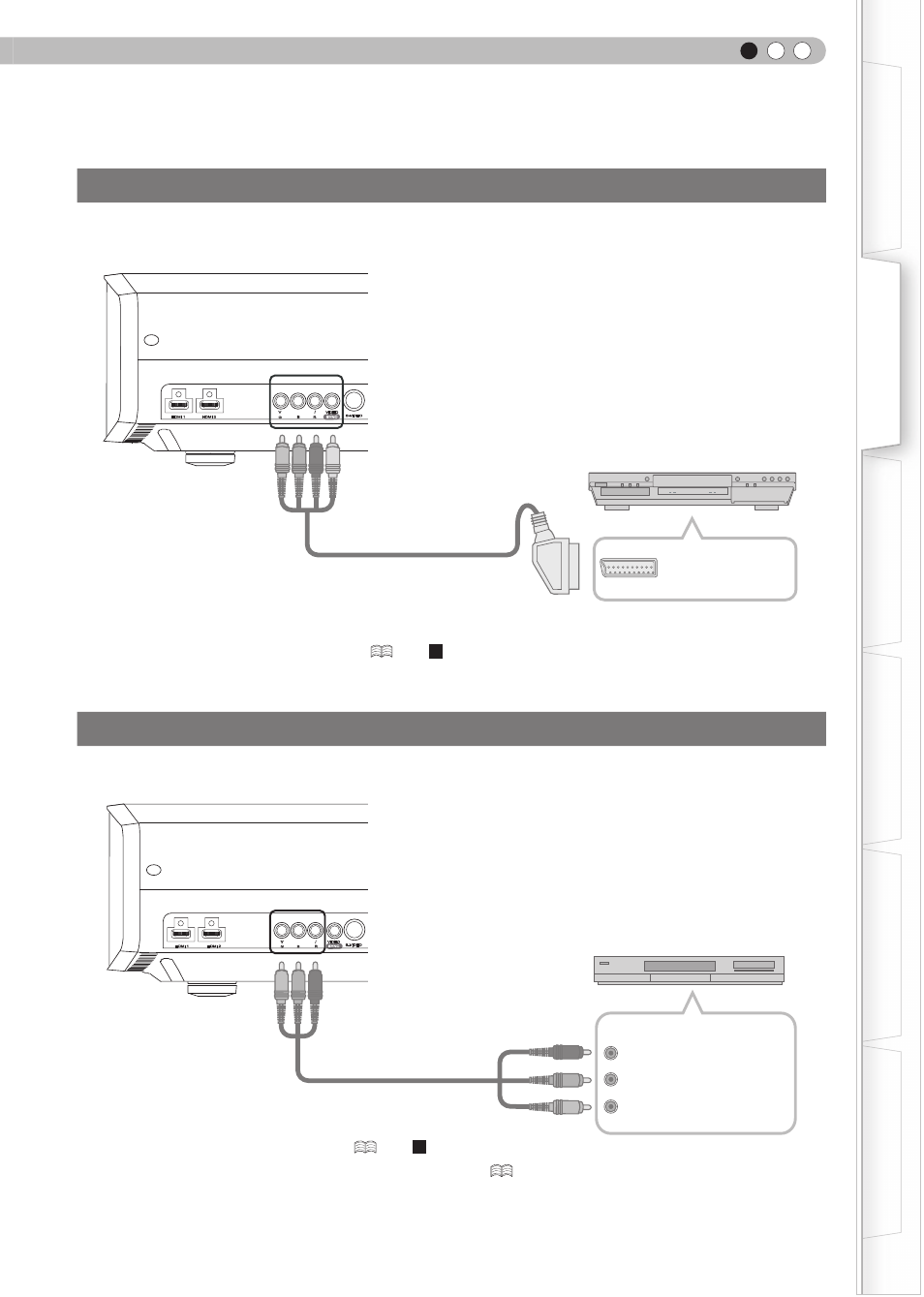

Connecting via SCART-RCA Cable
●
Set “COMP.” in the setting menu to “SCART”.( P33 - 12 )
Connecting via RGB Video Cable
●
Set “COMP.” in the setting menu to “RGB”.( P33 - 12 )
●
For information on compatible input signals, see “Specifications”. ( P56)
HDMI 1 HDMI 2 S-VIDEO RS-232C Y
R
VIDEO
SYNC
C B /P B C R /P R
B G
This unit
To RGB video input terminals
RGB video cable
(sold separately)
R(Red)
B(Blue)
G(Green)
(Includes sync signals)
RGB video output terminals
Device equipped with RGB output
HDMI 1 HDMI 2
VIDEO
S-VIDEO RS-232C Y
R SYNC
C B /P B C R /P R
B G
This unit
BD/DVD player for European market
SCART terminal
SCART-RCA cable
(sold separately)
To RGB video and
sync signal input terminals
