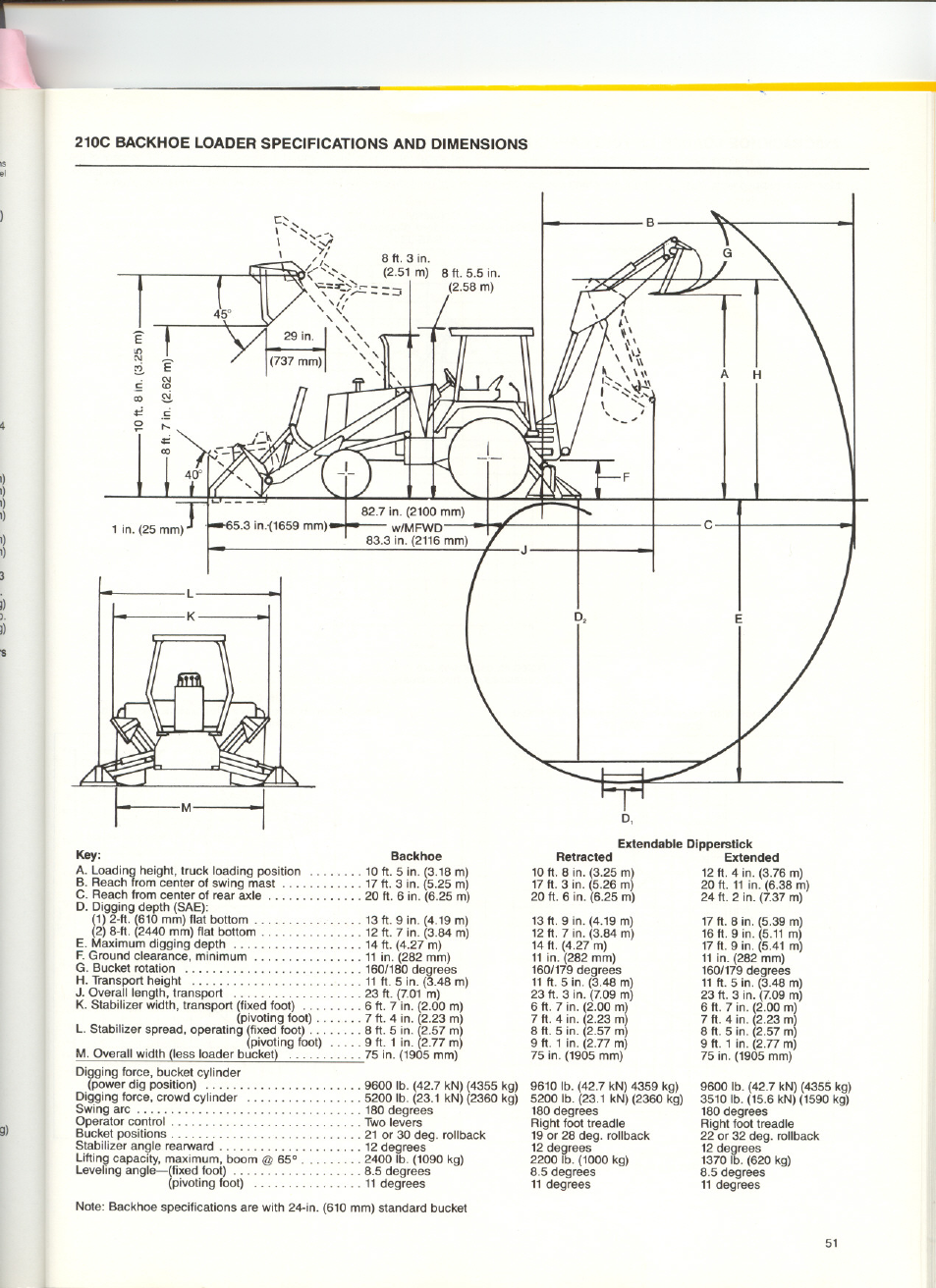

210C BACKHOE LOADERSPECIFICATIONS AND DIMENSIONS

t:~

'~-..,;

'r/

/~(,

<: "~,

";:::::1'"'-, - -

\.'

7',;- -

-::;

't./

, ,

, II,

8 ft. 3 in.

(2.51

I)
I)
I)
I)

1)
1)

I)
).
j)

Key:

Backhoe

A. Loading height, truck loading position.

. . . . . . . 10 ft. 5 in. (3.18 m)

B. Reach from center of swing mast. . . . . . . . . . . . 17 ft. 3 in. (5.25 m)

C. Reach from center of rear axle. . . . . . . . . . . . . . 20 ft. 6 in. (6.25 m)

D. Digging depth (SAE):

(1) 2-ft. (610 mm) flat bottom. . . . . . . . . . .. . . . . 13 ft. 9 in. (4.19 m)

(2) 8-ft. (2440 mm) flat bottom. . . . . . . . . . . . . . . 12 ft. 7 in. (3.84 m)

E.Maximumdiggingdepth

14ft.(4.27m)

F. Ground clearance, minimum.

. . . . . . . . . . . . . . . 11 in. (282 mm)

G.Bucketrotation

160/180degrees

H. Transport height

11ft.5in.(3.48m)

J. Overall length, transport.

. . . . . . . . . . . . . . . . . . 23 ft. (7.01 m)

K. Stabilizer width, transport (fixed foot)

6 ft. 7 in. (2.00 m)

(pivoting foot) . . . . . . . 7 ft. 4 in. (2.23 m)

L. Stabilizer spread, operating (fixed foot) . . . . . . . . 8 ft. 5 in. (2.57 m)

(pivoting foot)

9 ft. 1 in. (2.77 m)

M. Overall width (less loader bucket)

75 in. (1905 mm)

Digging force, bucket cylinder

(power dig position)

9600Ib.(42.7kN)(4355kg)

Digging force, crowd cylinder.

. . . . . . . . . . . . . . . . 5200 lb. (23.1 kN) (2360 kg)

Swing arc

180degrees

Operatorcontrol

Twolevers

Bucketpositions.

..21 or30deg.

rollback

Stabilizer angle rearward. . . . . . . . . . . . . . . . . . . . . 12 degrees

Liftin!il capacity, m?ximum, boom @ 65° . . . . . . . . . 2400 lb. (1090 kg)

Leveling angle-(flxed

foot) . . . . . . . . . . . . . . . . . . . 8.5 degrees

(pivoting foot)

11degrees

Note: Backhoe specifications are with 24-in. (610 mm) standard bucket

'\,

t \ \

\\,

I~, \..,~

~~.,.

'....

Extendable

Dipperstick

Retracted

Extended

10 ft..8 in. (3.25 m)

12 ft. 4 in. (3.76 m)

17 ft. 3 in. (5.26 m)

20 ft. 11in. (6.38 m)

20 ft. 6 in. (6.25 m)

24 ft. 2 in. (7.37 m)

13 ft. 9 in. (4.19 m)
12 ft. 7 in. (3.84 m)
14 ft. (4.27 m)
11 in. (282 mm)
160/179 degrees
11 ft. 5 in. (3.48 m)

23 ft. 3 in. (7.09 m)
6 ft. 7 in. (2.00 m)

7 ft. 4 in. (2.23 m)

8 ft. 5 in. (2.57 m)
9 ft. 1 in. (2.77 m)
75 in. (1905 mm)

9610 lb. (42.7 kN) 4359 kg)

5200 lb. (23.1 kN) (2360 kg)

180 degrees

Right foot treadle

19 or 28 deg. rollback
12 degrees

2200 lb. (1000 kg)
8.5 degrees

11 degrees

17 ft. 8 in. (5.39 m)
16 ft. 9 in. (5.11 m)
17 ft. 9 in. (5.41 m)
11 in. (282 mm)
160/179 degrees
11 ft. 5 in. (3.48 m)

23 ft. 3 in. (7.09 m)
6 ft. 7 in. (2.00 m)
7 ft. 4 in. (2.23 m)

8 ft. 5 in. (2.57 m)
9 ft. 1 in. (2.77 m)
75 in. (1905 mm)

9600 lb. (42.7 kN) (4355 kg)
3510 lb. (15.6 kN) (1590 kg)

180 degrees

Right foot treadle
22 or 32 deg. rollback

12 degrees

1370 lb. (620 kg)

8.5 degrees

11 degrees
