Page 43
EN
43

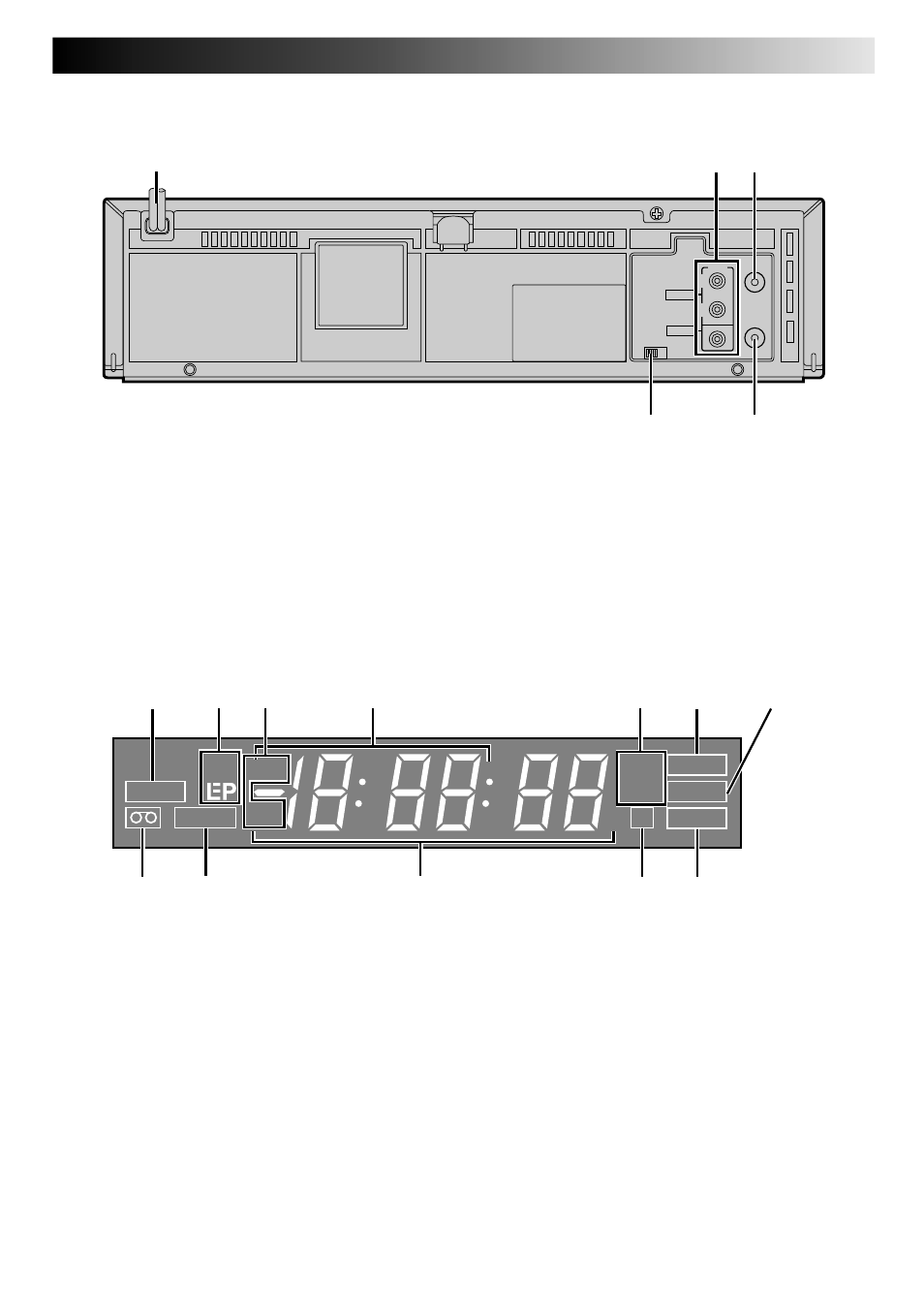

REAR VIEW
FRONT DISPLAY PANEL
ANT. IN
RF OUT
CH3 CH4
OUT
R
L
AUDIO
VIDEO
1
2
4
5
3
1 VCR Mode Indicator (
੬
pg. 26)
2 Tape Speed Indicators (
੬
pg. 16)
3 AM/PM Indicators (
੬
pg. 7)
4 Clock Display (
੬
pg. 7)
5 Multi-Channel TV Sound Indicators (
੬
pg. 27)
[HR-J640U Only]
6 Recording Mode Indicator (
੬
pg. 16)
Instant Timer Recording Indicator (
੬
pg. 32)
H
M
S
AM
PM
V C R
TIMER
SP
ST
SAP
R E C
PLAY
PAUSE
M
9
!
@
8
0
2
4
5
6
7
1
3
1 Power Cord (
੬
pg. 6)
2 VIDEO/AUDIO Output Connectors (
੬
pg. 33)
* The HR-J440U has only one AUDIO output connector.
3 ANT. IN Connector (
੬
pg. 6)
4 Channel 3/4 Switch (
੬
pg. 6)
5 RF OUT Connector (
੬
pg. 6)
7 Play Mode Indicator
8 “Cassette Loaded” Mark
9 Timer Mode Indicator
0 Channel Display [“AU” for AUX mode]
Counter Display (
੬
pg. 15)
! Counter Memory Mark (
੬
pg. 23)
@ Pause Mode Indicator
