CONTROLS AND CONNECTORS
Operation Controls
The LSS-10 and LSS-12’s operation controls are located on the unit’s front panel, as shown in
Figure 2. They function as follows:
1
.
LOW PASS Frequency Control: Use this control to set the upper frequency level that the
subwoofer will reproduce. It can be between 60 to 125 Hz. Also see SETTING UP THE
LSS-10 AND LSS-12 on page 5.
2
.
LEVEL Control: Use this control to adjust the subwoofer output level as desired.
3
.
PHASE Control: Use this control to set the subwoofer’s phase response for either 0 or
180°. Also see SETTING UP THE LSS-10 AND LSS-12 on page 5.
4
.
MODE indicator shows current status of the LSS-10 and LSS-12: Green is ON; Red is
STANDBY.
1
2
3
4

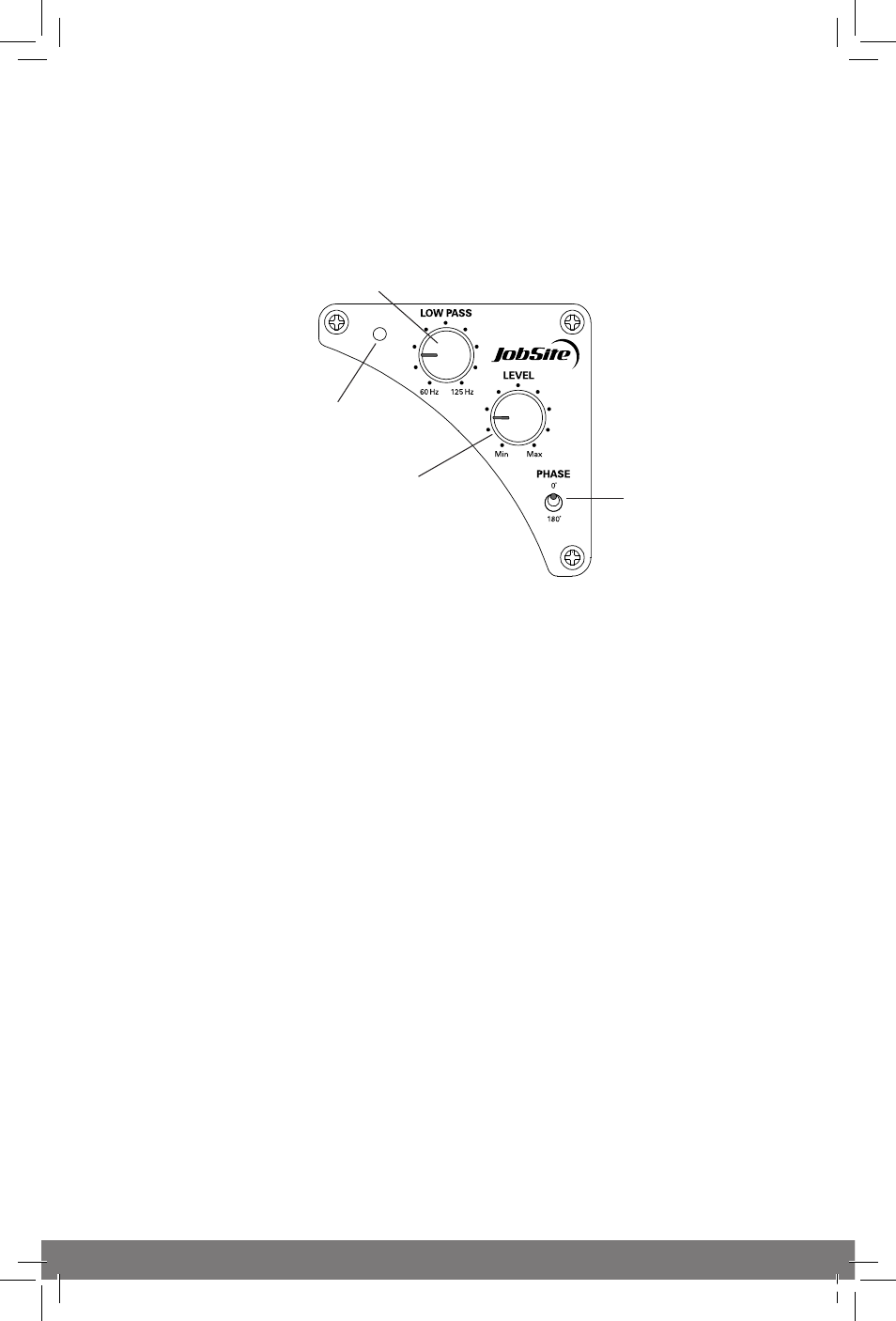

Figure 2.
The LSS-10 and LSS-12’s front panel contains the subwoofer’s operation controls.
