INSTALLATION
Signal Connectors and Power Controls

The LSS-10 and LSS-12’s signal connectors and power controls are located on the unit’s rear
panel, as shown in Figure 1. They function as follows:
NOTE: See Applications starting on page 7 for detailed wiring connections for
your application.

TRIGGER: For external power triggering, use a mini (3.5 mm) mono plug to connect the IN
jack to a power on/off trigger signal from a home theater surround sound processor or
other voltage. Source power on is 3 to 30 Vdc (or Vac). Power off is 0 Vdc (or Vac). Use
the OUT jack to pass the TRIGGER signal (at the same voltage level of the trigger input)
to another LSS-10 and LSS-12 or other equipment in your system. THIS JACK SHOULD
NOT BE USED TO POWER OTHER EQUIPMENT.

NOTE: For a system not equipped with a power trigger output, consider using a 12-volt
power supply as a trigger signal that is activated via a switched AC outlet on the receiver.

��

��

�

��

�

��

�

��

�

��

�

��

�

��

��

��

��

��

��

����

��

�

��

��
��

��

��

��

��

����

��

��

� ��

��

��

��

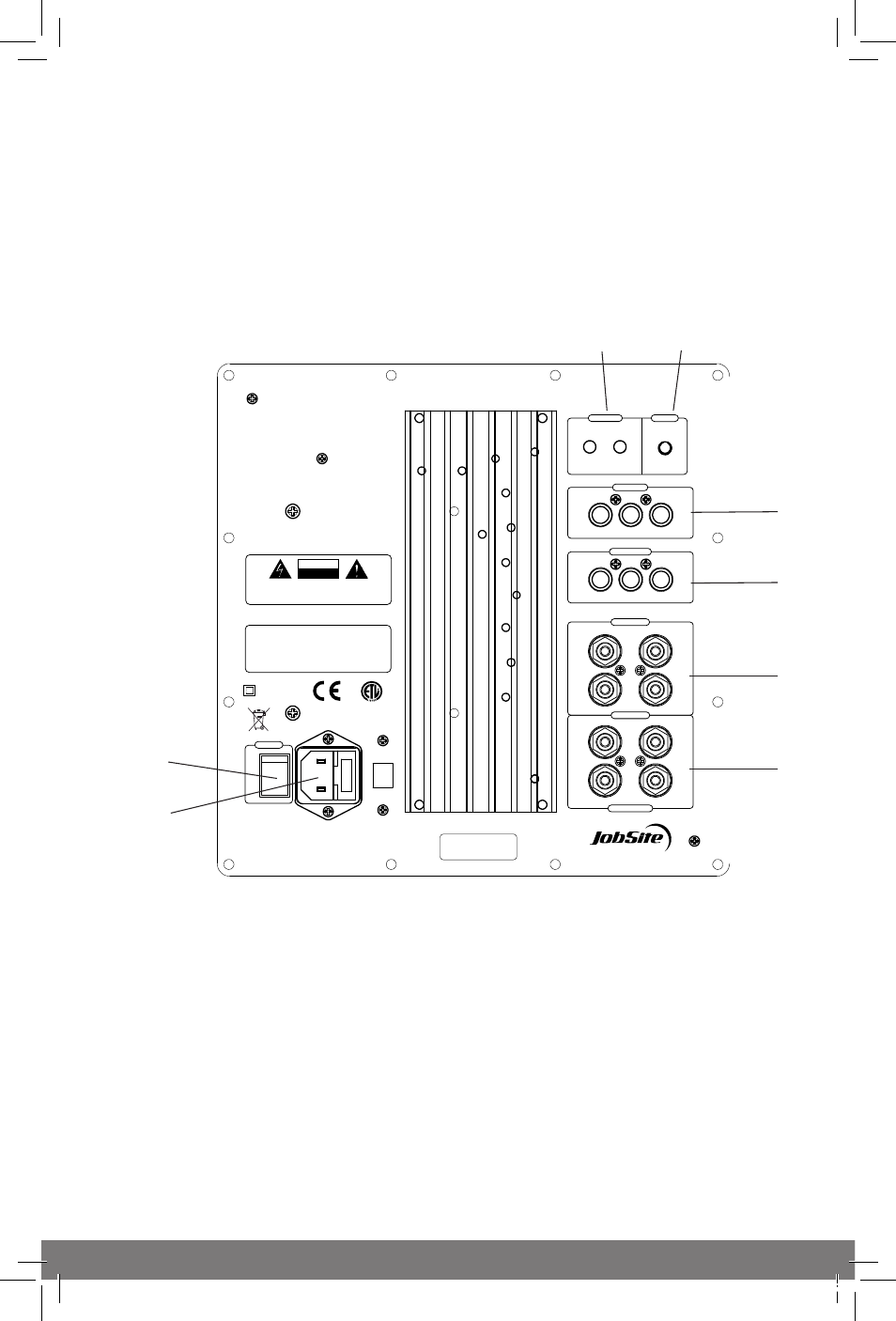

Figure 1.

The LSS-12’s rear panel contains the subwoofer’s signal connectors and

power controls. (LSS-12 Shown - LSS-10 similar)
