ENGLISH
Front & Rear Baffle Boards (x 2)
Left & Right Sides (x 2)

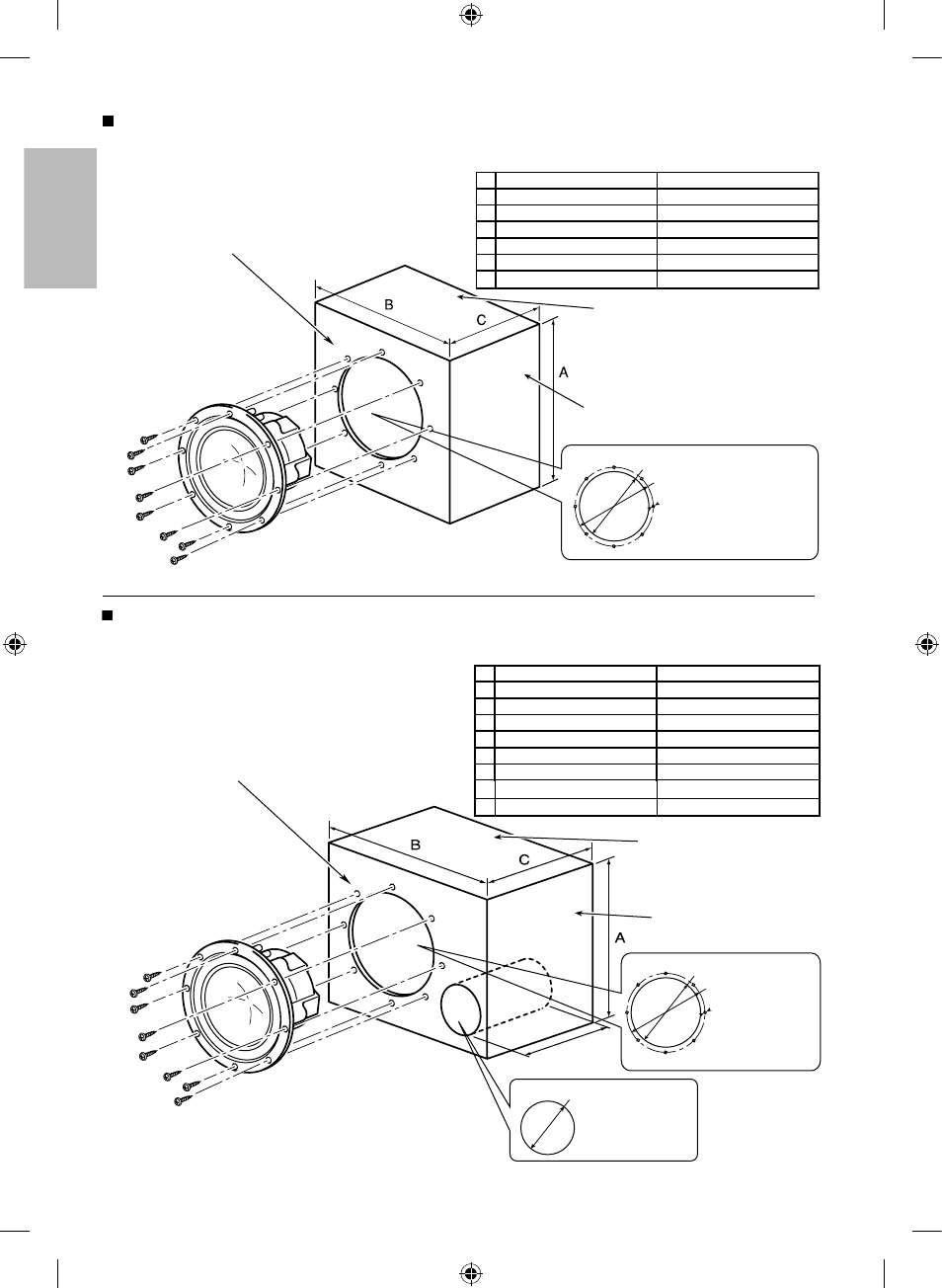

To install the sealed enclosure
When the speaker cannot be attached in the car, make the sealed enclosure as recommended
in the table below—3/4 inch (20 mm) MDF is also recommended for the enclosure materials.
Top & Bottom Sides (x 2)
* Screw: Dia. 3/16 inch (4 mm) x 1-3/16 inch (30mm) (x 8) (supplied)
* Screw: Dia. 3/16 inch (4 mm) x 1-3/16 inch (30mm)
(x 8) (supplied)
To install the ported enclosure
When the speaker cannot be attached in the car, make the sealed enclosure as recommended
in the table below—3/4 inch (20 mm) MDF is also recommended for the enclosure materials.
Front & Rear Baffle Boards (x 2)
Left & Right Sides (x 2)
Top & Bottom Sides (x 2)
Mounting Hole
Dimension
Dia. D
Dia. E
Dia. F
Port Hole
Dimension
CS‑AW6240 CS‑AW6040
A 15‑3/8 inch (400 mm) 12‑5/8 inch (320 mm)
B 15‑3/8 inch (400 mm) 12‑5/8 inch (320 mm)
C 11‑13/16 inch (300mm) 11‑1/32 inch (280 mm)
D 11‑13/32 inch (289 mm) 9‑3/8 inch (238 mm)
E 11‑29/32 inch (302 mm) 10 inch (254 mm)
F 1/8 inch (3 mm) 1/8 inch (3 mm)
CS‑AW6240 CS‑AW6040
A 15‑3/8 inch (400 mm) 12‑5/8 inch (320 mm)
B 20‑1/2 inch (520 mm) 17‑11/32 inch (440 mm)
C 11‑13/16 inch (300 mm) 11‑1/32 inch (280 mm)
D 11‑13/32 inch (289 mm) 9‑3/8 inch (238 mm)
E 11‑29/32 inch (302 mm) 10 inch (254 mm)
F
G
H
1/8 inch (3 mm) 1/8 inch (3 mm)
3‑15/16 inch (100 mm) 3 inch (76 mm)
11‑13/16 inch (200 mm) 5‑15/16 inch (150 mm)
Mounting
Hole
Dimension
Dia. D
Dia. G
Dia. E
Dia. F
*
*
*
*
*
* *
*
H
*
*
*
*
*
* *
*
3
