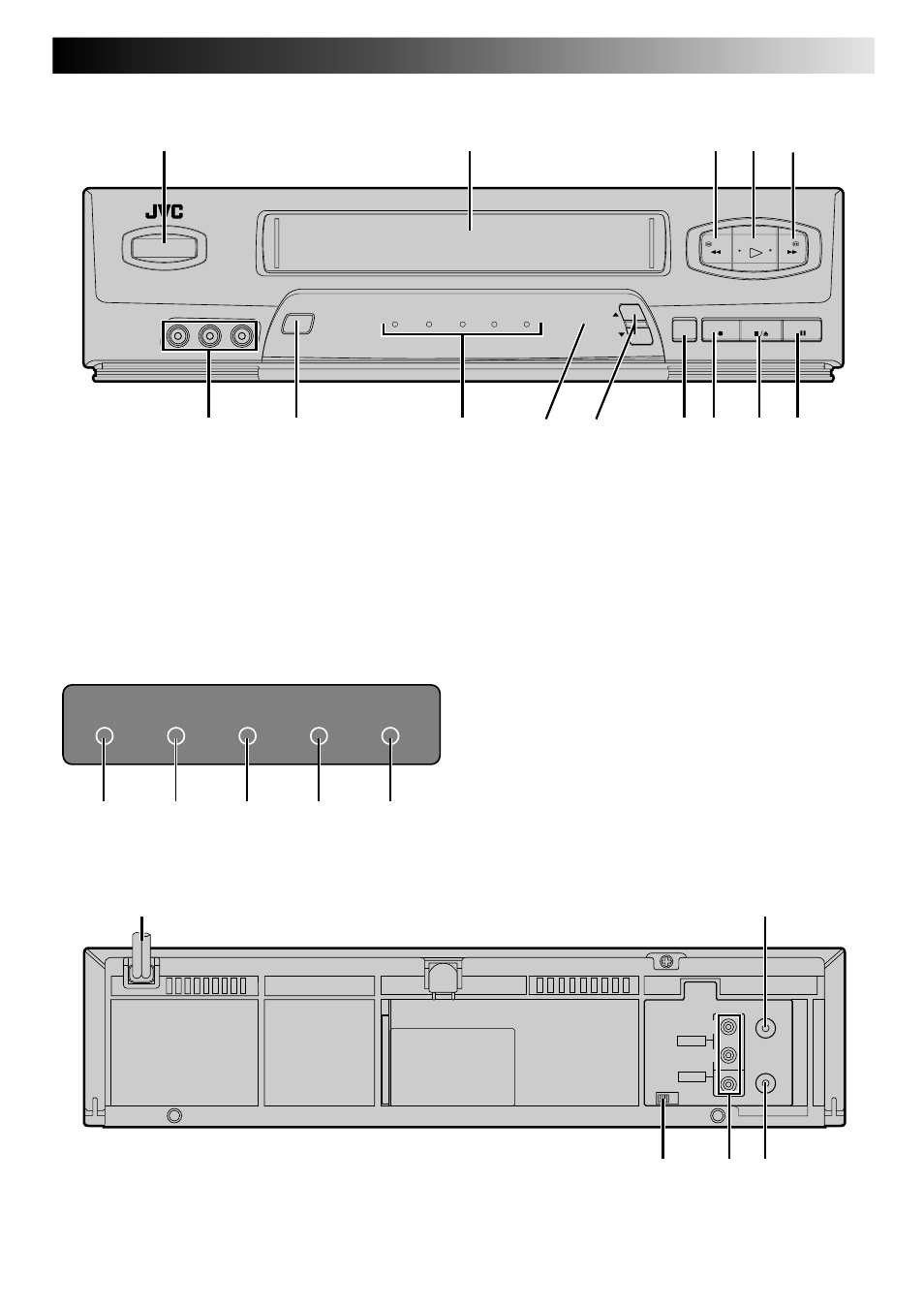

FRONT VIEW
CH
MENU
POWER
VIDEO (MONO)L–AUDIO–R
STOP/EJECT
PAUSE
REC
REW
FF
PLAY
POWER
OK
TV/VCR
TIMER
REC
MTB
1
$
#
! @
8
7
2
3 4 5
6
9
0
1
Power On/Off Button (
੬
pg. 8)
2
Cassette Loading Slot
3
Rewind [REW] Button (
੬
pg. 12)
4
PLAY Button (
੬
pg. 12)
5
Fast-Forward [FF] Button (
੬
pg. 12)
6
VIDEO/AUDIO Input Connectors (
੬
pg. 34)
* The HR-A34U has only one AUDIO input connector.
7
MENU Button (
੬
pg. 8)
8
Front Panel Indicators (See below)
9
Remote Control Sensor
0
Channel [CH]
5∞ Button (
੬
pg. 13)
!
OK Button (
੬
pg. 8)
@
Record [REC] Button (
੬
pg. 13)
#
STOP/EJECT Button (
੬
pg. 12)
$
PAUSE Button (
੬
pg. 14)
1
Power Indicator
2
VCR Mode Indicator (
੬
pg. 22)
3
Timer Mode Indicator (
੬
pg. 25)
4
Recording Mode Indicator (
੬
pg. 13)
5
Multichannel TV Sound Indicators
(HR-A54U only)(
੬
pg. 23)
FRONT PANEL INDICATORS
POWER
TIMER
REC
MTS
TV/VCR
2
3
4
5
1
REAR VIEW
ANT. IN
RF OUT
CH3 CH4
OUT
R
L
AUDIO
VIDEO
1
5
3
2
4
1
Power Cord (
੬
pg. 6)
2
ANT. IN Connector (
੬
pg. 6)
3
Channel 3/4 Switch (
੬
pg. 6)
4
VIDEO/AUDIO Output Connectors (
੬
pg. 33)
* The HR-A34U has only one AUDIO output connector.
5
RF OUT Connector (
੬
pg. 6)
