5 On Screen Display
5.1 OSD Menu Structure
The On Screen Display ( OSD ) is the primary way of controlling and selecting functions in the
JVC HR-1080-PRO system. When first powered up, the JVC HR-1080-PRO will be in a Factory
Default configuration, with English as the OSD language, Component Video as Video Input, and
S/PDIF Audio as Audio input. All other Factory Default parameters are indicated in Table 4.
When the user selects the Factory Reset from the OSD menu, the JVC HR-1080-PRO reloads all
of these default parameters, replacing any adjustments previously made. Certain parameters are
not affected by the Factory Reset and are left in their most recently selected position. These
parameters are: Language, Selected Input, and Selected Audio Input. As indicated in chapter 4,
the Setup Parameters are not affected by Factory Reset.
The JVC HR-1080-PRO remembers all the signal processing parameters on a selected input
basis. When the user powers down or selects a different input, the processing parameters
previously selected are automatically re-established when returning to that input. An Input Reset
sets the currently selected input to its default parameters. (This allows the user to reset a specific
input channel without disturbing selections that affect the entire JVC HR-1080-PRO operation).
A complete view of the OSD menu structure is shown in Table 3 and Table 4.

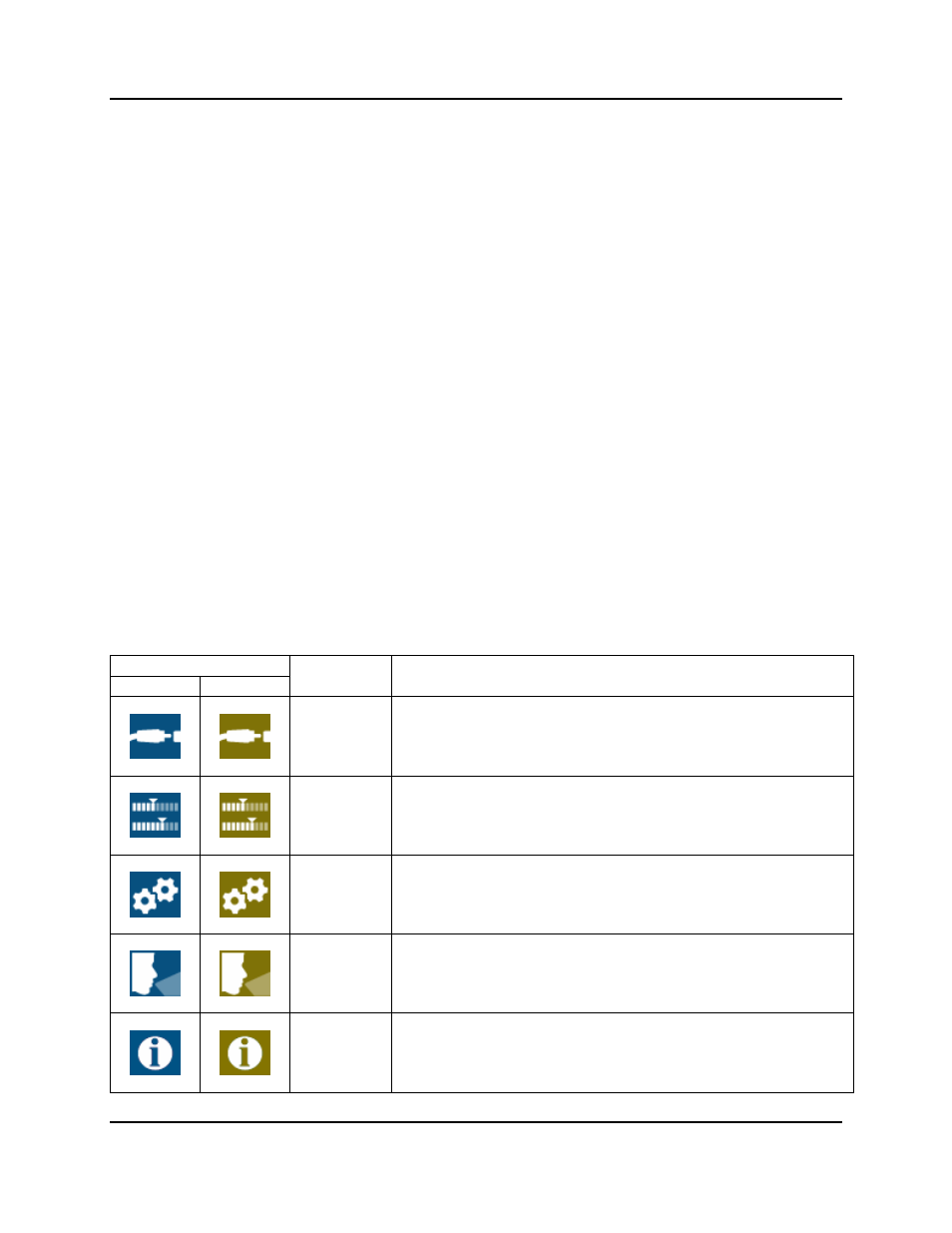

Table 3: OSD Main Menu Structure
Icon
ON OFF
Descriptio
n
Functionality
Inputs Enter this submenu to select the video or audio input.
Enter this menu to adjust the image brightness, contrast,
sharpness, gamma correction, black level, color temperature,
color, hue, tint, and aspect ratio.
Setup
Enter this submenu to review the video system, select the
background color, reset to default settings, and setup the menu
position.
Language Enter this submenu to select the language used by the OSD.
Info
Enter this submenu to view information about the system (input
resolution, horizontal and vertical frequency, output resolution,
horizontal and vertical frequency, firmware revision, FPGA
revision, serial number, and IP address).
