Mains Power Cord supplies power to recorder.

pg. 5

2

AV1 IN/OUT Connector enables AV connection to

TV or second recorder; input recordable when "L-1"

selected.

pg. 5, 35

3

J Terminal (JLIP (Joint Level Interface Protocol)

Connector) enables connection of a personal

computer or similar device to allow computerized

control of the recorder during editing and certain

other operations.

pg. 40

4

SYNCHRO EDIT Connector enables

connection to camcoder equipped with LANC

connector, for easy editing.

pg. 34

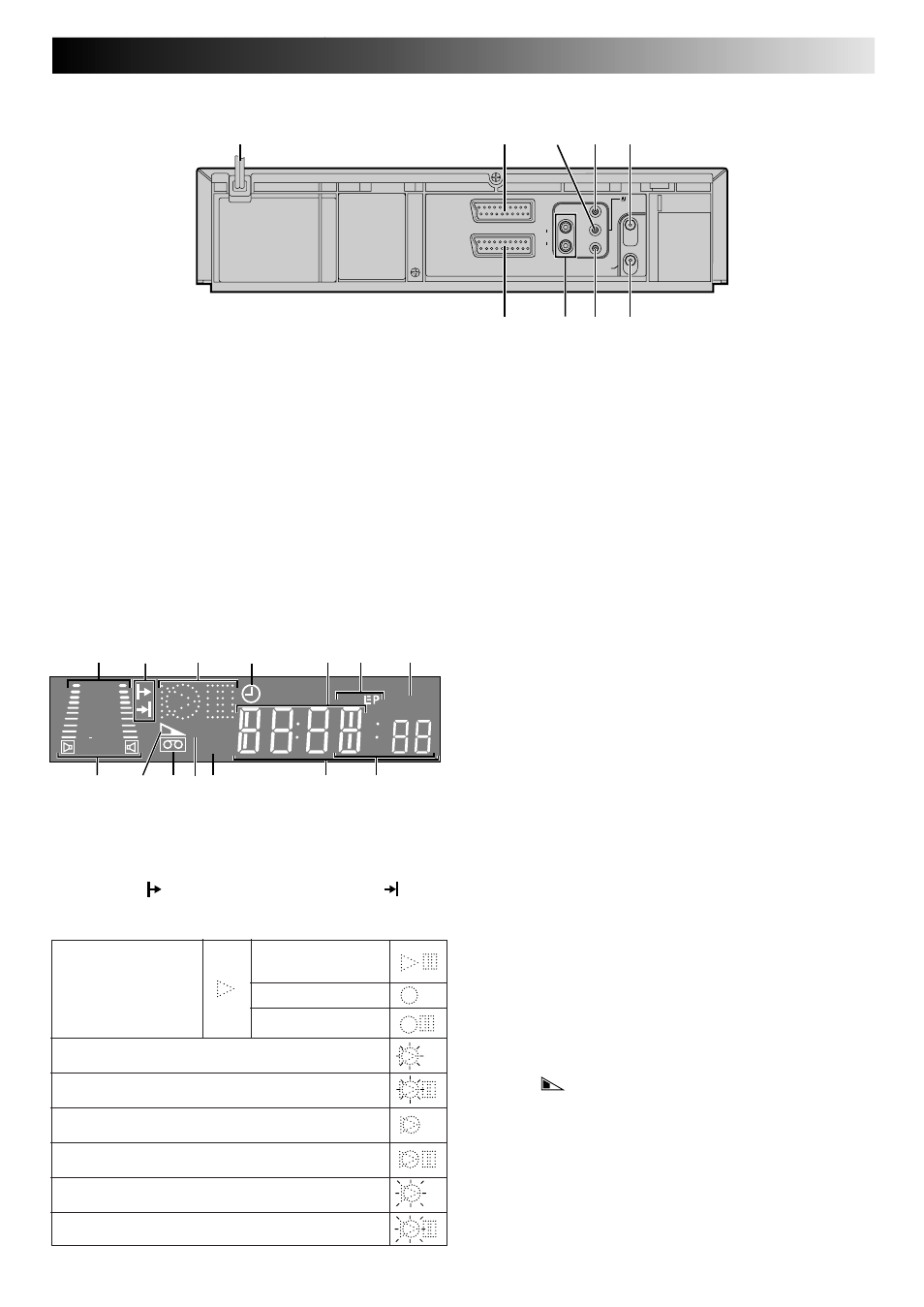

REAR VIEW

DISPLAY PANEL

1

B.E.S.T. Picture System Display lights from bottom to

top while B.E.S.T. is active.

pg. 20

Audio Level Indicator displays audio input and

output levels.

pg. 26

2

Programme Time Indicators show the programme

start time ( ) and the programme stop time ( ) for

timer-recording.

pg. 16

3

Symbolic Mode Indicators

4

"Timer" Indicator lights when ‰ has been pressed to

engage Timer mode.

pg. 15, 17

5

Channel Display shows preset position where the

station currently being received is stored.

Clock Display shows current time.

pg. 8

6

Tape Speed Indicators display mode of recording; light

during Record or Play mode.

pg. 12

* EP is only for NTSC playback.

7

Instant REVIEW Indicator blinks after timer-recording

and shows how many programmes have been timer-

recorded.

pg. 23

8

Audio Mode Indicator displays audio output mode

currently selected.

pg. 27

9

Tape Remaining Time Indicator displays time remaining

on tape when certain buttons are pressed.

pg. 13

0

"Cassette Loaded" Mark lights once a cassette is

inserted; remains lit until cassette ejected.

!

PDC Indicator lights when PDC has been engaged

for timer recording.

pg. 15, 17

* VPS (Video Programme System) recording is not currently

available in the U.K. and not possible with this recorder.

@

VCR Indicator lights when the video recorder is in

the video mode. At this point, the TV automatically

enters AV mode.

pg. 10

#

Counter shows time elapsed since playback or

recording began.

With

displayed, shows time remaining from

current tape position to end of tape (

pg. 13).

Counter, Preset Position*, Clock and Tape Remaining

Time Display appear alternately when – –:– –

(DISPLAY) is pressed.

* Preset Position is not displayed during playback.

$

Mode shows external input mode selected (L-1, L-2 or

F-1).

STILL:
SLOW:

RECORD:

RECORD PAUSE:

PLAY:
FF/REW VARIABLE
SEARCH:

AUDIO DUBBING:

AUDIO DUBBING PAUSE:

INSERT:

INSERT PAUSE:

AUDIO DUBBING INSERT:

AUDIO DUBBING INSERT PAUSE:

5

ANT. IN Connector enables connection of aerial.

pg. 5

6

AV2 IN/DECODER Connector enables connection of

satellite receiver, decoder or second recorder; input

recordable when "L-2" selected.

pg. 28, 35

7

AUDIO OUT (L/R) Connectors enable

connection of audio cassette recorder, TV or second

video recorder for dubbing.

pg. 45

8

Remote PAUSE Connector enables connection to

second recorder equipped with R.A. Edit connector,

or to JVC camcorder equipped with Master Edit

Control, for easy editing.

pg. 33

9

RF OUT Connector enables connection to aerial

terminal of TV receiver.

pg. 5

AV1 IN/OUT

AV2 IN/DECODER

ANT. IN

PAUSE

RF OUT

R

L

AUDIO

OUT

JLIP

SYNCHRO EDIT

2

5

6

8

9

1

7

4

3
