60
SUBSIDIARY INFORMATION (cont.)

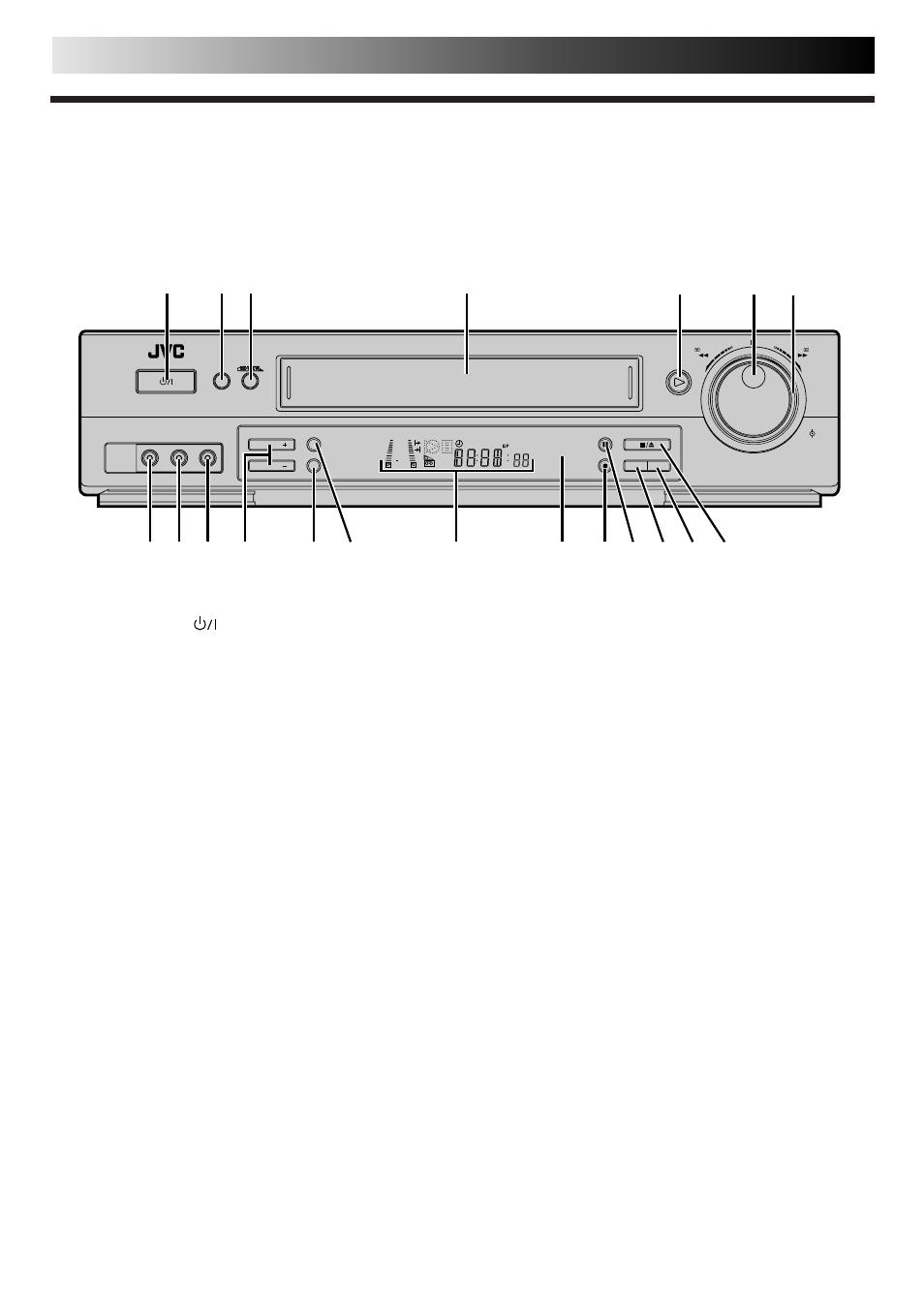

FRONT VIEW
1 STANDBY/ON Button turns recorder on/off
(loading a cassette also turns power on).
2 TIMER Button engages timer-standby mode.
੬
pg. 15, 17
3 REVIEW Button "reviews" timer-recorded
programme.
੬
pg. 23
4 Cassette Loading Slot is where cassette is
inserted; door closes, "cassette loaded" indicator
lights up on front display panel.
5 PLAY Button plays back tape
੬
pg. 10; cancels
Pause, Still, Slow, Search modes.
੬
pg. 11
6 JOG Dial plays back frame by frame during Still
or Play mode.
੬
pg. 11
7 TIME SCAN SHUTTLE Ring rewinds or fast-
forwards tape during Stop mode
੬
pg. 10;
performs forward and reverse slow-motion and
search (TimeScan) during Still or Play mode.
੬
pg. 11, 24
8 VIDEO Input Connector enables easy connection
of video output from another recorder or
camcorder for editing.
੬
pg. 33
9 AUDIO Input Connector [L] enables easy
connection of audio output (mono) from an-
other recorder, camcorder or other source for
editing.
੬
pg. 33
0 AUDIO Input Connector [R] enables easy
connection of audio output (Hi-Fi) from another
recorder, camcorder or other source for editing.
੬
pg. 33
Index
! TV PROG +/– Buttons select a preset position.
੬
pg. 12
@ REC LINK Button enables/disables the Auto
Satellite Prog Rec mode.
੬
pg. 29
# SYNCHRO EDIT Button enables Synchro
Editing mode.
੬
pg. 34
$ Display Panel provides clear view of various
displays and indicators.
੬
pg. 61
% Infrared Beam Receiving Window is where
remote control should be aimed when in use.
^ RECORD Button starts regular recording (press
once), Instant Timer Recording (press twice);
sets duration of ITR.
੬
pg. 12, 13
& PAUSE Button stops tape temporarily during
recording
੬
pg. 12; stops tape temporarily
during playback; plays back frame by frame
with each additional press.
੬
pg. 11
* INSERT Button engages Insert Editing mode
੬
pg. 39
( A. DUB Button engages Audio Dubbing mode.
੬
pg. 37
) STOP/EJECT Button stops tape; ejects tape
during Stop mode.
੬
pg. 10
REW FF
SHUTTLE
SYNCHRO EDIT
TIMER
STANDBY/ON
VIDEO (MONO) L –AUDIO– R
REC LINK
TV PROG
TV PROG
REVIEW SP
VPS/PDC
VCR
+8
4
0
6
15dB
NORM
SLO W SLOW
INSERT A.DUB
JOG
1 2 3
^ ) ( * & ! # @
4 5 6 7
% 8 9 0 $
