INSTALLING YOUR NEW RECORDER (cont.)
Connecting/
Using A Stereo
System
These instructions enable you to connect your video recorder to
your Hi-Fi stereo system (if you have one) and listen to the
soundtrack through the stereo.
MAKE CONNECTIONS
1
Connect the AUDIO OUT L and R connectors on your
video recorder to the AUX IN or TAPE MONITOR
terminals on your stereo system’s receiver or amplifier.
NOTES:
● When connecting your recorder’s audio output connectors to
a stereo amplifier, make sure you connect L and R correctly.
● If stereo or bilingual TV broadcasts are receivable in your
area, this recorder can record them independently of the TV
set and play them back through the connected stereo system.
● When listening to sound through the connected stereo system,
turn the TV’s volume down completely.
CAUTIONS:
● This recorder has a dynamic range of more than 80 dB with
regards to its Hi-Fi audio capability. It is recommended that
you check the maximum level if you are going to listen to the
Hi-Fi audio signals through a stereo amplifier. A sudden surge
in the input level to the speakers may damage them.
● Some speakers and televisions are specially shielded to
prevent television interference. If both are of the non-shielded
type, do not place the speakers adjacent to the TV set as this
can adversely affect the video playback picture.

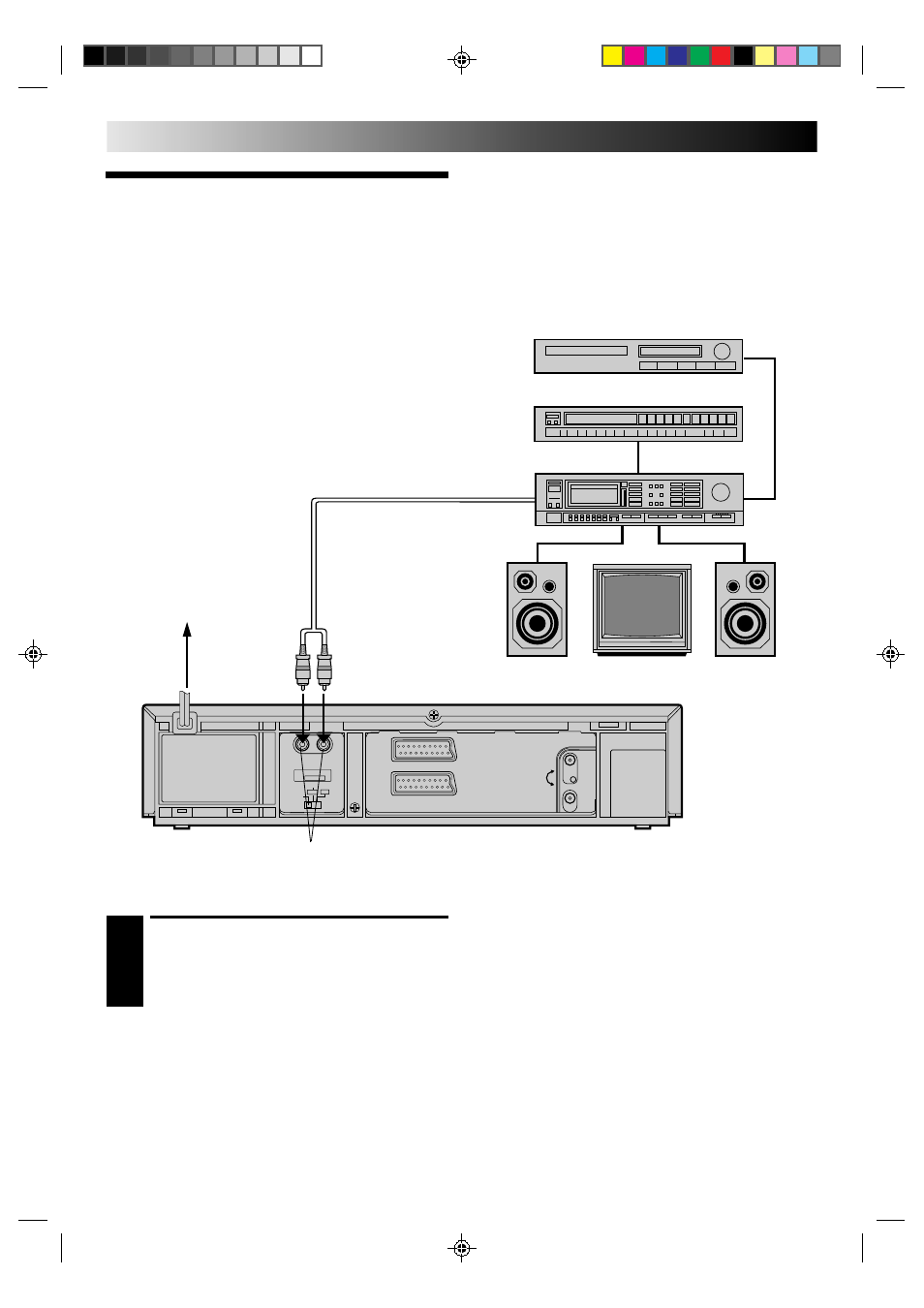

DECODER
